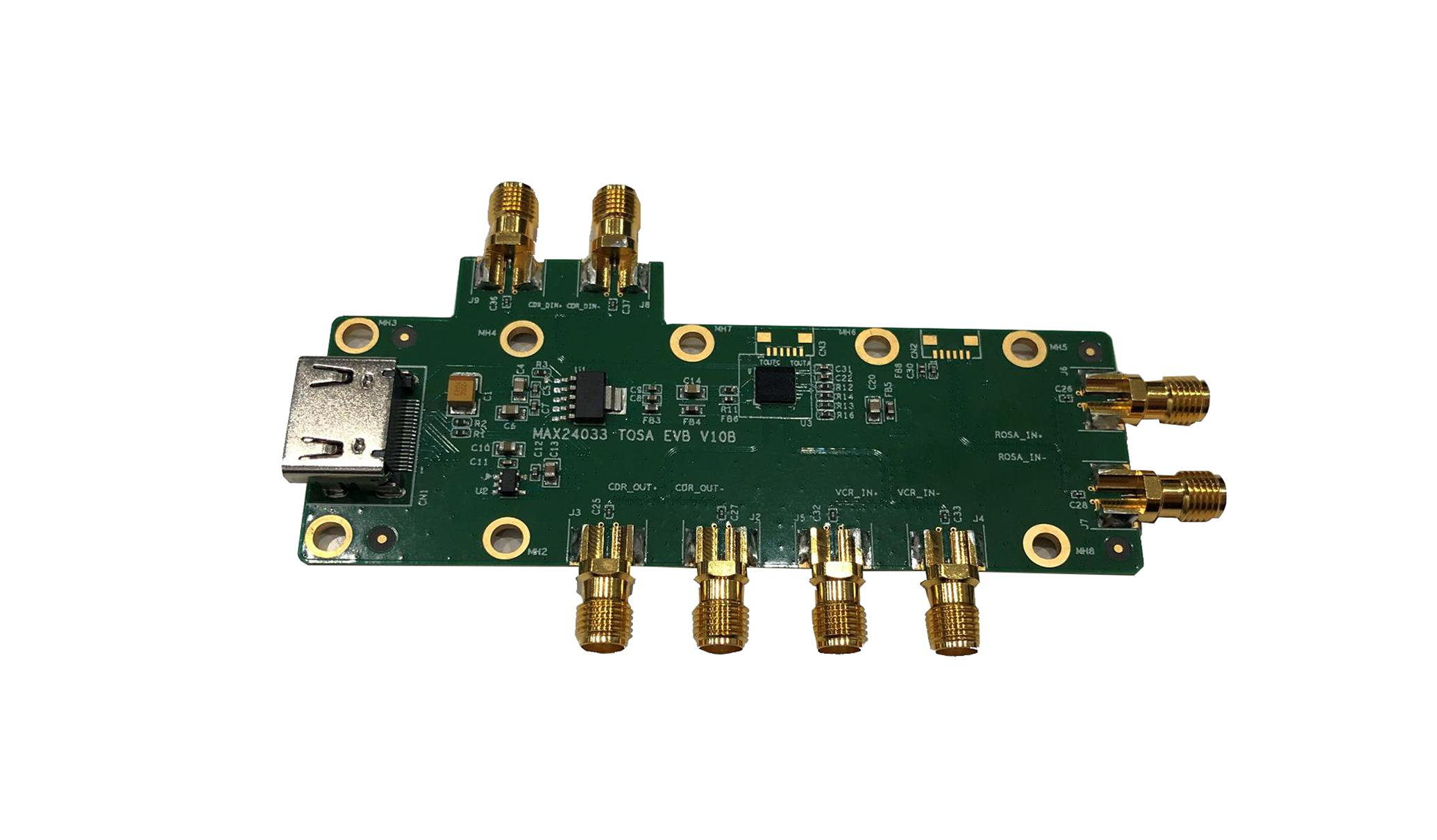

MAX24033 TQSA EVB V10B
The MAX24033 TQSA EVB V10B is a high-performance evaluation board designed for signal amplification and testing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Input Ports | 4 |
| Output Ports | 4 |
| Frequency Range | DC to 6GHz |
| Gain | Adjustable |
| Power Supply Voltage | 5V |
| Interface Type | SMA connectors |
| Dimensions | 100mm x 50mm |
| Operating Temperature Range | -40°C to +85°C |
Applications
Key Features
Datasheet
