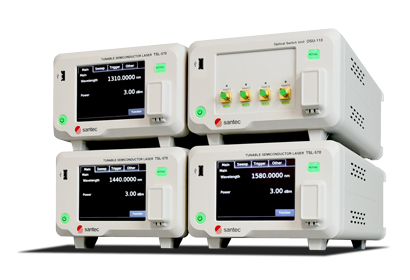

Full-band Tunable Laser System (Full-band TSL)

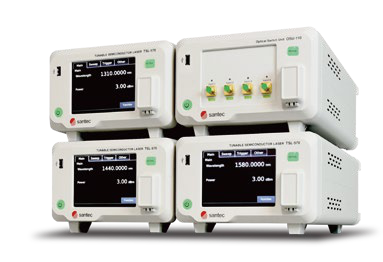

The Full-band TSL is a high-performance tunable laser system that covers the ultra-wide tuning range of 1240 to 1680 nm (O-band to U-band). It combines up to four Santec tunable lasers (TSL-570) with an optical switch module (OSU-110) and control software, offering excellent cost performance, high wavelength accuracy, and fast sweeping for R&D and production environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Tuning Range (nm) | 1240 to 1680 |
| Full Tuning Range (nm) | 440 |
| Insertion Loss (dB) | <3 (typ. 1.5) |
| Insertion Loss Stability (dB) | ±0.01 |
| Repeatability (dB) | ±0.01 |
| Crosstalk (dB) | -55 |
| Maximum Input Power (Optical) (mW) | 300 |
| Return Loss (dB) | >45 |
| Lifetime (cycle) | No wear out |
| Switching Time (ms) | 10 |
| Optical Fiber | PMF |
| Optical Output Connector | FC/APC or SC/APC |
| Communication | GPIB |
| Communication | USB |
| Communication | Ethernet |
| Operating Temperature (°C) | 15 to 35 |
| Operating Humidity (%) | <80 (non-condensing) |
| Power Supply | AC100 to 120/200 to 240V ±10%, 50/60Hz |
| Dimensions (W×H×D) (mm) | 210×130×350 |
| Weight (kg) | 3.5 |
Applications
Key Features
Datasheet
