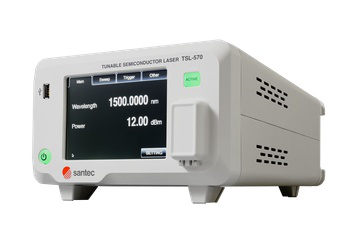

TSL-570 Type U
TSL-570 Type U is a high-performance tunable laser that provides ultra-high output power exceeding +25 dBm. It is designed for applications such as Co-packaged Optics (CPO) and advanced optical testing, offering significant improvements in output power compared to previous systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 1270-1350nm |
| Resolution | 0.1pm |
| Wavelength Stability (typical value) | ≤±1pm |
| Wavelength Stability (Operating Temperature) | ±2pm |
| Wavelength Accuracy | ±0.5pm |
| Wavelength Repeatability | ±0.8pm |
| Wavelength Scanning Speed | 1-200nm/s |
| Fine Adjustment Scanning Range | 10GHz |
| Output Power Peak Value (typical value) | ≥25dBm |
| Full Channel Range | ≥20dBm |
| Dynamic Power Stability (typical value) | ±0.02dB |
| Dynamic Power Stability (typical value @100nm/s) | ±0.04dB |
| Relative Intensity Noise (RIN) (typical value) | -145dB/Hz (1MHz to 3GHz) |
| Coherence Level | 200kHz |
| Coherence Level Measurement Range | 10MHz |
| SMSR (typical value) | ≥45dB |
| STSSER | ≥42dB@1280-1330nm |
| SSSER | ≥30dB |
| Fiber Type | PMF |
| Fiber Connector | FC or SC |
| Fiber Connector | APC |
| Interface | GP-IB (IEEE 488.2), USB, Ethernet |
| Operating Temperature | 15-35°C |
| Storage Temperature | <80°C (non-condensing) |
| Power Supply | AC100 to 120/200 to 240V±10%, 50/60Hz |
| Dimensions (W×D×H) | 440×416×133mm |
| Weight | 13kg |
