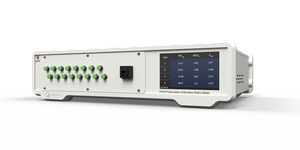

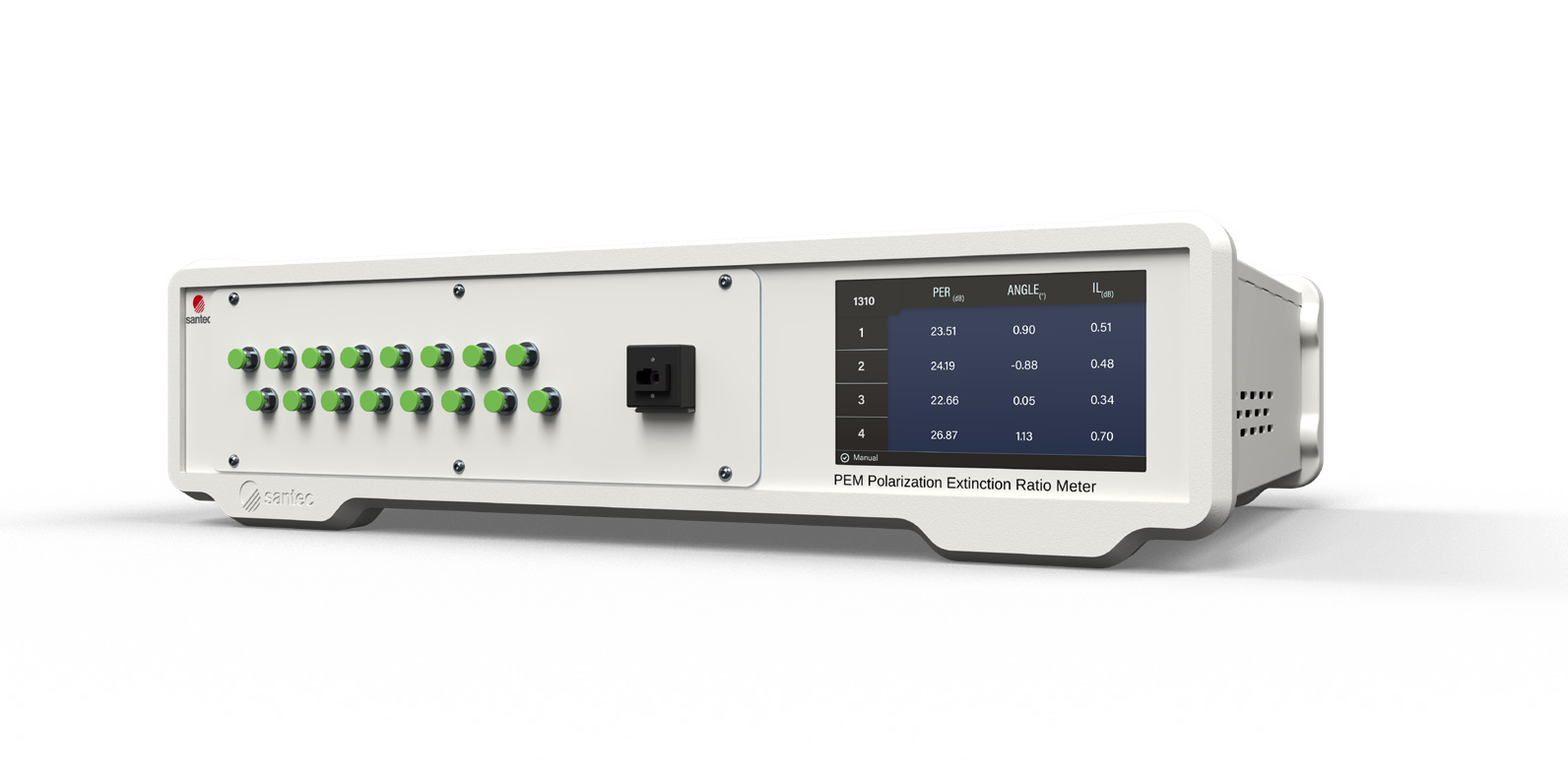

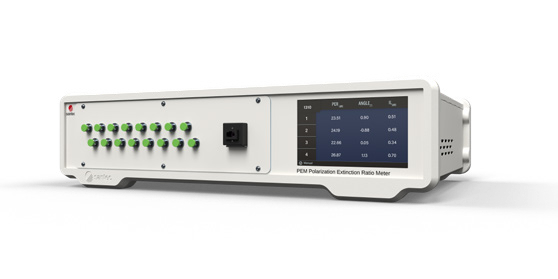

PEM-400 Polarization Extinction Ratio Meter
The PEM-400 is an advanced instrument designed for high-volume testing of polarization extinction ratio (PER) in polarization maintaining (PM) components, such as fiber array units (FAU) and external laser small form-factor pluggables (ELSFP). It offers precise measurement of PER up to 30 dB and angle of polarization, along with insertion loss (IL) and output power of active components.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Fiber Type | Panda PM |
| Output Wavelength (nm) | 1310, 1550 or external input |
| PER Dynamic Range (dB) | >30 |
| PER Accuracy (dB) | ±0.3 |
| PER Resolution (dB) | 0.01 |
| Angle Accuracy (deg) | ±0.1 |
| Angle Resolution (deg) | 0.15 |
| IL Accuracy (dB) | ±0.05 |
| IL Resolution (dB) | 0.01 |
| Absolute Power Accuracy (dB) | ±0.25 |
| Absolute Power Resolution (dB) | 0.01 |
| Measurement Time (s) | <2.5 |
| Remote Interface | USB or Ethernet |
| Display | 5'' touch screen |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Consumption (VA) | 60 maximum |
| Chassis Size | 2U half rack (single or no outputs), 2U full rack (multichannel) |
| Unit Dimensions W×H×D (cm) | 22.5×9×32.5 (half rack), 45×9×32.5 (full rack) |
| Unit Weight (kg) | 8 (half rack), 12 (full rack) |
| Shipping Box Dimensions W×H×D (cm) | 36.5×39×53 (half rack), 45×9×32.5 (full rack) |
| Volumetric Weight (kg) | 15 |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -40 to 70 |
| Humidity (non-condensing) | Maximum 95% RH from 0 to 40°C |
