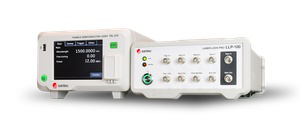

LLP-100

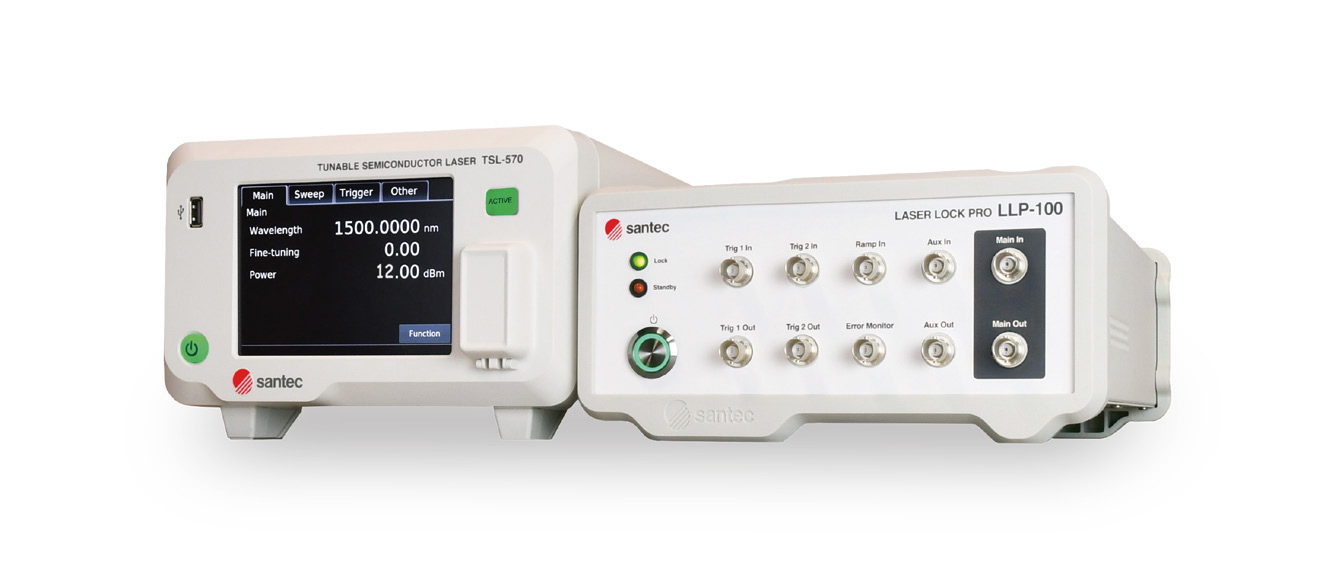

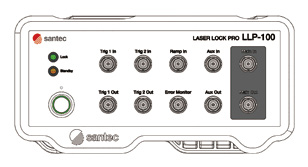

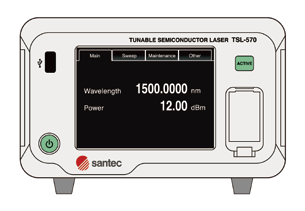

The LLP-100 is a device specifically designed to enhance the performance of Santec external cavity tunable lasers. It serves as a frequency control module to stabilize the laser frequency, making it suitable for applications such as gas absorption spectroscopy, beat frequency stabilization, and Pound-Drever-Hall (PDH) locking. The device is compatible with Santec's TSL-570 tunable laser, providing high-frequency stability and enabling precise measurements in quantum optics, spectroscopy, and other advanced applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Bandwidth (-6dB) | ≥3kHz |
| Phase delay (180 deg) | ≥100kHz |
| Input AC voltage | ±1.25V |
| Main input voltage | ±2.5V |
| Analog input impedance | 50Ω or 100kΩ |
| Modulation input voltage | ±2.5V |
| Trigger input voltage | ±1.5V |
| Trigger output voltage (typical) | 2.0V |
| Fault input voltage | ±3.75V |
| Fault output voltage | 3.3V or 5.0V |
| Trigger input delay | <1μs |
| Trigger output voltage | 3.3V |
| Trigger output delay | <1μs |
| Operating Temperature | 15 to 35°C |
| Power Supply | AC100-120 to 200-240V, 50/60Hz |
| Dimensions (W×D×H) | 240×360×118mm |
| Weight | 5.4kg |
| Communication | USB |
| Operating System | Windows 11/10 (64 bit) |

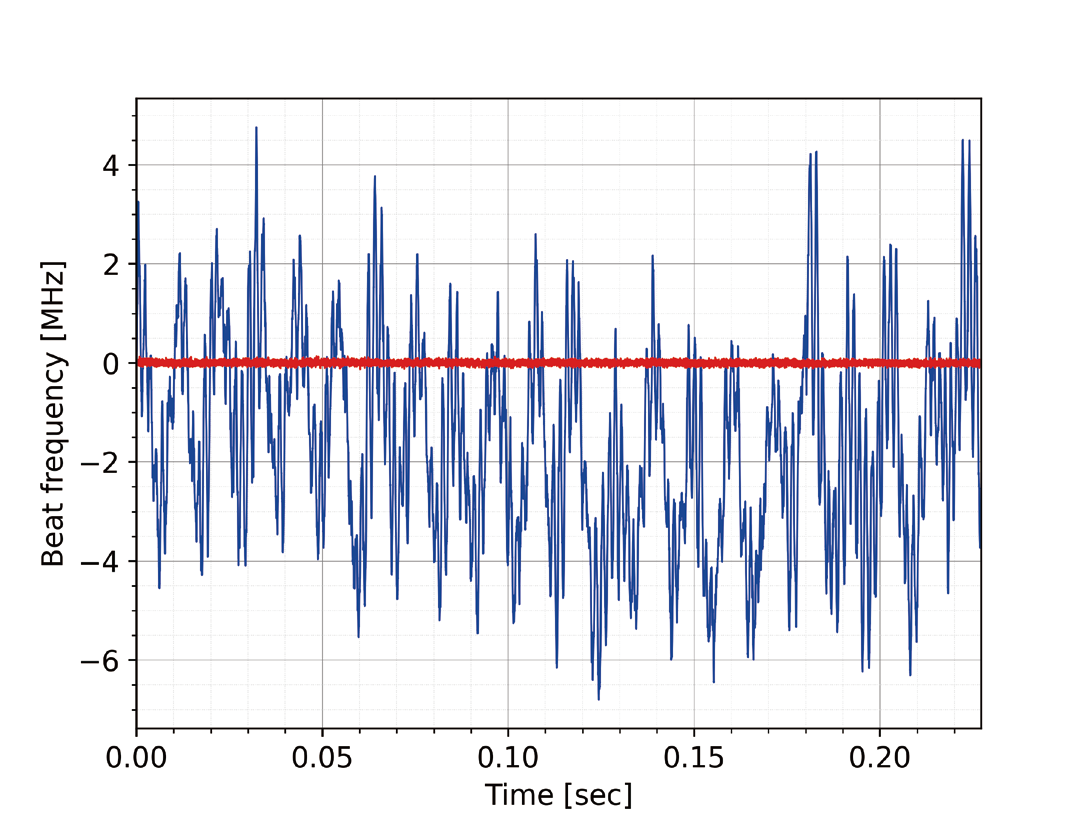

| Frequency stability (50ms, RMS) | <0.04MHz |
| Linewidth | 50kHz |
Applications
Key Features
Datasheet
