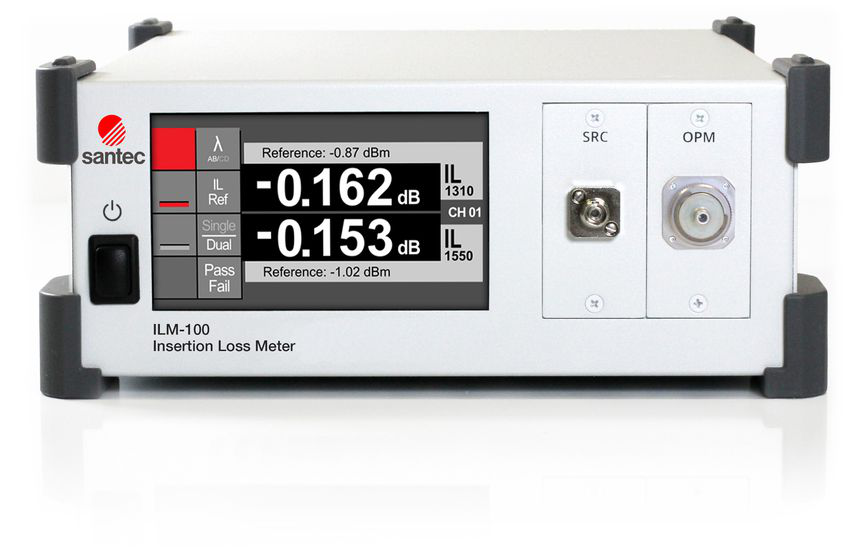

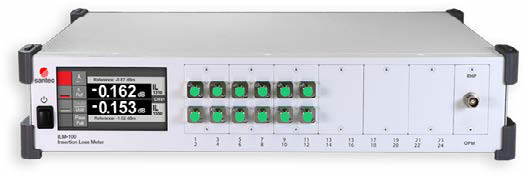

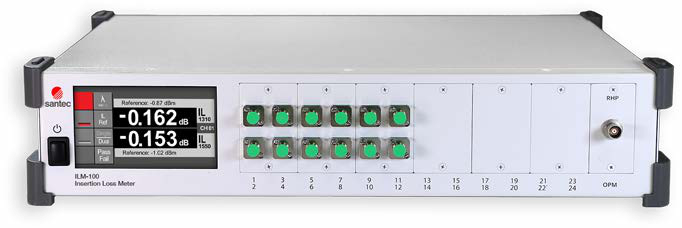

ILM-100 Insertion Loss Meter
The ILM-100 is designed to measure insertion loss for fiber optic components quickly and accurately. It features a built-in stabilized laser source for single-mode applications or LED source for multimode applications. With dual wavelength configuration, insertion loss can be measured for two wavelengths in less than 1 second. The ILM-100 system comes with both USB and Ethernet control for ease of integration into test systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type Single-mode | SMF-28 |
| Fiber Type Multimode | 50/125μm, 62.5/125μm, 100/140μm |
| Wavelength Single-mode | 1310/1490/1550/1625nm |
| Wavelength Multimode | 850/1300nm |
| Source Type Single-mode | FP-LD |
| Source Type Multimode | LED |
| Detector Type | InGaAs |
| Detector Uncertainty | ±0.05dB |
| Insertion Loss | ≤0.05dB |
| Return Loss | ≥60dB |
| Power Supply | AC100-240V |
| Power Consumption | ≤30W |
| Max Channel Count | 24 |
| Unit Dimension (W×H×D) | 425×88×203mm |
| Operating Temperature | 5-40°C |
| Humidity (Non-conditioning) | Maximum 80% RH |
