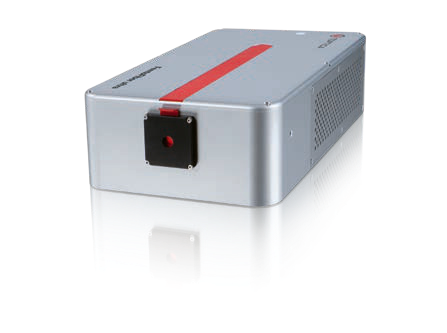

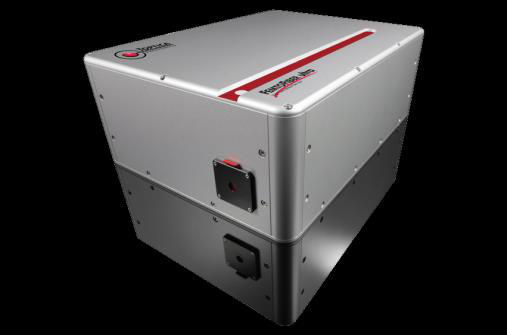

FemtoFiber ultra 780
The FemtoFiber ultra 780 is a high-power ultrafast fiber laser designed for applications requiring femtosecond pulses with high stability and precision.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 780nm |
| Pulse Duration SP | <100fs |
| Pulse Duration Standard | <150fs |
| Pulse Duration HP | <170fs |
| Average Output Power (w. AOM, optional) SP | ≥1000[800]mW |
| Average Output Power (w. AOM, optional) Standard | ≥1000[1000]mW |
| Average Output Power (w. AOM, optional) HP | ≥1500[1200]mW |
| Repetition Rate | 80MHz |
| Motorized Dispersion Precompensation (GDD) | -30,000..0fs² |
| Beam Shape SP | TEM₀₀ M²<1.3 |
| Beam Shape Standard | TEM₀₀ M²<1.2 |
| Linear Polarization | >100:1, vertical |
| Output Coupling | Free space |
| Dimensions Laser Head | 77×165×300mm³ (H×W×D) |
| Weight Laser Head | <5kg |
| Dimensions Supply Unit | 131×484×600mm³ |
| Weight Supply Unit | <20kg |
| Power Supply | 24VDC (AC power supply included) |
| Power Consumption | <150W |
| PC Interface | Ethernet |
| PC Interface | USB |
| Environment Temperature | 19-25°C (operating), 0-40°C (storage and transport) |
| Environment Humidity | Non-condensing |
