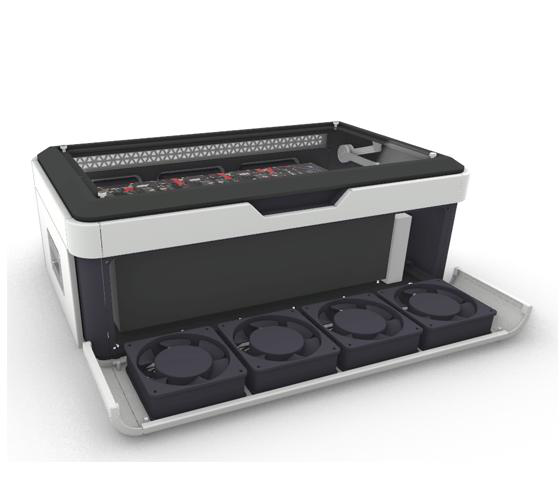

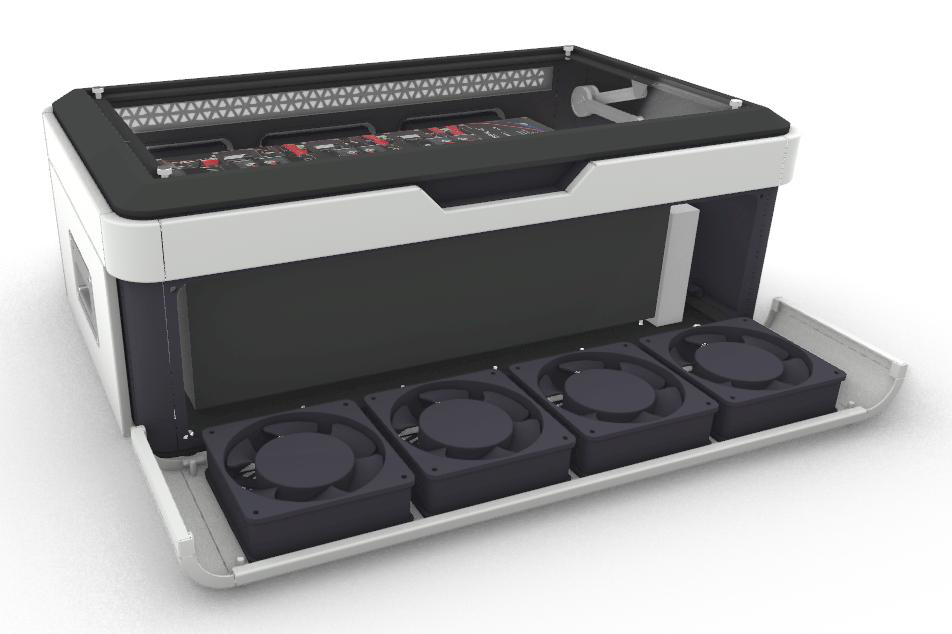

YBHTOL-1000 High-Temperature Operating Life Test Platform

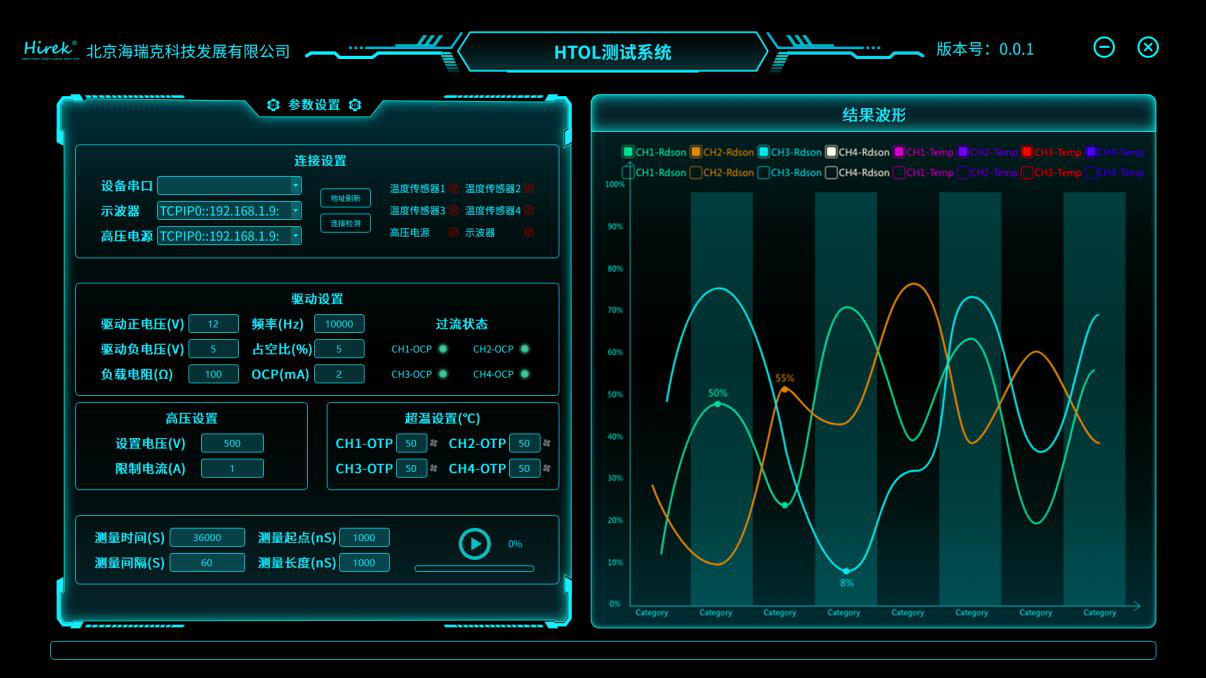

YBHTOL-1000 is a high-temperature operating life (HTOL) test platform designed for reliability testing of semiconductor power devices under high-temperature conditions. It supports dynamic Rdson online testing, temperature monitoring, and flexible pressure conditions.
Save to Favorites
Overview

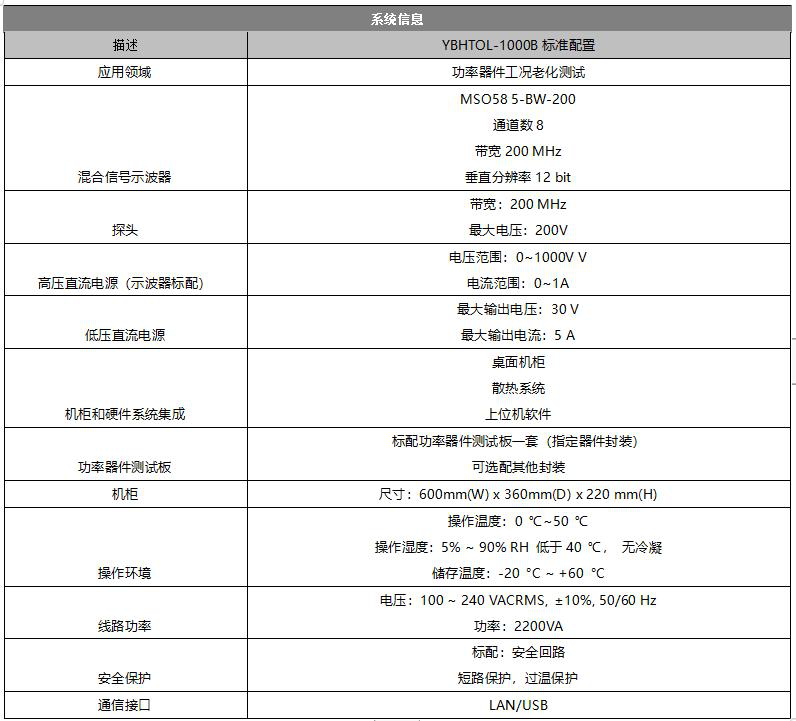

Specifications
| Parameter | Value |
|---|---|
| Maximum Input Voltage | DC-1000V |
| Single Channel Peak Current | 10A |
| Maximum Input Power | 100W×4 |
| Gate Resistance | Inductance-free round resistance |
| Load Resistance | 100Ω power resistance |
| Load Inductance | 100μH (DC 11.2A) |
| Measurement Channels | 4 |
| Measurement RDS(on) Range | 50mΩ~150mΩ |
| OCP Overcurrent Protection | 100mA~2A |
| OTP Cooling Fans | 4 |
| DUT Drive Voltage | ±12V |
| DUT Adapter Board | DFN8×8 package |
| Oscilloscope Interface | Tektronix 3.8mm probe socket×8 |
| Frequency | 1~2MHz |
| Gate Signal Duty Cycle | 1%~99% |
| Infrared Temperature Range | 0~300°C |
| Interface | HV, RS485, AC220V |
| Device Dimensions | 600mm×360mm×220mm |
| Application Field | Power device aging test |
| Probe | Maximum Voltage: 200V |
| High Voltage DC Power | Voltage Range: 0~1000V, Current Range: 0~1A |
| Low Voltage DC Power | Maximum Output Voltage: 30V, Maximum Output Current: 5A |
| Operating Environment | Temperature: 0°C~50°C, Humidity: 5%~90% RH |
| Storage Environment | Temperature: -20°C~60°C |
| Cable Power | 2200VA |
| Communication Interface | LAN/USB |
