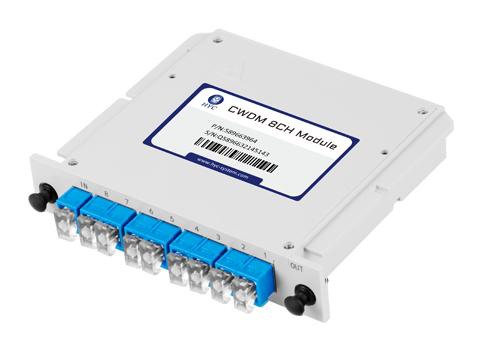

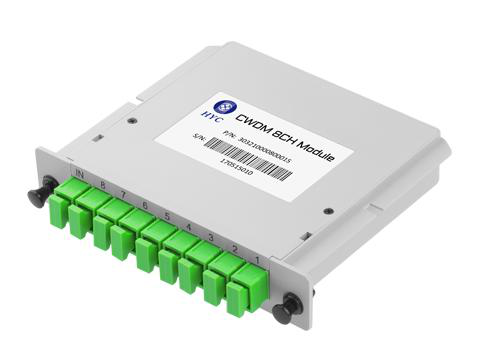

CWDM Card-Type Module
HYC's CWDM plug-in module is a device based on TFF (thin-film filter) technology for wavelength division multiplexing. It features compact structure and high reliability, capable of multiplexing and demultiplexing optical signals of different wavelengths in a single optical fiber. It is widely used in communication systems, campus networks, and WDM systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel Count 4CH | 4 |
| Channel Count 8CH | 8 |
| Channel Count 12CH | 12 |
| Channel Count 16CH | 16 |
| Operating Wavelength (nm) | 1260-1620nm |
| Passband Bandwidth (nm) | ±6.5, ±7.0, ±7.5nm |
| Insertion Loss (dB) 4CH | ≤1.5dB |
| Insertion Loss (dB) 8CH | ≤2.5dB |
| Insertion Loss (dB) 12CH | ≤2.5 (standard module) |
| Insertion Loss (dB) 16CH | ≤3.5 (standard module) |
| Adjacent Channel Isolation (dB) | ≥30dB |
| Non-Adjacent Channel Isolation (dB) | ≥45dB |
| Return Loss (dB) | ≥45dB |
| Directivity (dB) | ≥50dB |
| Temperature Stability (dB) | ≤0.5dB |
| Operating Temperature (°C) | -40~+85°C |
