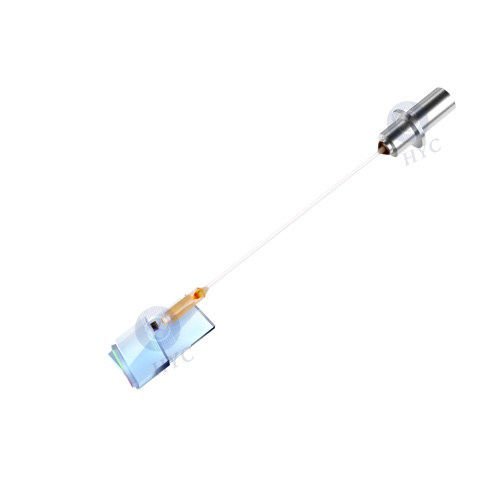

光纤准直器
The fiber optic collimator is a key optical component used to collimate light emitted from optical fibers into parallel beams. It is widely used in optical communication systems, laser systems, and optical measurement applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength Range | 1260-1650nm |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Fiber Type | SMF-28e |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Fiber Diameter | 0.9mm |
Applications
Key Features
Datasheet
