400G RX Integrated Optical Component

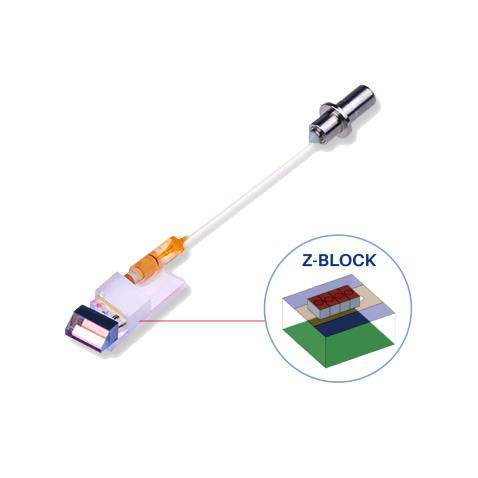

The 400G RX integrated optical component is composed of all optical components at the RX end of high-speed optical modules, including Receptacle, Collimator, Z-block, Lens array, and Prism. It is based on Z-block technology and is designed for high-speed optical module integration.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength Range | 1260-1360 |
| Channels | 4CH |
| Channel Spacing | 20nm (CWDM), 800kHz (LAN-WDM) |
| Center Wavelength L0/L1/L2/L3 | 1271/1291/1311/1331 (CWDM), 1295.56/1300.05/1304.58/1309.14 (LAN-WDM) |
| Passband 1 (dB) | ≥CW±6.5 (CWDM), ≥CW±1.1 (LAN-WDM) |
| Insertion Loss @passband | ≤1.0 |
| IL Uniformity | ≤0.6 |
| Adjacent Channel Isolation | ≥26 |
| Total Crosstalk | ≤25 |
| Return Loss | ≥25 |
| Ripple @passband | ≤0.8 |
| Polarization Dependent Loss @passband | ≤0.25 |
| Output Beam Angle in Air, AOL X | 0±0.5 (CWDM), 9±0.5 (LAN-WDM) |
| Output Beam Angle in Air, AOL Y | 0±0.5 |
| Output Beam Diameter @PD | 11 for reference |
| Output Beam Pitch X | 750±3 |
| Operation Temperature | 0~+75 |
| Storage Temperature | -40~+85 |
