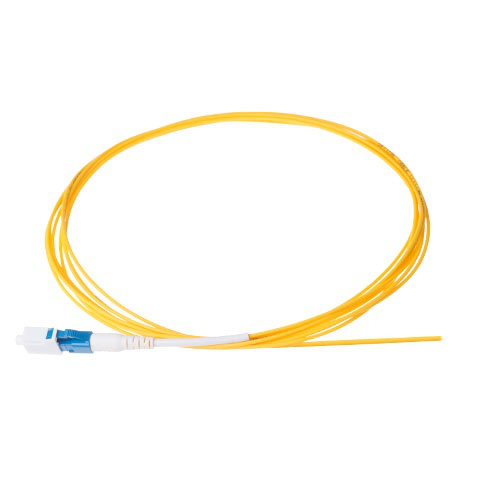

Fiber Optic Pigtail
Fiber optic pigtail is a fiber optic cable with one end terminated with a connector and the other end left open for splicing. It enables active connections between optical fibers and optical devices, ensuring high performance and reliability. HYC offers a wide range of pigtail products with excellent optical performance, stable connection, and customizable options. These pigtails are ideal for data centers, FTTX, and local area network optical communication applications.
Specification Snapshot
Insertion Loss (Grade A)
<0.08dB
Insertion Loss (Grade B)
<0.12dB
Insertion Loss (Grade C)
<0.25dB
Maximum Insertion Loss (97%) Grade A
<0.15dB
Maximum Insertion Loss (97%) Grade B
<0.25dB
Maximum Insertion Loss (97%) Grade C
<0.5dB
Request a Quote
Download Datasheet
Overview

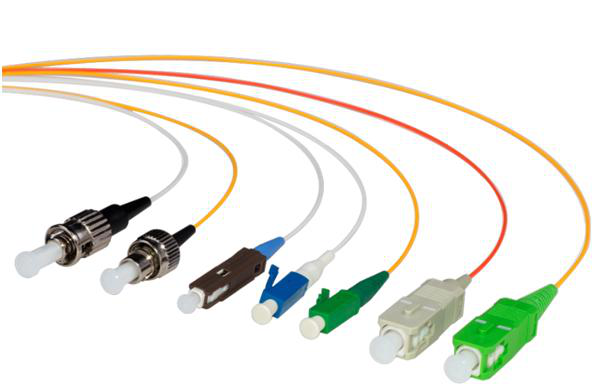

Fiber optic pigtail is a fiber optic cable with one end terminated with a connector and the other end left open for splicing. It enables active connections between optical fibers and optical devices, ensuring high performance and reliability. HYC offers a wide range of pigtail products with excellent optical performance, stable connection, and customizable options. These pigtails are ideal for data centers, FTTX, and local area network optical communication applications.
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (Grade A) | <0.08dB |
| Insertion Loss (Grade B) | <0.12dB |
| Insertion Loss (Grade C) | <0.25dB |
| Maximum Insertion Loss (97%) Grade A | <0.15dB |
| Maximum Insertion Loss (97%) Grade B | <0.25dB |
| Maximum Insertion Loss (97%) Grade C | <0.5dB |
| Return Loss (UPC) | >50dB |
| Return Loss (APC) | >60dB |
| Return Loss (PC) | >30dB |
| Mating Durability | 500times |
| Operating Temperature | -40°C~+85°C |
| Applicable Fiber | OS1/OS2, OM1/OM2/OM3/OM4/OM5 |
Applications
1. Data centers 2. FTTX 3. Local area networks
Key Features
1. Low insertion loss 2. High reliability and stability 3. Easy operation and installation 4. Compliant with GR326 or IEC 61300-2 standards
Datasheet
Product Datasheet
PDF
Supplier Information
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components.
Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery.
The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications.
The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
