SC Secure Latching Connector

SC Secure Latching Connector

Supplier
Hyc-system
Part Number
SC Secure Latching Connector
Category
Optical Networking Accessories
Origin
China

The SC Secure Latching Connector is designed for high-security networks, offering five different locking options and color-coded connections for easy identification. It complies with FOCIS-3/TIA-604-3, IEC 61754-4, and GR326-core standards, ensuring reliability and safety.

Specification Snapshot
Insertion Loss UPC Single-mode
<0.3dB
Insertion Loss APC Single-mode
<0.3dB
Insertion Loss PC Multi-mode
<0.3dB
Return Loss UPC Single-mode
>50dB
Return Loss APC Single-mode
>60dB
Return Loss PC Multi-mode
>30dB
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The SC Secure Latching Connector is designed for high-security networks, offering five different locking options and color-coded connections for easy identification. It complies with FOCIS-3/TIA-604-3, IEC 61754-4, and GR326-core standards, ensuring reliability and safety.

Specifications

ParameterValue
Insertion Loss UPC Single-mode<0.3dB
Insertion Loss APC Single-mode<0.3dB
Insertion Loss PC Multi-mode<0.3dB
Return Loss UPC Single-mode>50dB
Return Loss APC Single-mode>60dB
Return Loss PC Multi-mode>30dB
Mating Durability100 times
Operating Temperature-40°C~+85°C

Applications

1. Military networks 2. Government networks 3. Financial networks 4. Power networks 5. Solar networks 6. Optical communication equipment

Key Features

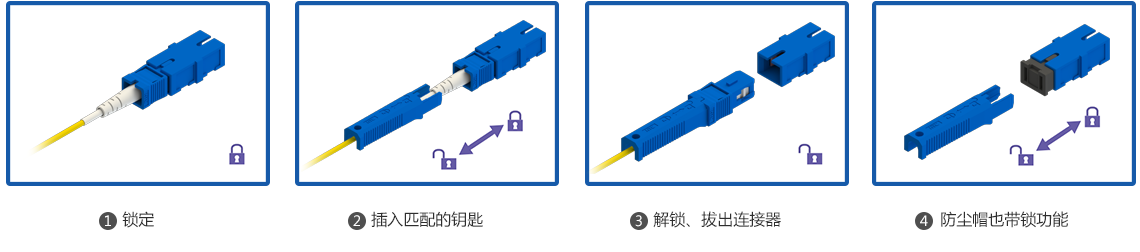

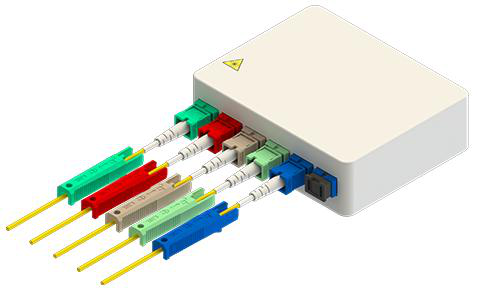

1. Suitable for high-security networks 2. Offers five different locking options and color-coded connections 3. Compatible with 2.0/3.0mm optical cables 4. Complies with FOCIS-3/TIA-604-3, IEC 61754-4, and GR326-core standards 5. Meets RoHS/REACH environmental requirements and UL94-V0 flame retardant rating 6. Compatible with standard SC adapters

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Hy
Hyc-system
View Supplier →
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components. Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery. The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications. The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
