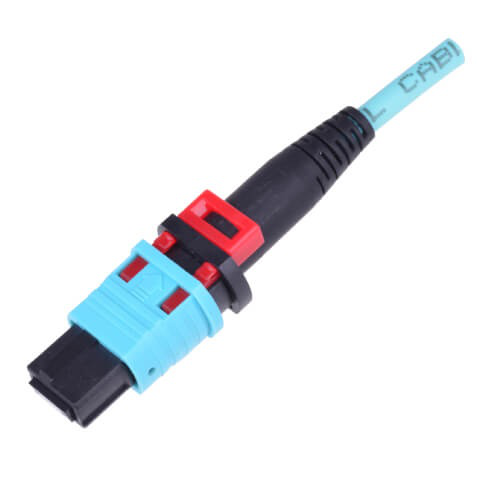

Locking MPO Fiber Optic Connector

Locking MPO Fiber Optic Connector

Supplier
Hyc-system
Part Number
MPO带锁光纤连接器
Category
Optical Networking Accessories
Origin
China

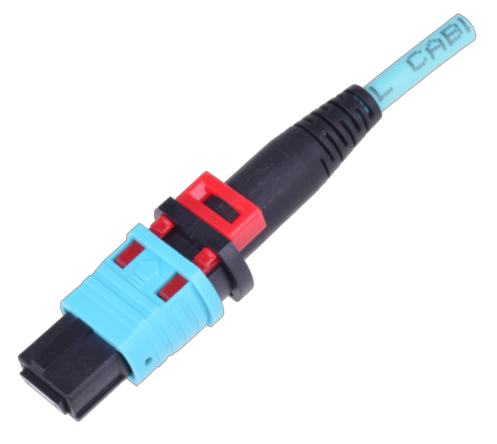

The MPO fiber optic connector is a device used for detachable (active) connections between optical fibers and optical fibers. It aligns the two fiber ends precisely to maximize the coupling efficiency of the emitted light from the transmitting fiber to the receiving fiber. This connector is equipped with a locking mechanism that ensures stable connection with optical modules, preventing accidental disconnection and reducing the risk of contamination at the connector end.

Specification Snapshot
Insertion Loss (dB) MTP/MPO (超极级) SM 8F,12F
≤0.25dB
Insertion Loss (dB) MTP/MPO (超极级) SM 24F
≤0.35dB
Insertion Loss (dB) MTP/MPO (超极级) MM 8F,12F,16F,24F,32F
≤0.25dB
Insertion Loss (dB) MTP/MPO (低极级) SM 8F,12F
≤0.35dB
Insertion Loss (dB) MTP/MPO (低极级) SM 24F
≤0.50dB
Insertion Loss (dB) MTP/MPO (低极级) MM 8F,12F,16F,24F,32F
≤0.35dB
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The MPO fiber optic connector is a device used for detachable (active) connections between optical fibers and optical fibers. It aligns the two fiber ends precisely to maximize the coupling efficiency of the emitted light from the transmitting fiber to the receiving fiber. This connector is equipped with a locking mechanism that ensures stable connection with optical modules, preventing accidental disconnection and reducing the risk of contamination at the connector end.

Specifications

ParameterValue
Insertion Loss (dB) MTP/MPO (超极级) SM 8F,12F≤0.25dB
Insertion Loss (dB) MTP/MPO (超极级) SM 24F≤0.35dB
Insertion Loss (dB) MTP/MPO (超极级) MM 8F,12F,16F,24F,32F≤0.25dB
Insertion Loss (dB) MTP/MPO (低极级) SM 8F,12F≤0.35dB
Insertion Loss (dB) MTP/MPO (低极级) SM 24F≤0.50dB
Insertion Loss (dB) MTP/MPO (低极级) MM 8F,12F,16F,24F,32F≤0.35dB
Insertion Loss (dB) MTP/MPO (标准级) SM 8F,12F≤0.70dB
Insertion Loss (dB) MTP/MPO (标准级) SM 24F≤0.70dB
Insertion Loss (dB) MTP/MPO (标准级) MM 8F,12F,16F,24F,32F≤0.70dB
Return Loss (dB) MTP/MPO (超极级) SM≥60dB
Return Loss (dB) MTP/MPO (超极级) MM≥20dB
Return Loss (dB) MTP/MPO (低极级) SM≥55dB
Return Loss (dB) MTP/MPO (低极级) MM≥20dB
Return Loss (dB) MTP/MPO (标准级) SM≥55dB
Return Loss (dB) MTP/MPO (标准级) MM≥20dB
Operating Temperature-25°C~+70°C
Applicable Fiber MTP/MPO (超极级)12F,24F
Applicable Fiber MTP/MPO (低极级)16F,32F
Applicable Fiber MTP/MPO (标准级)OS2/OM3/OM4/OM5

Applications

1. Telecommunications networks 2. CATV networks 3. Internet networks 4. Optical communication equipment

Key Features

1. Low insertion loss 2. High reliability 3. High stability 4. Compatible with optical modules for stable connection 5. RoHS compliant 6. Suitable for patch cord applications

Datasheet

Product Datasheet
PDF
Download
