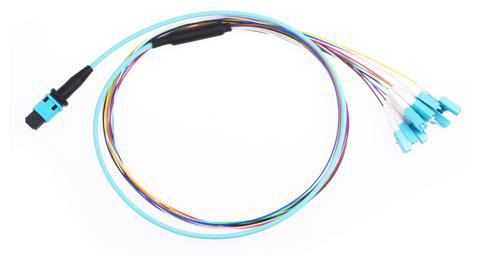

MPO/MTP Fanout Cable
MPO/MTP fanout cables consist of trunk cables, fanout units, and connectors. They are designed for high-density optical fiber connections, offering stable and reliable performance. These cables are widely used in backbone networks, data centers, and other optical network scenarios.
Specification Snapshot
Insertion Loss (UPC)
<0.3dB
Insertion Loss (APC)
<0.3dB
Insertion Loss (PC)
<0.3dB
Insertion Loss (MTP/MPO Standard SM)
<0.7dB
Insertion Loss (MTP/MPO Standard MM)
<0.7dB
Insertion Loss (MTP/MPO Low Loss SM)
<0.35dB
Request a Quote
Download Datasheet
Overview
MPO/MTP fanout cables consist of trunk cables, fanout units, and connectors. They are designed for high-density optical fiber connections, offering stable and reliable performance. These cables are widely used in backbone networks, data centers, and other optical network scenarios.
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (UPC) | <0.3dB |
| Insertion Loss (APC) | <0.3dB |
| Insertion Loss (PC) | <0.3dB |
| Insertion Loss (MTP/MPO Standard SM) | <0.7dB |
| Insertion Loss (MTP/MPO Standard MM) | <0.7dB |
| Insertion Loss (MTP/MPO Low Loss SM) | <0.35dB |
| Insertion Loss (MTP/MPO Low Loss MM) | <0.5dB |
| Return Loss (UPC) | >50dB |
| Return Loss (APC) | >60dB |
| Return Loss (PC) | >30dB |
| Return Loss (MTP/MPO Standard SM) | >55dB |
| Return Loss (MTP/MPO Standard MM) | >20dB |
| Return Loss (MTP/MPO Low Loss SM) | >55dB |
| Return Loss (MTP/MPO Low Loss MM) | >20dB |
| Mating Durability | 500 times |
| Operating Temperature | -25°C~70°C |
| Applicable Fiber | OS2/OM1/OM2/OM3/OM4 |
Applications
1. Data centers 2. Optical distribution networks 3. Backbone networks
Key Features
1. Low insertion loss 2. High repeatability and stability 3. MPO/MTP connectors with precise alignment 4. Compliant with GR326 or IEC 61300-2 standards
Datasheet
Product Datasheet
PDF
Supplier Information
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components.
Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery.
The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications.
The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
