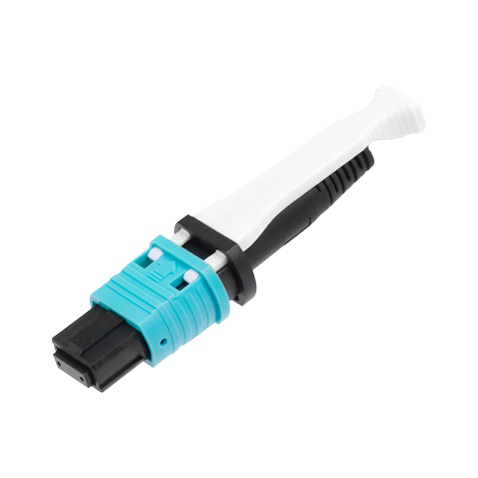

MPO Fiber Optic Connector

MPO Fiber Optic Connector

Supplier
HycSystem
Part Number
MPO Fiber Optic Connector
Category
Optical Networking Accessories
Origin
China

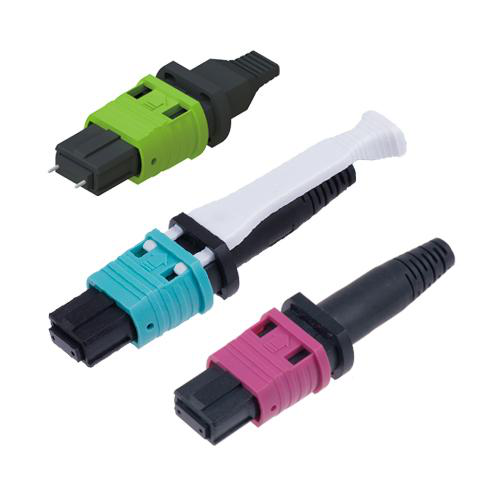

MPO fiber optic connectors are devices used for detachable (movable) connections between optical fibers. They align the two fiber ends precisely to maximize the coupling of optical energy into the fiber and minimize energy loss. These connectors are designed with a pull tab, making them suitable for high-density installation environments.

Specification Snapshot
Applicable Round Cable Diameter
3.0~3.6mm
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

MPO fiber optic connectors are devices used for detachable (movable) connections between optical fibers. They align the two fiber ends precisely to maximize the coupling of optical energy into the fiber and minimize energy loss. These connectors are designed with a pull tab, making them suitable for high-density installation environments.

Specifications

ParameterValue
Insertion Loss (dB) MTP/MPO (超低损)SM: ≤0.25dB, MM: ≤0.35dB
Insertion Loss (dB) MTP/MPO (低损)SM: ≤0.35dB, MM: ≤0.60dB
Insertion Loss (dB) MTP/MPO (特损)SM: ≤0.70dB, MM: ≤0.70dB
Return Loss (dB) MTP/MPO (超低损)SM: ≥56dB, MM: ≥20dB
Return Loss (dB) MTP/MPO (低损)SM: ≥56dB, MM: ≥20dB
Return Loss (dB) MTP/MPO (特损)SM: ≥56dB, MM: ≥20dB
Operating Temperature-25°C~+70°C
Applicable FiberOS2/OM1/OM2/OM3/OM4/OM5
Applicable Round Cable Diameter3.0~3.6mm
Applicable Fiber Count12C/24C

Applications

1. Telecommunications networks 2. CATV networks 3. Internet networks 4. Optical communication equipment

Key Features

1. Low insertion loss 2. High repeatability 3. High stability 4. Suitable for high-density applications 5. Compliant with ROHS 6. Compatible with 3.0~3.6mm round cables and 12C/24C fiber counts

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Hy
HycSystem
View Supplier →
<p>Guangdong Yiyuantong Technology Co., Ltd. (HYC) was founded in 2000 in Shenzhen, China, and moved to Qingyuan, Guangdong in 2014. HYC is an influential passive optical communication device ODM/JDM manufacturer in the industry, focusing on providing design, R&D, manufacturing, sales and service of basic passive optical components. The company adheres to the concept of 'quality manufacturing and refined operation', with large-scale production and strict testing standards, continuously improving product manufacturing processes to achieve efficient and high-capacity output, providing customers with capacity that effectively matches demand and rapid response services. Actively promoting global industrial layout, relying on domestic Qingyuan production base and overseas Thailand production base, together with Shenzhen marketing R&D center and global sales center, building a unique competitive independent R&D, production and sales system. The company mainly produces optical interconnect products, high-speed transceiver modules & CPO optical components, multi-core fiber components, PLC splitters, WDM and other passive optical devices, which are widely used in AI, cloud computing, data center interconnection, fiber access, 5G/6G mobile communications and other fields. The company has over 2,000 employees, an international-level R&D team, and products are exported to Europe, Asia, America and other markets.</p>
