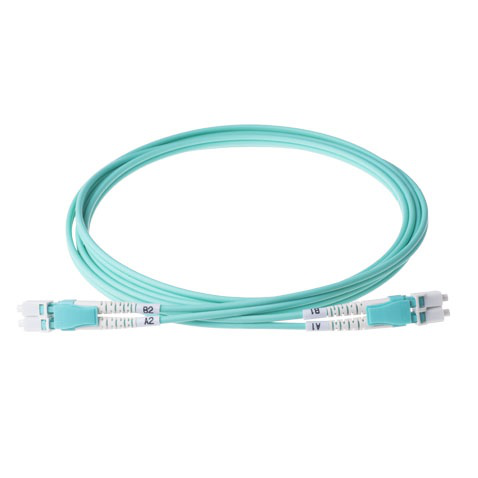

LC Dual-core Fiber Optic Patch Cord
LC dual-core fiber optic patch cord is a cable that connects two LC fiber optic connectors, enabling signal transmission and reception. It is suitable for various application scenarios, such as data centers, FTTX, and local area networks.
Specification Snapshot
Insertion Loss (Grade A)
≤0.08dB
Insertion Loss (Grade B)
≤0.12dB
Insertion Loss (Grade C)
≤0.25dB
Return Loss (PC)
≥50dB
Return Loss (UPC)
≥50dB
Return Loss (APC)
≥60dB
Request a Quote
Download Datasheet
Overview

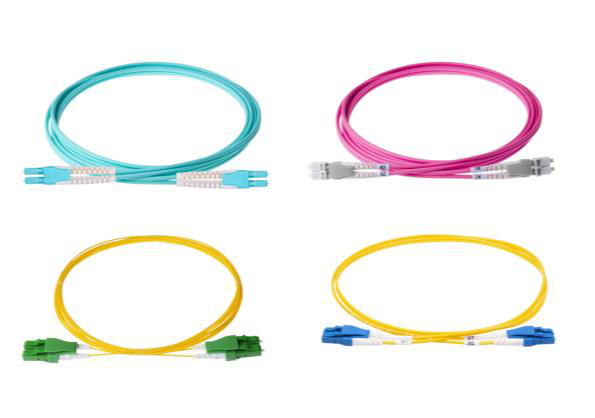

LC dual-core fiber optic patch cord is a cable that connects two LC fiber optic connectors, enabling signal transmission and reception. It is suitable for various application scenarios, such as data centers, FTTX, and local area networks.
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (Grade A) | ≤0.08dB |
| Insertion Loss (Grade B) | ≤0.12dB |
| Insertion Loss (Grade C) | ≤0.25dB |
| Return Loss (PC) | ≥50dB |
| Return Loss (UPC) | ≥50dB |
| Return Loss (APC) | ≥60dB |
| Mating Durability | 500times |
| Operating Temperature | 40°C~85°C |
| Applicable Fiber | OS1/OS2, OM1/OM2/OM3/OM4/OM5 |
Applications
1. Data centers 2. FTTX 3. Local area networks
Key Features
1. Low insertion loss 2. High repeatability and stability 3. Easy operation and installation 4. Complies with GR326 or IEC 61300-2 standards
Datasheet
Product Datasheet
PDF
Supplier Information
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components.
Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery.
The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications.
The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
