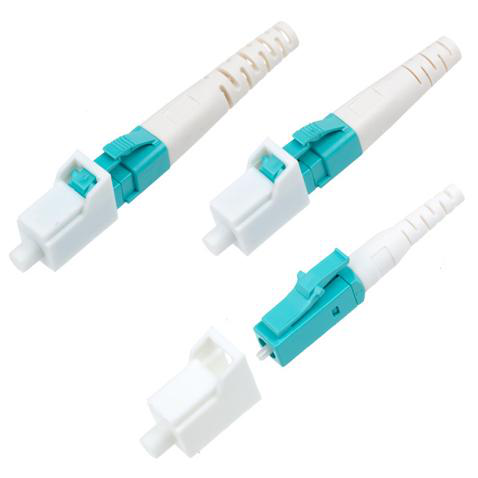

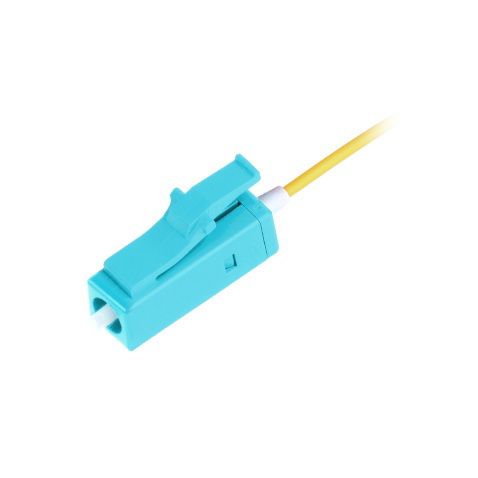

LC Single-mode Fiber Optic Connector

LC Single-mode Fiber Optic Connector

Supplier
HycSystem
Part Number
LC Single-mode Fiber Optic Connector
Category
Optical Networking Accessories
Origin
China

The fiber optic connector is a device that can be detachable (movable) connected between optical fibers and optical fibers. It precisely connects the two end faces of the optical fiber to maximize the light energy output from the transmitting optical fiber and couple it to the receiving optical fiber.

Specification Snapshot
Insertion Loss (Standard)
<0.3dB
Insertion Loss (Typical)
<0.15dB
Return Loss (UPC)
>55dB
Return Loss (APC)
>65dB
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The fiber optic connector is a device that can be detachable (movable) connected between optical fibers and optical fibers. It precisely connects the two end faces of the optical fiber to maximize the light energy output from the transmitting optical fiber and couple it to the receiving optical fiber.

Specifications

ParameterValue
Insertion Loss (Standard)<0.3dB
Insertion Loss (Typical)<0.15dB
Return Loss (UPC)>55dB
Return Loss (APC)>65dB
Fiber Outer Diameter (Single-mode)125.5μm
Fiber Outer Diameter (Multi-mode)127μm
Connection Performance500 times <0.3dB
Operating Temperature-40°C~+85°C
Applicable Fiber (Single-mode)PC/APC(9/125μm)
Applicable Fiber (Multi-mode)PC(50/125μm,62.5/125μm)

Applications

1. Telecommunications networks 2. CATV networks 3. LAN networks 4. Optical communication equipment

Key Features

1. Low insertion loss 2. High repeatability 3. High stability 4. Easy operation 5. ROHS compliant

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Hy
HycSystem
View Supplier →
<p>Guangdong Yiyuantong Technology Co., Ltd. (HYC) was founded in 2000 in Shenzhen, China, and moved to Qingyuan, Guangdong in 2014. HYC is an influential passive optical communication device ODM/JDM manufacturer in the industry, focusing on providing design, R&D, manufacturing, sales and service of basic passive optical components. The company adheres to the concept of 'quality manufacturing and refined operation', with large-scale production and strict testing standards, continuously improving product manufacturing processes to achieve efficient and high-capacity output, providing customers with capacity that effectively matches demand and rapid response services. Actively promoting global industrial layout, relying on domestic Qingyuan production base and overseas Thailand production base, together with Shenzhen marketing R&D center and global sales center, building a unique competitive independent R&D, production and sales system. The company mainly produces optical interconnect products, high-speed transceiver modules & CPO optical components, multi-core fiber components, PLC splitters, WDM and other passive optical devices, which are widely used in AI, cloud computing, data center interconnection, fiber access, 5G/6G mobile communications and other fields. The company has over 2,000 employees, an international-level R&D team, and products are exported to Europe, Asia, America and other markets.</p>
