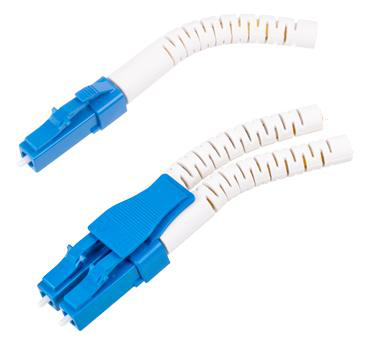

LC Integrated Connector

LC Integrated Connector

Supplier
HycSystem
Part Number
LC Integrated Connector
Category
Optical Networking Accessories
Origin
China

This is an integrated structure design with enhanced tensile strength. The single connector and the connected cable are integrated into one LC optical fiber connector. The product is designed to meet the needs of different application scenarios, providing high compatibility and ensuring product quality and durability.

Specification Snapshot
Insertion Loss (dB) Single Mode Single Core
≤0.3
Insertion Loss (dB) Multi-Mode Multi-Core
≤0.3
Ferrule Diameter Single Mode Single Core
125.5μm, concentricity <1μm
Ferrule Diameter Single Mode Multi-Core
127μm, concentricity <3μm
Ferrule Diameter Multi-Mode Single Core
125.5μm, concentricity <1μm
Ferrule Diameter Multi-Mode Multi-Core
127μm, concentricity <3μm
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

This is an integrated structure design with enhanced tensile strength. The single connector and the connected cable are integrated into one LC optical fiber connector. The product is designed to meet the needs of different application scenarios, providing high compatibility and ensuring product quality and durability.

Specifications

ParameterValue
Insertion Loss (dB) Single Mode Single Core≤0.3
Insertion Loss (dB) Single Mode Multi-CoreStandard ≤0.3; Low ≤0.15
Insertion Loss (dB) Multi-Mode Single CoreStandard ≤0.3; Low ≤0.10
Insertion Loss (dB) Multi-Mode Multi-Core≤0.3
Fixed Attenuation (dB) Single Mode Single Core≥50dB (UPC); ≥60dB (APC)
Fixed Attenuation (dB) Single Mode Multi-Core≥30dB
Fixed Attenuation (dB) Multi-Mode Single Core≥55dB (UPC); ≥65dB (APC)
Fixed Attenuation (dB) Multi-Mode Multi-Core≥30dB
Ferrule Diameter Single Mode Single Core125.5μm, concentricity <1μm
Ferrule Diameter Single Mode Multi-Core127μm, concentricity <3μm
Ferrule Diameter Multi-Mode Single Core125.5μm, concentricity <1μm
Ferrule Diameter Multi-Mode Multi-Core127μm, concentricity <3μm
Operating Temperature-40°C~+85°C
Applicable Optical Fiber Single ModePC/APC (9/125μm)
Applicable Optical Fiber Multi-ModePC (50/125μm, 62.5/125μm)

Applications

1. Telecommunications networks 2. CATV networks 3. Internet networks 4. Optical communication equipment

Key Features

1. Rigid integrated design to enhance mechanical strength 2. Suitable for 0.9mm, 1.2mm, 2.0mm, 3.0mm, single core, and multi-core 3. Compatible with SM/MM, PC/APC 4. Customizable with customer logo 5. Complies with IEC61754-20 and GR326 design requirements 6. Meets RoHS and UL94-V0 flame retardant requirements

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Hy
HycSystem
View Supplier →
<p>Guangdong Yiyuantong Technology Co., Ltd. (HYC) was founded in 2000 in Shenzhen, China, and moved to Qingyuan, Guangdong in 2014. HYC is an influential passive optical communication device ODM/JDM manufacturer in the industry, focusing on providing design, R&D, manufacturing, sales and service of basic passive optical components. The company adheres to the concept of 'quality manufacturing and refined operation', with large-scale production and strict testing standards, continuously improving product manufacturing processes to achieve efficient and high-capacity output, providing customers with capacity that effectively matches demand and rapid response services. Actively promoting global industrial layout, relying on domestic Qingyuan production base and overseas Thailand production base, together with Shenzhen marketing R&D center and global sales center, building a unique competitive independent R&D, production and sales system. The company mainly produces optical interconnect products, high-speed transceiver modules & CPO optical components, multi-core fiber components, PLC splitters, WDM and other passive optical devices, which are widely used in AI, cloud computing, data center interconnection, fiber access, 5G/6G mobile communications and other fields. The company has over 2,000 employees, an international-level R&D team, and products are exported to Europe, Asia, America and other markets.</p>
