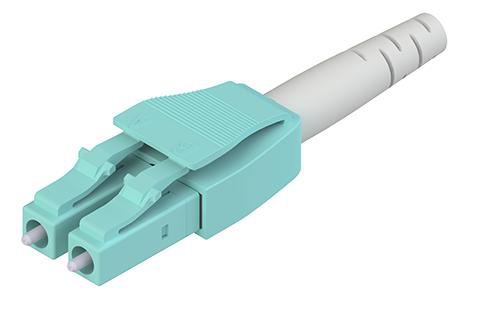

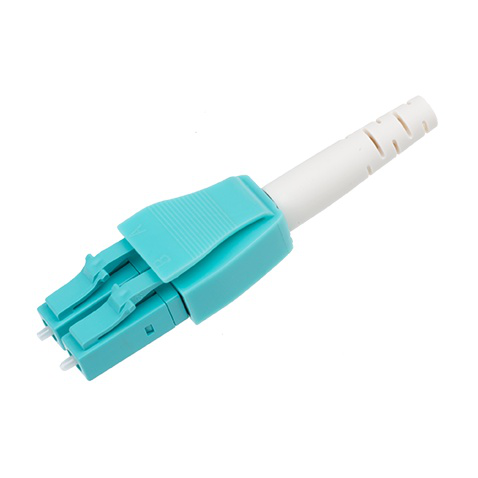

LC Uniboot Connector
This is a high-performance connector designed for high-density environments. Compared to traditional duplex connectors, this product is more compact and integrates the two fibers into a single cable, improving airflow in high-density environments and enabling more efficient utilization.
Specification Snapshot
Return Loss (dB) Multi-mode
≥30
Request a Quote
Download Datasheet
Chat
Overview
This is a high-performance connector designed for high-density environments. Compared to traditional duplex connectors, this product is more compact and integrates the two fibers into a single cable, improving airflow in high-density environments and enabling more efficient utilization.
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) Single-mode | Typical<0.3; Max<0.15 |
| Insertion Loss (dB) Multi-mode | Typical<0.3; Max<0.10 |
| Return Loss (dB) Single-mode | ≥50(UPC); ≥60(APC) |
| Return Loss (dB) Multi-mode | ≥30 |
| Ceramic Ferrule End-face Geometry Single-mode | 125.5μm Radius: <1μm |
| Ceramic Ferrule End-face Geometry Multi-mode | 127μm Radius: <3μm |
| Mating Durability | 500 times <0.3dB |
| Operating Temperature | -40°C~+85°C |
| Adapter Material | PC/APC(9/125μm) |
| Adapter Material Multi-mode | PC(50/125μm, 62.5/125μm) |
Applications
1. Telecom networks 2. CATV networks 3. Data networks 4. Optical communication equipment
Key Features
1. Meets high-density application requirements 2. Connector design suitable for high-density environments 3. Integrated two fibers to reduce space and improve airflow 4. High stability and reliability 5. Multiple options available 6. Compatible with 1.2-2.5mm cable assembly 7. Complies with IEC and GR326 standards 8. Customizable logo
Datasheet
Product Datasheet
PDF
Supplier Information
<p>Guangdong Yiyuantong Technology Co., Ltd. (HYC) was founded in 2000 in Shenzhen, China, and moved to Qingyuan, Guangdong in 2014. HYC is an influential passive optical communication device ODM/JDM manufacturer in the industry, focusing on providing design, R&D, manufacturing, sales and service of basic passive optical components. The company adheres to the concept of 'quality manufacturing and refined operation', with large-scale production and strict testing standards, continuously improving product manufacturing processes to achieve efficient and high-capacity output, providing customers with capacity that effectively matches demand and rapid response services. Actively promoting global industrial layout, relying on domestic Qingyuan production base and overseas Thailand production base, together with Shenzhen marketing R&D center and global sales center, building a unique competitive independent R&D, production and sales system. The company mainly produces optical interconnect products, high-speed transceiver modules & CPO optical components, multi-core fiber components, PLC splitters, WDM and other passive optical devices, which are widely used in AI, cloud computing, data center interconnection, fiber access, 5G/6G mobile communications and other fields. The company has over 2,000 employees, an international-level R&D team, and products are exported to Europe, Asia, America and other markets.</p>
