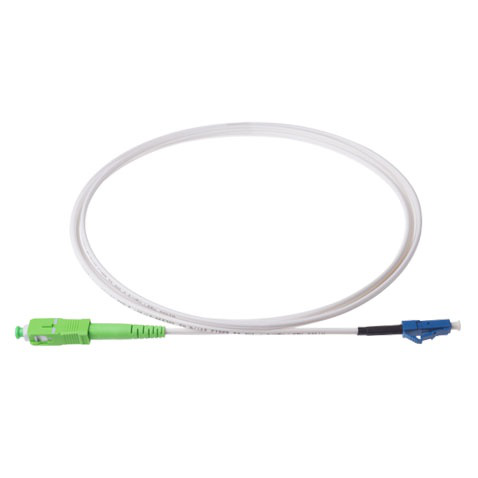

FTTH Patch Cord

FTTH Patch Cord

Supplier
Hyc-system
Part Number
FTTH Patch Cord
Category
Optical Networking Accessories
Origin
China

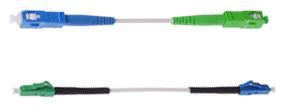

FTTH patch cords use special butterfly-shaped optical cables, which place the optical fiber unit in the center and strengthen the optical cable with two parallel FRP reinforcements. This design ensures excellent compression resistance and tensile performance, making it suitable for FTTH applications. HYC offers a variety of FTTH patch cords, optical cables, optical splitters, and connector types to meet different needs. These products are widely used in local area networks, FTTX, and CATV scenarios.

Specification Snapshot
Insertion Loss (dB) Grade A
<0.08dB
Insertion Loss (dB) Grade B
<0.12dB
Insertion Loss (dB) Grade C
<0.25dB
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

FTTH patch cords use special butterfly-shaped optical cables, which place the optical fiber unit in the center and strengthen the optical cable with two parallel FRP reinforcements. This design ensures excellent compression resistance and tensile performance, making it suitable for FTTH applications. HYC offers a variety of FTTH patch cords, optical cables, optical splitters, and connector types to meet different needs. These products are widely used in local area networks, FTTX, and CATV scenarios.

Specifications

ParameterValue
Insertion Loss (dB) Grade A<0.08dB
Insertion Loss (dB) Grade B<0.12dB
Insertion Loss (dB) Grade C<0.25dB
Return Loss (dB) Grade A≥50dB(PC);≥50dB(UPC);≥60dB(APC)
Return Loss (dB) Grade B≥50dB(PC);≥50dB(UPC);≥60dB(APC)
Return Loss (dB) Grade C≥50dB(PC);≥50dB(UPC);≥60dB(APC)
Mating Durability500times
Applicable FiberOS1/OS2

Applications

1. FTTX 2. Local area networks 3. CATV

Key Features

1. High pressure and practical performance 2. Low insertion loss and return loss 3. Easy operation and installation 4. Compliant with GR326 or IEC 61300-2 standards

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Hy
Hyc-system
View Supplier →
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components. Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery. The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications. The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
