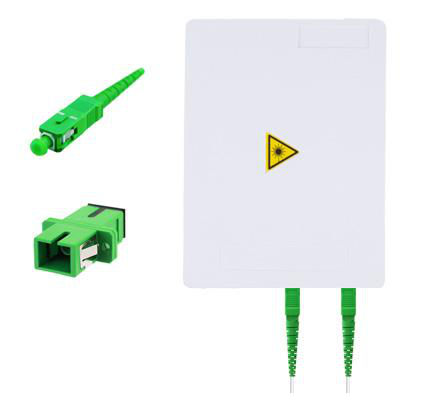

FTTH Wall-Mounted Information Fiber Panel
With the next generation of optical communication equipment, more devices or components require direct access to optical fibers. Currently, wall-mounted information panels have been widely used. In a limited space, wall-mounted fiber panels can be installed quickly and easily. Designed for compactness, dustproofing, and safety, HYC has developed this professional information panel to provide customers with an ideal solution for fiber applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions (LxWxH)(mm) | 106x80x24 |
| Adapter Type | SC simplex |
| Adapter Type | LC simplex |
| Adapter Type | LC duplex |
| Operating Temperature (°C) | -25~70°C |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

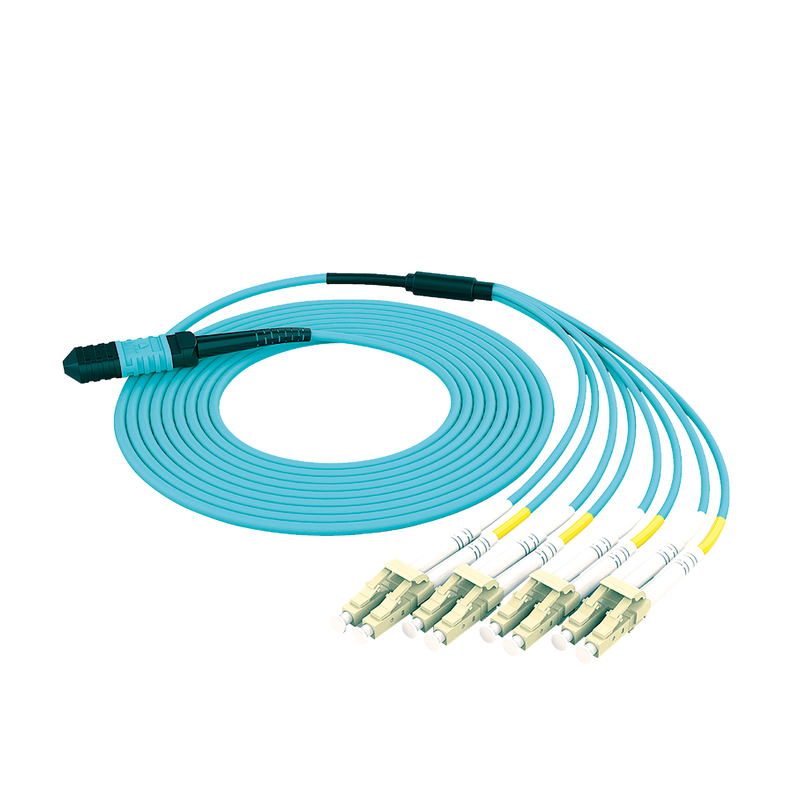

MPO Fiber Patch Cord
Optical Networking Accessories
Lifo-fj
Ferrule: High-Quality Ceramic Ferrule Insertion loss: ≤0.3dB Return loss [MPO/MTP(MM)]: ≥30dB
-

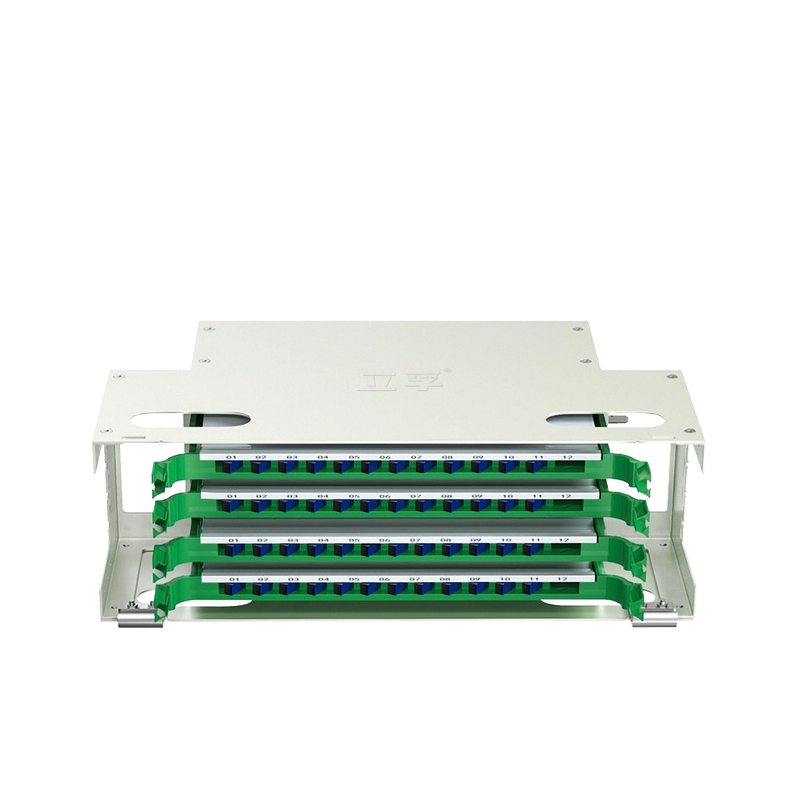

ODF Unit Box LF-ODF12
Optical Networking Accessories
Lifo-fj
Product color: Off-White Product material: SPSS, Off-White Material Thickness: 1.2mm
-

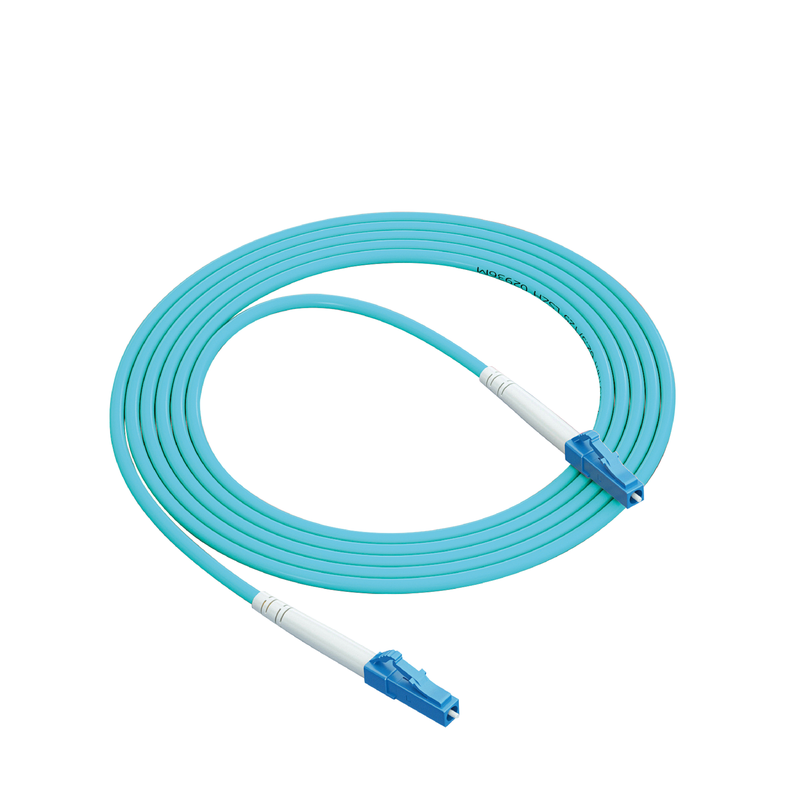

OM3 Fiber Patch Cord
Optical Networking Accessories
Lifo-fj
Applicable Standards: YD/T 1258.2-2009 Product material: Zirconia sleeve, environmentally friendly flame-retardant PC dust cap, zinc-alloy metal housing, 50/125 fiber core and new environmentally friendly LSZH low-smoke halogen-free jacket. Ferrule: High-Quality Ceramic Ferrule
-

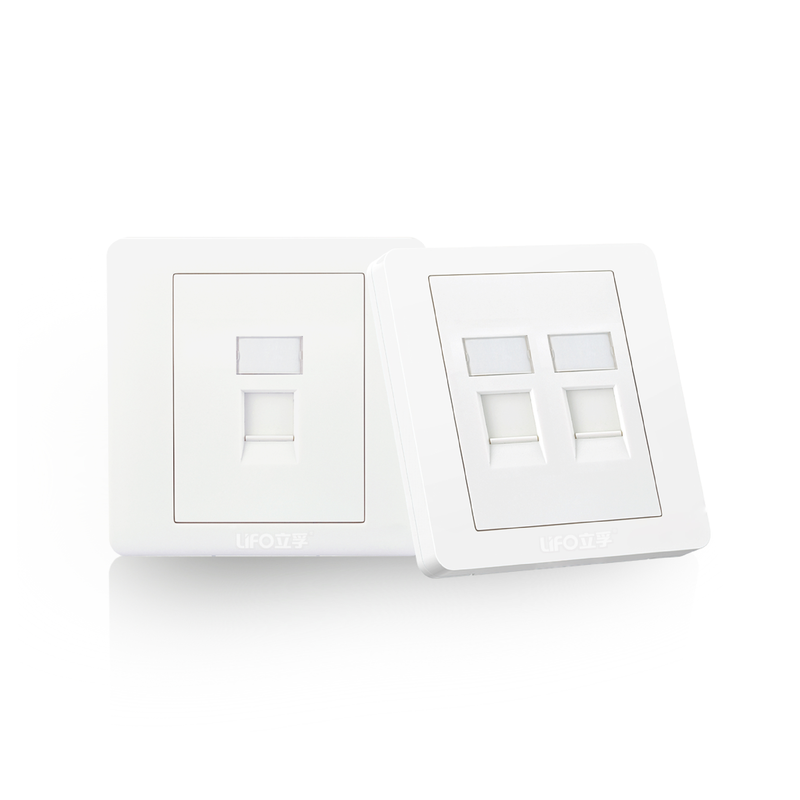

Information Panel
Optical Networking Accessories
Lifo-fj
Applicable Standards: GB17466 Product material: Flame-Retardant Engineering-Grade ABS Material, Spring Product structure: Dust Door, Label Strip and Modular Double-Layer Design
-

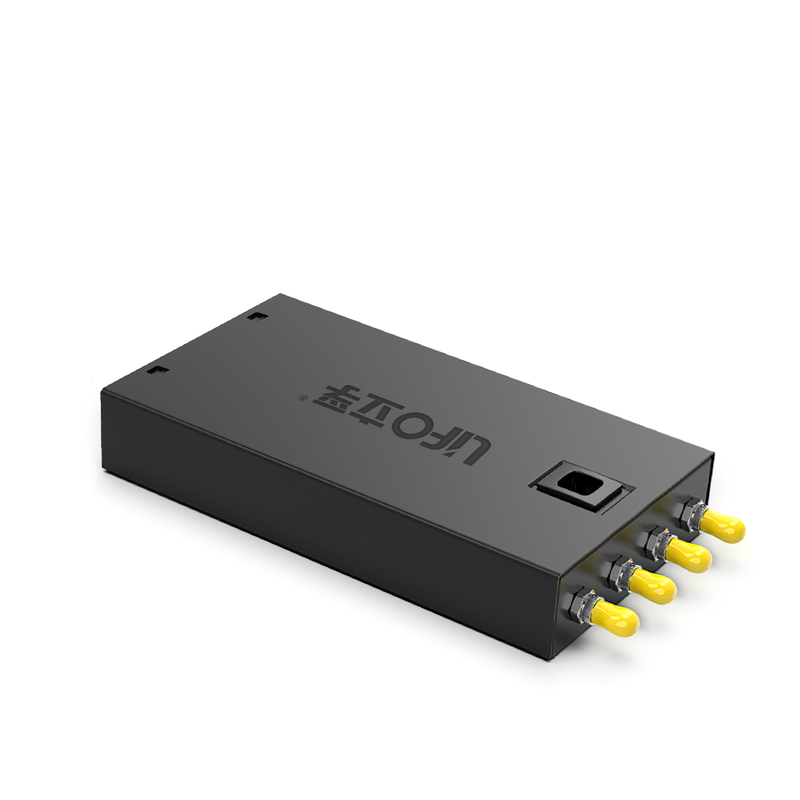

Fiber Termination Box LF-4Z/8Z-TY
