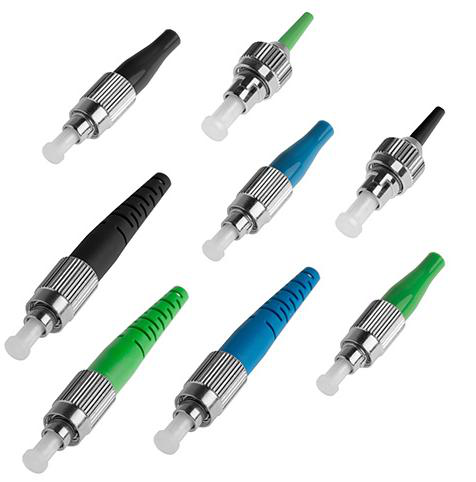

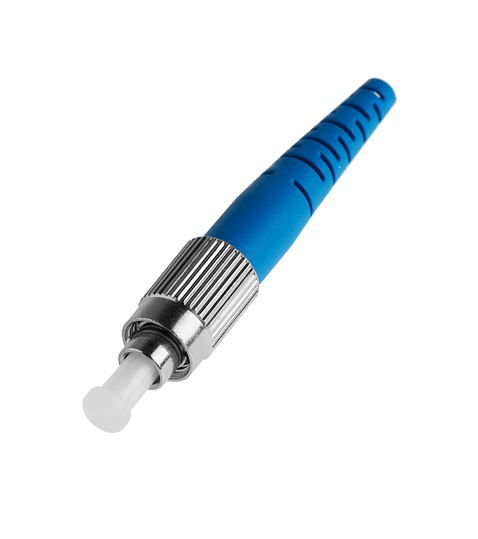

FC Fiber Optic Connector

FC Fiber Optic Connector

Supplier
Hyc-system
Part Number
FC Fiber Optic Connector
Category
Optical Networking Accessories
Origin
China

FC fiber optic connectors are used for detachable (movable) connections between optical fibers. They are designed to meet the requirements of high precision alignment and ensure maximum optical transmission efficiency.

Specification Snapshot
Insertion Loss (dB) Single Mode
≤0.3dB
Insertion Loss (dB) Multi Mode
≤0.3dB
Return Loss (dB) Single Mode UPC
≥50dB
Return Loss (dB) Single Mode APC
≥60dB
Return Loss (dB) Multi Mode
≥30dB
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

FC fiber optic connectors are used for detachable (movable) connections between optical fibers. They are designed to meet the requirements of high precision alignment and ensure maximum optical transmission efficiency.

Specifications

ParameterValue
Insertion Loss (dB) Single Mode≤0.3dB
Insertion Loss (dB) Multi Mode≤0.3dB
Return Loss (dB) Single Mode UPC≥50dB
Return Loss (dB) Single Mode APC≥60dB
Return Loss (dB) Multi Mode≥30dB
Ceramic Ferrule Dimension Tolerance Single Mode125.5μm 同心度<1μm
Ceramic Ferrule Dimension Tolerance Multi Mode127μm 同心度<3μm
Operating Temperature-40°C~+85°C
Applicable Fiber Single ModePC/APC(9/125μm)
Applicable Fiber Multi ModePC(50/125μm,62.5/125μm)

Applications

1. Telecommunications networks 2. CATV networks 3. LAN networks 4. Optical transmission equipment

Key Features

1. Low insertion loss 2. High repeatability 3. High stability 4. Easy operation 5. ROHS compliant

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Hy
Hyc-system
View Supplier →
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components. Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery. The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications. The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
