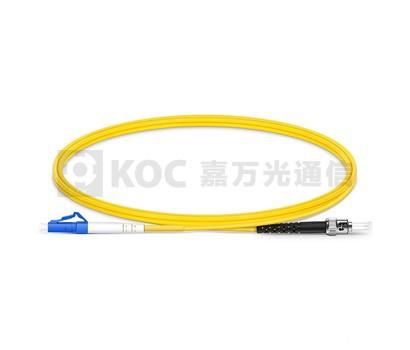

LC-ST Optic Patch Cord
The LC-ST Optic Patch Cord is designed for active optical path connections, featuring optical fiber connectors and cables. It ensures optimal coupling to the receiving optical fiber, minimizing insertion loss. Commonly used for connecting optical transceivers and terminal boxes, it is equipped with a thick protective coat for durability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) Single Mode | ≤0.3 |
| Insertion Loss (dB) Multimode | ≤0.3 |
| Return Loss (dB) Single Mode | ≥50B(PC), ≥60dB(APC) |
| Return Loss (dB) Multimode | ≥30 |
| Repeatability | ≤0.2 |
| Durability | ≤0.2dB typical change, 500 matings |
| Interchangeability | ≤0.2dB |
| Tensile Strength | ≥70N |
| Operating Temperature | -20°C~70°C |
Applications
