VEC11T-EC
The VEC11T-EC is a three-in-one Ethernet over Coax 1-channel transmitter that provides connectivity for one 10/100Mbps IEEE standard twisted pair copper port over a 750m coaxial cable. It supports PoE/PoC technology with a maximum power of 30W and varying data rates depending on cable distance and quality. The plug-and-play design ensures easy installation without electrical adjustment, and LED indicators display the operational status.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Supply | PoC (Power over Coax) |
| Consumption | <2W (without PoE) |
| Transmission Medium | 75-5 or above coax cable |
| Operating Frequency | 2M~28M |
| Modulation | Wavelet-OFDM |
| Transmission Rate | 210M (Max) |
| Transmission Distance (PoE) | 0~500m (75-5 cable) |
| Transmission Distance (Non PoE) | 0~2000m (75-5 cable) |
| Ethernet Port Transmission Medium | Cat5e/6 |
| Ethernet Port Standard | IEEE802.3, IEEE802.3u |
| Ethernet Delay | <1ms |
| ESD Protection | IEC61000-4-2: 6KV (contact), 8KV (air) |
| Anti-Thunder Protection | IEC61000-4-5: 1KV (DM), 2KV (CM) |
| Operating Temperature | -20°C~+75°C |
| Storage Temperature | -40°C~+85°C |
| Humidity | 0~99% (non-condensing) |

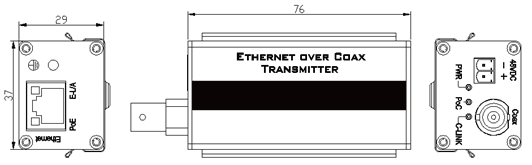

| Dimensions | 29mm×37mm×76mm |
| Material | Aluminum |
| Color | Black |
| Weight | 0.2kg |

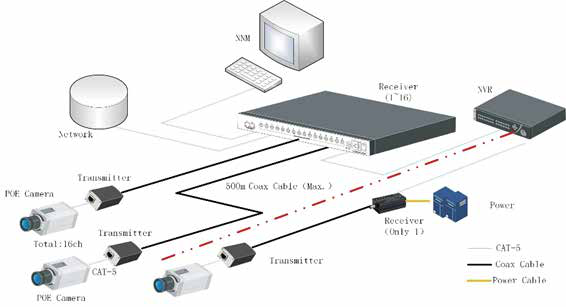

Applications
