MPD-5/24S-4C Light Source Controller

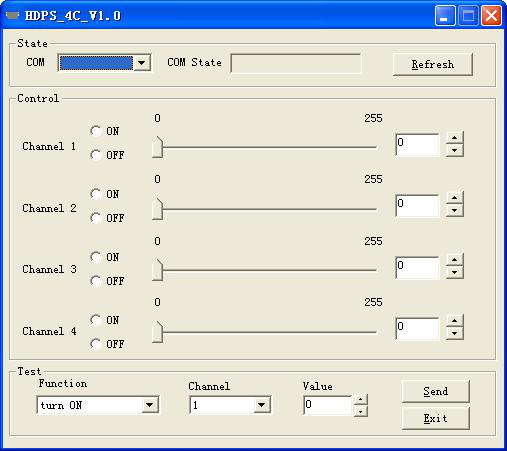

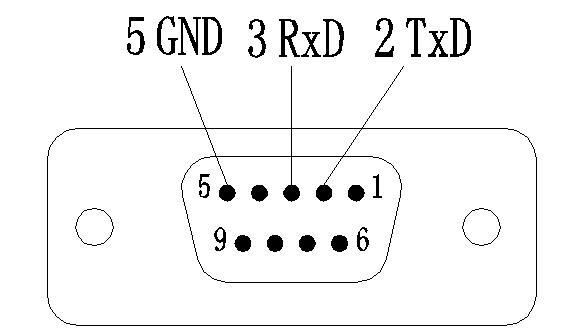

This product is a programmable digital controller designed for driving LED light sources in machine vision applications. It supports RS232 remote control, enabling 256-level brightness adjustment, light source on/off control, external hardware triggering, manual brightness adjustment, and digital display. It is particularly suitable for complex and high-end machine vision equipment.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 88~264VAC |
| Frequency Range | 47~63Hz |
| Output Type | Constant current type |
| Point Light Source Output Channels | 2 |
| 24V Light Source Output Channels | 2 |
| Adjustable Output Range | 0~100% |
| Maximum Current Per Channel | <0.4A |
| Brightness Adjustment Method | Button adjustment/Remote adjustment |
| Brightness Adjustment Levels | 256 levels |

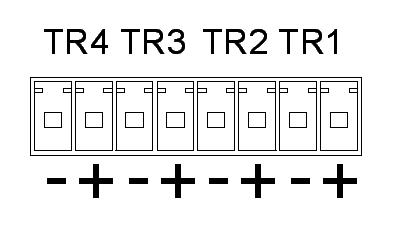

| Trigger Mode | Positive/Negative |
| Trigger Voltage | 5~24V |
| Overvoltage Protection | Yes |
| Overcurrent Protection | Yes |
| Overtemperature Protection | Yes |
| Operating Temperature | 0~40°C |
| Storage Temperature | -10~50°C |

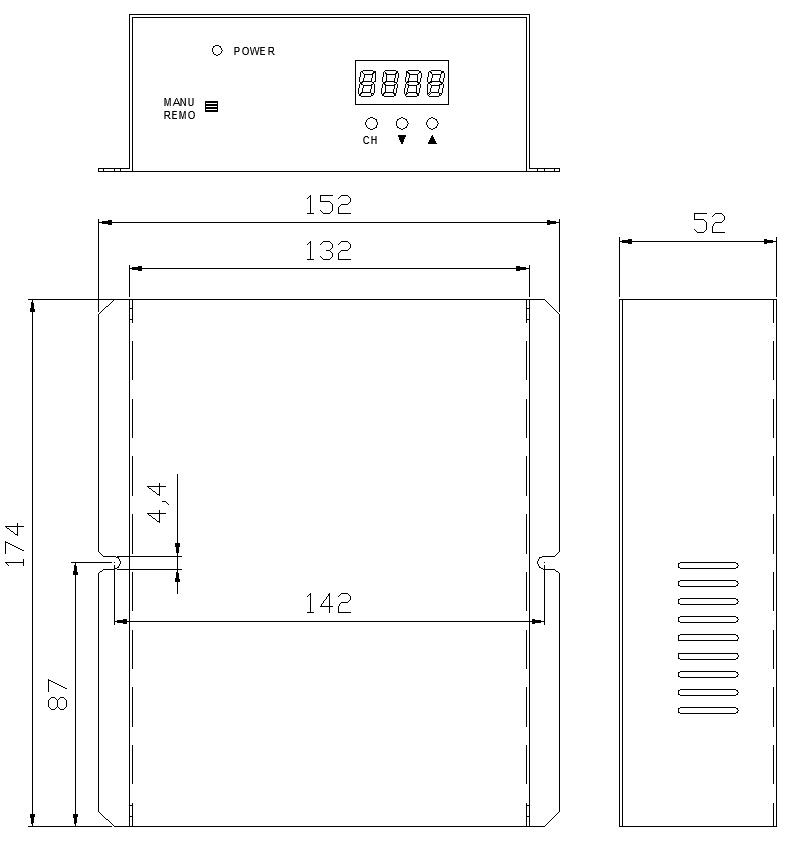

| Product Dimensions | 152×174×52mm |
| Surface Treatment | Spray paint |
Applications
Key Features
Datasheet
