电动物镜转塔
The motorized objective turret is a precision optical device designed for automated switching between multiple objective lenses, ensuring high accuracy and efficiency in optical systems.
Save to Favorites
Overview
Specifications

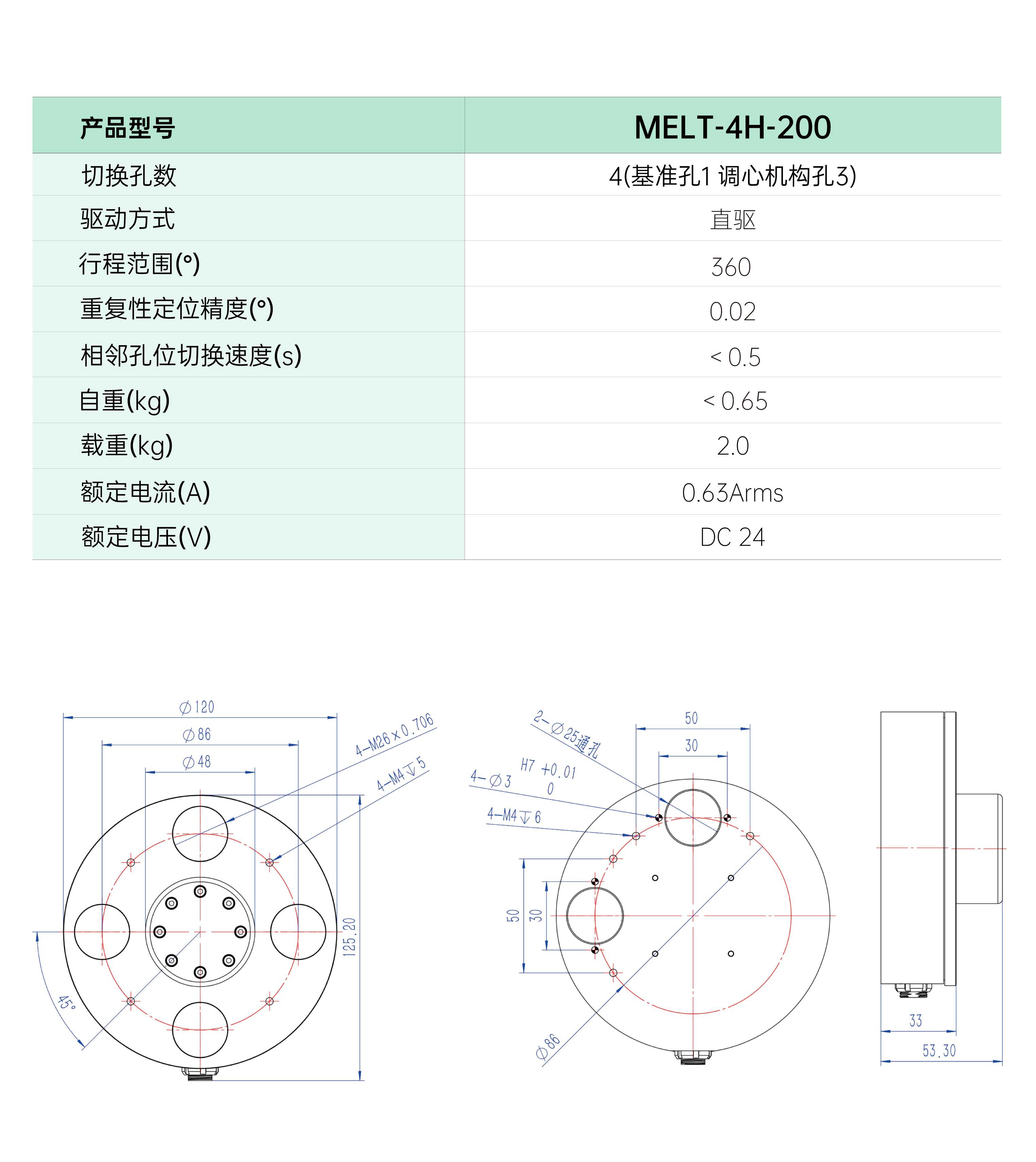

| Parameter | Value |
|---|---|
| Number of Switching Holes | 4 (基准孔1 调心机构孔3) |
| Drive Mode | 直驱 |
| Travel Range (°) | 360 |
| Repeatability Positioning Accuracy (°) | 0.02 |
| Adjacent Hole Switching Speed (s) | <0.5 |
| Weight (kg) | 0.65 |
| Load Capacity (kg) | 2.0 |
| Rated Current (A) | 0.63Arms |
| Rated Voltage (V) | DC24 |
| Two-Hole Objective Switching Time | <1s |
| Travel | 360° |
| Repeat Positioning Accuracy | <2μm |
| Turret Weight | 0.95kg |
| Load | <2.4kg |
