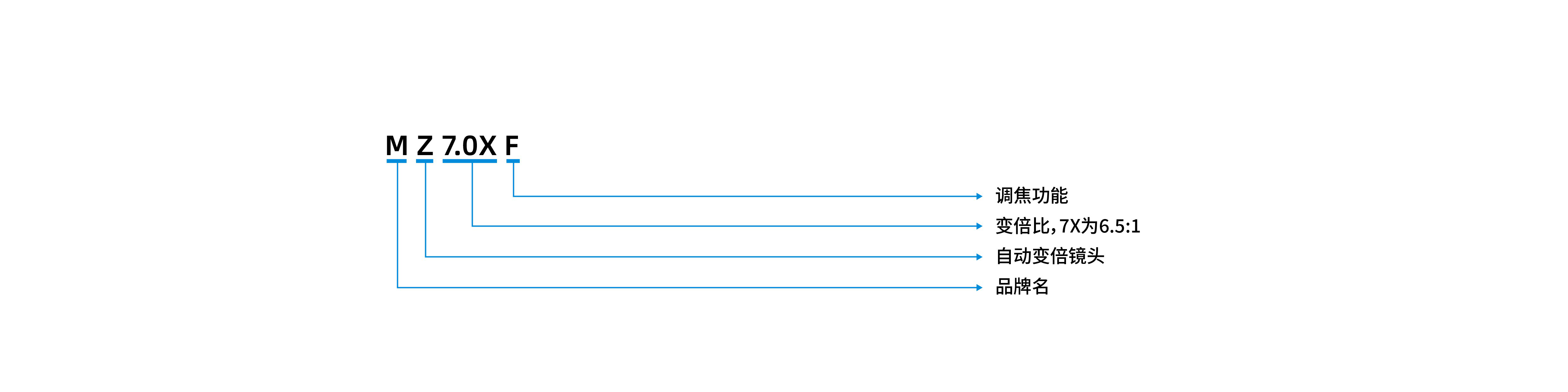

MZ7.0XF
The MZ7.0XF is a high-precision motorized zoom lens designed for industrial and scientific applications. It features a 7X zoom ratio, autofocus functionality, and compatibility with various auxiliary lenses for enhanced versatility.
Save to Favorites
Overview
Specifications

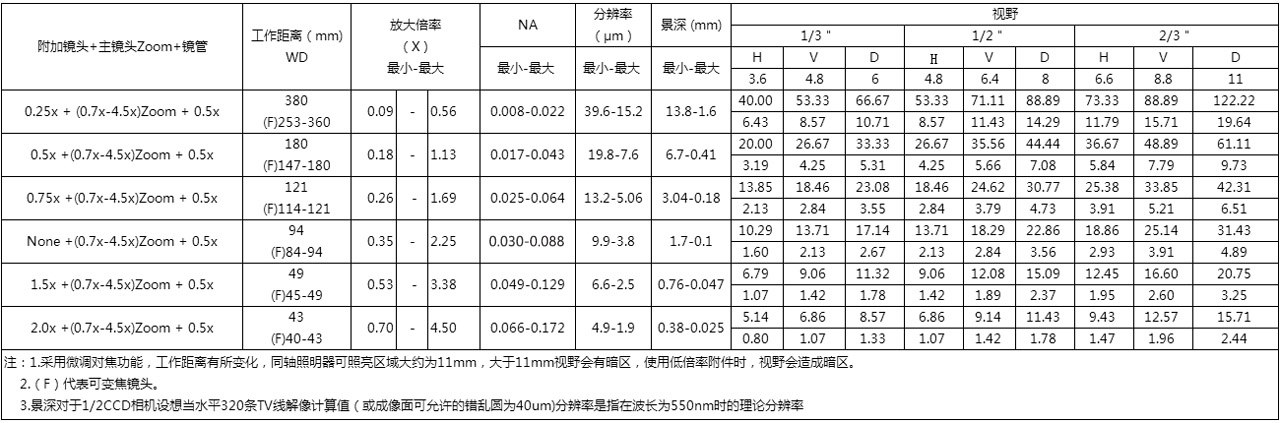

| Parameter | Value |
|---|---|
| Working Distance (mm) 0.25x + (0.7x-4.5x)Zoom + 0.5x | 380(F)253-360 |
| Working Distance (mm) 0.5x + (0.7x-4.5x)Zoom + 0.5x | 180(F)147-180 |
| Working Distance (mm) 0.75x + (0.7x-4.5x)Zoom + 0.5x | 121(F)114-121 |
| Working Distance (mm) None + (0.7x-4.5x)Zoom + 0.5x | 94(F)84-94 |
| Working Distance (mm) 1.5x + (0.7x-4.5x)Zoom + 0.5x | 49(F)45-49 |
| Working Distance (mm) 2.0x + (0.7x-4.5x)Zoom + 0.5x | 43(F)40-43 |
| Magnification (X) 0.25x + (0.7x-4.5x)Zoom + 0.5x | 0.09-0.56 |
| Magnification (X) 0.5x + (0.7x-4.5x)Zoom + 0.5x | 0.18-1.13 |
| Magnification (X) 0.75x + (0.7x-4.5x)Zoom + 0.5x | 0.26-1.69 |
| Magnification (X) None + (0.7x-4.5x)Zoom + 0.5x | 0.35-2.25 |
| Magnification (X) 1.5x + (0.7x-4.5x)Zoom + 0.5x | 0.53-3.38 |
| Magnification (X) 2.0x + (0.7x-4.5x)Zoom + 0.5x | 0.70-4.50 |
| Numerical Aperture (NA) 0.25x + (0.7x-4.5x)Zoom + 0.5x | 0.008-0.022 |
| Numerical Aperture (NA) 0.5x + (0.7x-4.5x)Zoom + 0.5x | 0.017-0.043 |
| Numerical Aperture (NA) 0.75x + (0.7x-4.5x)Zoom + 0.5x | 0.025-0.065 |
| Numerical Aperture (NA) None + (0.7x-4.5x)Zoom + 0.5x | 0.030-0.090 |
| Numerical Aperture (NA) 1.5x + (0.7x-4.5x)Zoom + 0.5x | 0.049-0.147 |
| Numerical Aperture (NA) 2.0x + (0.7x-4.5x)Zoom + 0.5x | 0.066-0.172 |
| Resolution (μm) 0.25x + (0.7x-4.5x)Zoom + 0.5x | 39.6-15.2 |
| Resolution (μm) 0.5x + (0.7x-4.5x)Zoom + 0.5x | 19.8-7.6 |
| Resolution (μm) 0.75x + (0.7x-4.5x)Zoom + 0.5x | 13.2-5.06 |
| Resolution (μm) None + (0.7x-4.5x)Zoom + 0.5x | 9.9-3.8 |
| Resolution (μm) 1.5x + (0.7x-4.5x)Zoom + 0.5x | 6.6-2.5 |
| Resolution (μm) 2.0x + (0.7x-4.5x)Zoom + 0.5x | 4.9-1.9 |
| Depth of Field (mm) 0.25x + (0.7x-4.5x)Zoom + 0.5x | 13.8-1.6 |
| Depth of Field (mm) 0.5x + (0.7x-4.5x)Zoom + 0.5x | 6.7-0.41 |
| Depth of Field (mm) 0.75x + (0.7x-4.5x)Zoom + 0.5x | 4.0-0.24 |
| Depth of Field (mm) None + (0.7x-4.5x)Zoom + 0.5x | 2.8-0.15 |
| Depth of Field (mm) 1.5x + (0.7x-4.5x)Zoom + 0.5x | 1.8-0.09 |
| Depth of Field (mm) 2.0x + (0.7x-4.5x)Zoom + 0.5x | 1.3-0.025 |
| Field of View (mm) 1/3'' D | 88.89 |
| Field of View (mm) 1/3'' H | 53.33 |
| Field of View (mm) 1/3'' V | 66.67 |
| Field of View (mm) 1/2'' D | 4.8 |
| Field of View (mm) 1/2'' H | 66.67 |
| Field of View (mm) 1/2'' V | 88.89 |
| Field of View (mm) 2/3'' D | 6.6 |
| Field of View (mm) 2/3'' H | 88.89 |
| Field of View (mm) 2/3'' V | 122.22 |
