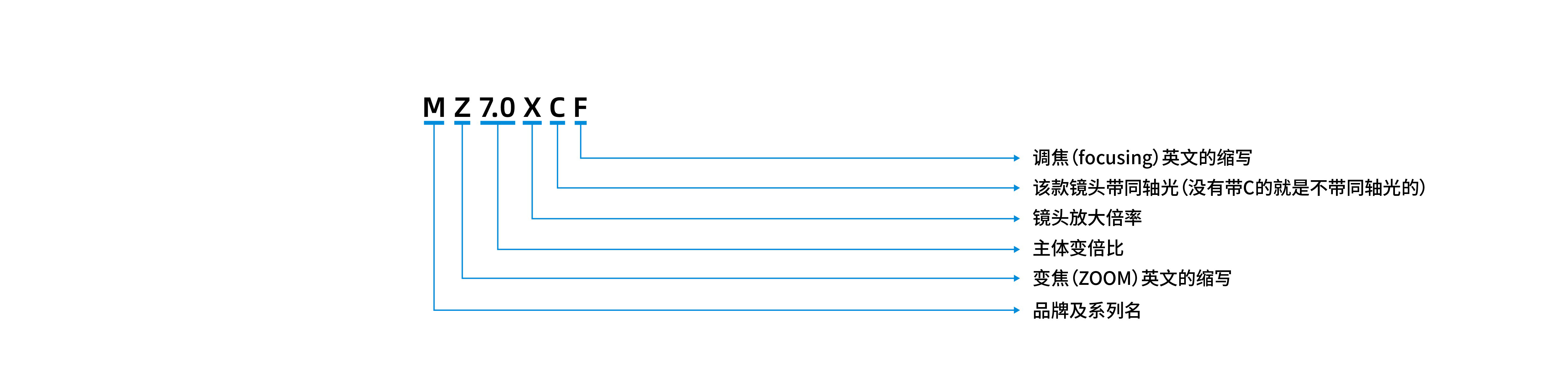

MZ7.0XCF
The MZ7.0XCF is a high-precision coaxial zoom lens designed for industrial imaging applications. It features adjustable magnification, excellent resolution, and compatibility with various sensors.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Working Distance (mm) 0.25× | 380 |
| Working Distance (mm) 0.5× | 180(F)147-180 |
| Working Distance (mm) 0.75× | 121(F)114-121 |
| Working Distance (mm) None | 94(F)84-94 |
| Working Distance (mm) 1.5× | 49(F)45-49 |
| Working Distance (mm) 2.0× | 43(F)40-43 |
| Magnification (X) 0.25× | 0.09-0.56 |
| Magnification (X) 0.5× | 0.13-1.13 |
| Magnification (X) 0.75× | 0.19-1.69 |
| Magnification (X) None | 0.25-2.25 |
| Magnification (X) 1.5× | 0.38-3.38 |
| Magnification (X) 2.0× | 0.45-4.50 |
| Numerical Aperture (NA) 0.25× | 0.008-0.022 |
| Numerical Aperture (NA) 0.5× | 0.017-0.043 |
| Numerical Aperture (NA) 0.75× | 0.026-0.064 |
| Numerical Aperture (NA) None | 0.030-0.088 |
| Numerical Aperture (NA) 1.5× | 0.049-0.129 |
| Numerical Aperture (NA) 2.0× | 0.066-0.172 |
| Resolution (μm) 0.25× | 39.6-152.5 |
| Resolution (μm) 0.5× | 19.8-76.4 |
| Resolution (μm) 0.75× | 13.2-50.6 |
| Resolution (μm) None | 9.9-39.8 |
| Resolution (μm) 1.5× | 6.6-25.5 |
| Resolution (μm) 2.0× | 4.9-19.9 |
| Depth of Field (mm) 0.25× | 13.8-16.2 |
| Depth of Field (mm) 0.5× | 6.9-8.1 |
| Depth of Field (mm) 0.75× | 4.6-5.4 |
| Depth of Field (mm) None | 3.1-3.7 |
| Depth of Field (mm) 1.5× | 0.76-0.047 |
| Depth of Field (mm) 2.0× | 0.38-0.025 |
| Field of View 1/3" (H) | 3.6 |
| Field of View 1/3" (V) | 4.8 |
| Field of View 1/3" (D) | 6.4 |
| Field of View 1/2" (H) | 6.6 |
| Field of View 1/2" (V) | 8.8 |
| Field of View 1/2" (D) | 11 |
| Field of View 2/3" (H) | 8.8 |
| Field of View 2/3" (V) | 11.8 |
| Field of View 2/3" (D) | 15.71 |
