MAZ7.0X Zoom Lens
The MAZ7.0X Zoom Lens is a high-performance optical zoom lens designed for precision imaging applications. It offers a zoom ratio of 6.5:1 and supports magnifications ranging from 0.7X to 4.5X, making it suitable for various industrial and scientific imaging needs.
Save to Favorites
Overview

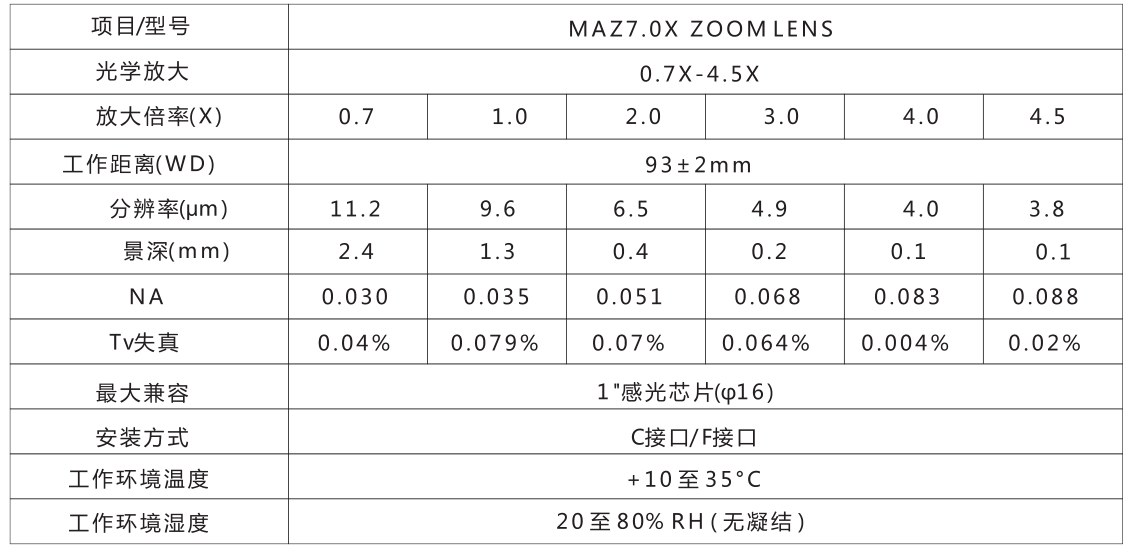

Specifications
| Parameter | Value |
|---|---|
| Optical Magnification | 0.7X-4.5X |
| Magnification (X) | 0.7, 1.0, 2.0, 3.0, 4.0, 4.5 |
| Working Distance | 93±2mm |
| Resolution (μm) | 11.2, 9.6, 6.5, 4.9, 4.0, 3.8 |
| Depth of Field (mm) | 2.4, 1.3, 0.4, 0.2, 0.1, 0.1 |
| Numerical Aperture | 0.030, 0.035, 0.051, 0.068, 0.083, 0.088 |
| TV Distortion | 0.04%, 0.079%, 0.07%, 0.064%, 0.004%, 0.02% |
| Maximum Compatibility | 1'' sensor chip (φ16) |
| Mounting Type | C-mount/F-mount |
| Operating Temperature | +10°C to +35°C |
| Operating Humidity | 20% to 80% RH (non-condensing) |
