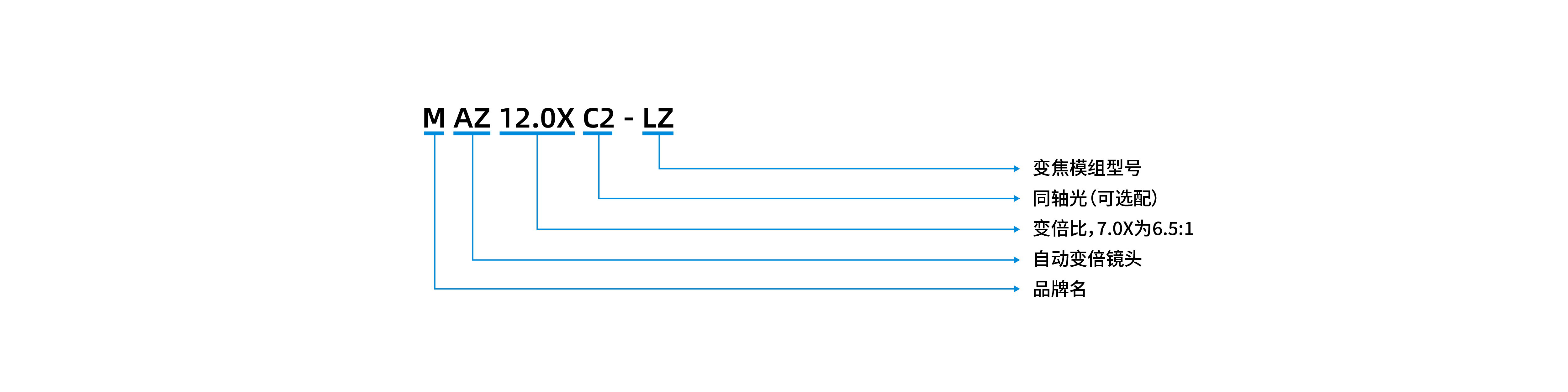

MAZ12.0X Zoom Lens
The MAZ12.0X Zoom Lens is a high-performance optical zoom lens designed for precision imaging applications. It offers a zoom ratio of 0.6X to 7.2X, ensuring versatile magnification capabilities.
Save to Favorites
Overview

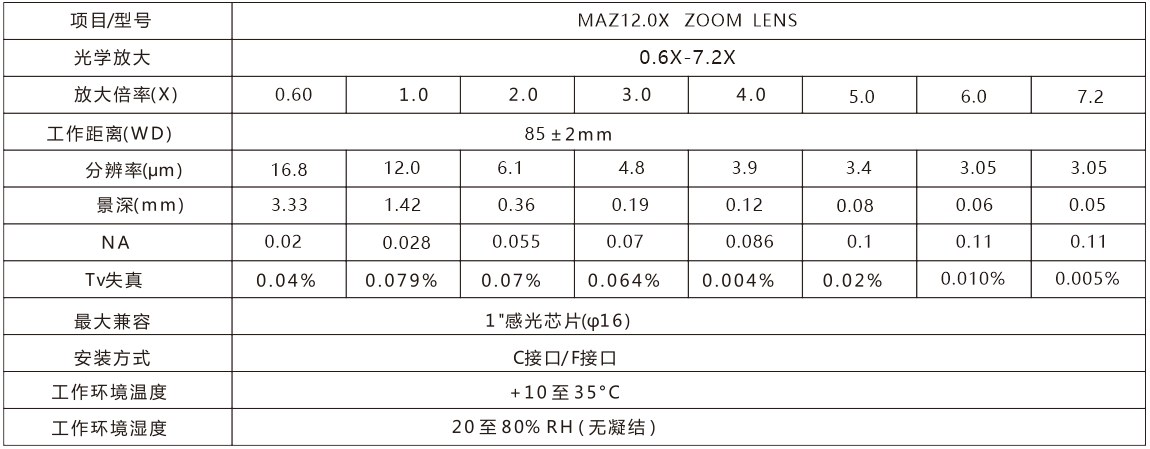

Specifications
| Parameter | Value |
|---|---|
| Optical Magnification | 0.6X-7.2X |
| Magnification (X) 0.6 | 0.60 |
| Magnification (X) 1.0 | 1.0 |
| Magnification (X) 2.0 | 2.0 |
| Magnification (X) 3.0 | 3.0 |
| Magnification (X) 4.0 | 4.0 |
| Magnification (X) 5.0 | 5.0 |
| Magnification (X) 6.0 | 6.0 |
| Magnification (X) 7.2 | 7.2 |
| Working Distance | 85±2mm |
| Resolution (μm) 0.6 | 16.8 |
| Resolution (μm) 1.0 | 12.0 |
| Resolution (μm) 2.0 | 6.1 |
| Resolution (μm) 3.0 | 4.8 |
| Resolution (μm) 4.0 | 3.9 |
| Resolution (μm) 5.0 | 3.4 |
| Resolution (μm) 6.0 | 3.05 |
| Resolution (μm) 7.2 | 3.05 |
| Depth of Field (mm) 0.6 | 3.33 |
| Depth of Field (mm) 1.0 | 1.42 |
| Depth of Field (mm) 2.0 | 0.36 |
| Depth of Field (mm) 3.0 | 0.19 |
| Depth of Field (mm) 4.0 | 0.12 |
| Depth of Field (mm) 5.0 | 0.08 |
| Depth of Field (mm) 6.0 | 0.06 |
| Depth of Field (mm) 7.2 | 0.05 |
| Numerical Aperture (NA) 0.6 | 0.02 |
| Numerical Aperture (NA) 1.0 | 0.028 |
| Numerical Aperture (NA) 2.0 | 0.055 |
| Numerical Aperture (NA) 3.0 | 0.07 |
| Numerical Aperture (NA) 4.0 | 0.086 |
| Numerical Aperture (NA) 5.0 | 0.1 |
| Numerical Aperture (NA) 6.0 | 0.11 |
| Numerical Aperture (NA) 7.2 | 0.11 |
| TV Distortion 0.6 | 0.04% |
| TV Distortion 1.0 | 0.079% |
| TV Distortion 2.0 | 0.07% |
| TV Distortion 3.0 | 0.064% |
| TV Distortion 4.0 | 0.004% |
| TV Distortion 5.0 | 0.02% |
| TV Distortion 6.0 | 0.010% |
| TV Distortion 7.2 | 0.005% |
| Maximum Compatibility | 1'' sensor chip (φ16) |
| Mounting Method | C-mount/F-mount |
| Operating Temperature | +10°C to +35°C |
| Operating Humidity | 20%-80% RH (non-condensing) |
