MT035-110-S High-Resolution Telecentric Lens
The MT035-110-S is a high-resolution telecentric lens designed for precision optical applications. It features a 0.35X magnification, 110mm working distance, and low distortion, making it ideal for high-accuracy imaging systems.
Save to Favorites
Overview
Specifications

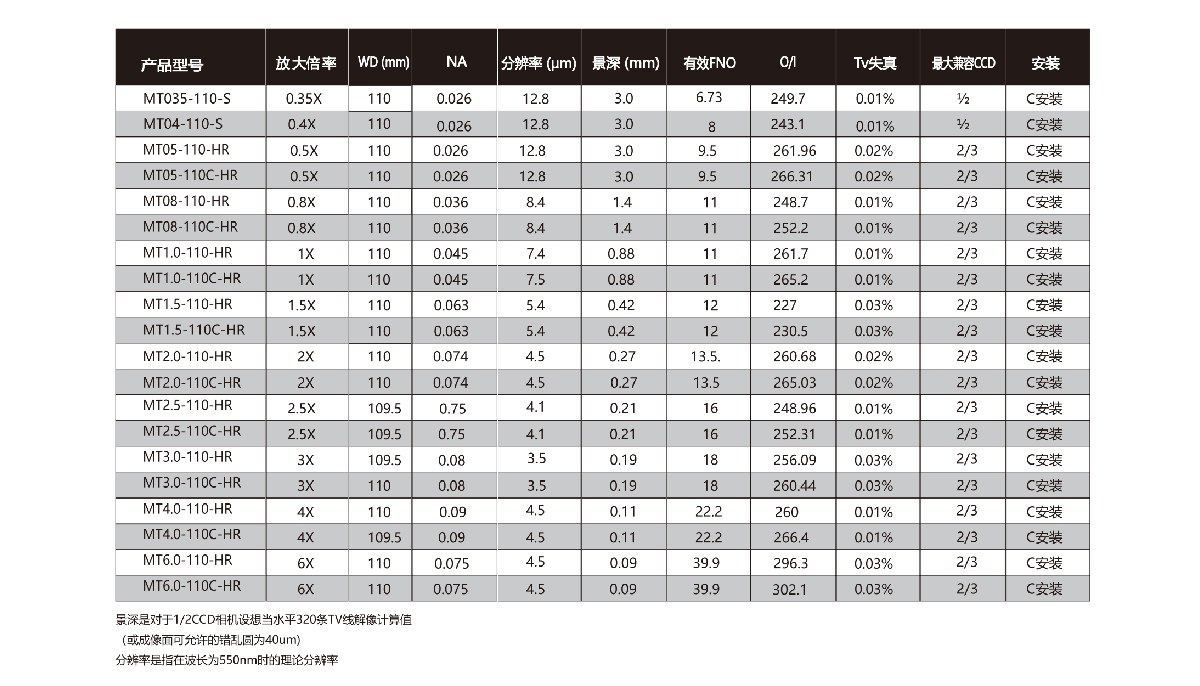

| Parameter | Value |
|---|---|
| Magnification | 0.35X |
| Working Distance (mm) | 110 |
| Numerical aperture | 0.026 |
| Resolution (μm) | 12.8 |
| Depth of Field (mm) | 3.0 |
| Effective FNO | 6.73 |
| Image Circle Diameter | 24.97 |
| TV Distortion | 0.01% |
| Maximum Sensor Size | 1/2 |
| Mount | C-mount |
