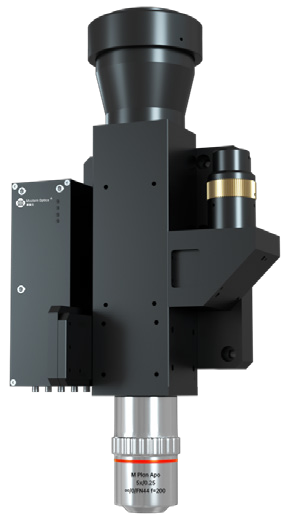

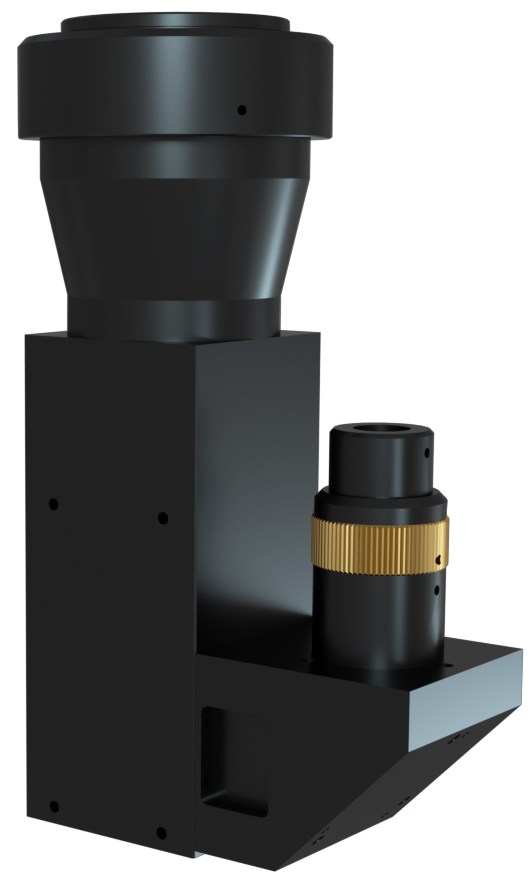

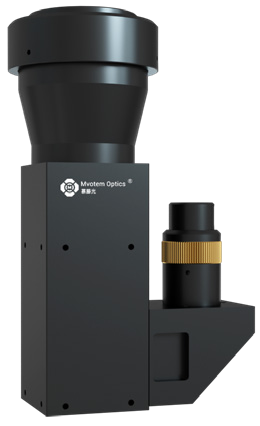

SR Large Field-of-View Lens Tube
The SR Large Field-of-View Lens Tube (MT-M44-S) is a high-performance 8K large field-of-view lens designed to meet the precision imaging needs of optical equipment. It ensures excellent color and spherical aberration correction, making it ideal for complex application scenarios. This advanced lens is primarily used in precision optical imaging systems, suitable for applications requiring high-quality imaging and analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Effective Focal Length | 200 |
| Entrance Pupil Distance | 0-50mm |
| Entrance Pupil Diameter | φ20mm |
| Maximum Compatible Sensor | φ44mm |
| Illumination Interface | φ14mm |
| Interface | M58×0.75 |
| Wavelength Range | 436-656nm |
Applications
Key Features
Datasheet
