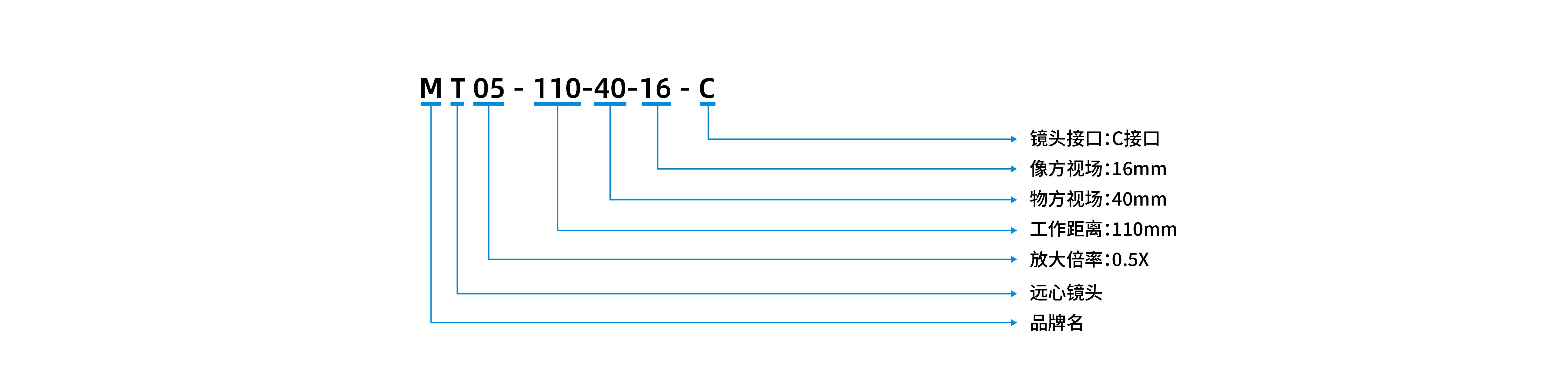

远心镜头 MT05-110-40-16-C
The MT05-110-40-16-C telecentric lens is designed for high-precision optical imaging applications, offering superior resolution and minimal distortion.
Save to Favorites
Overview

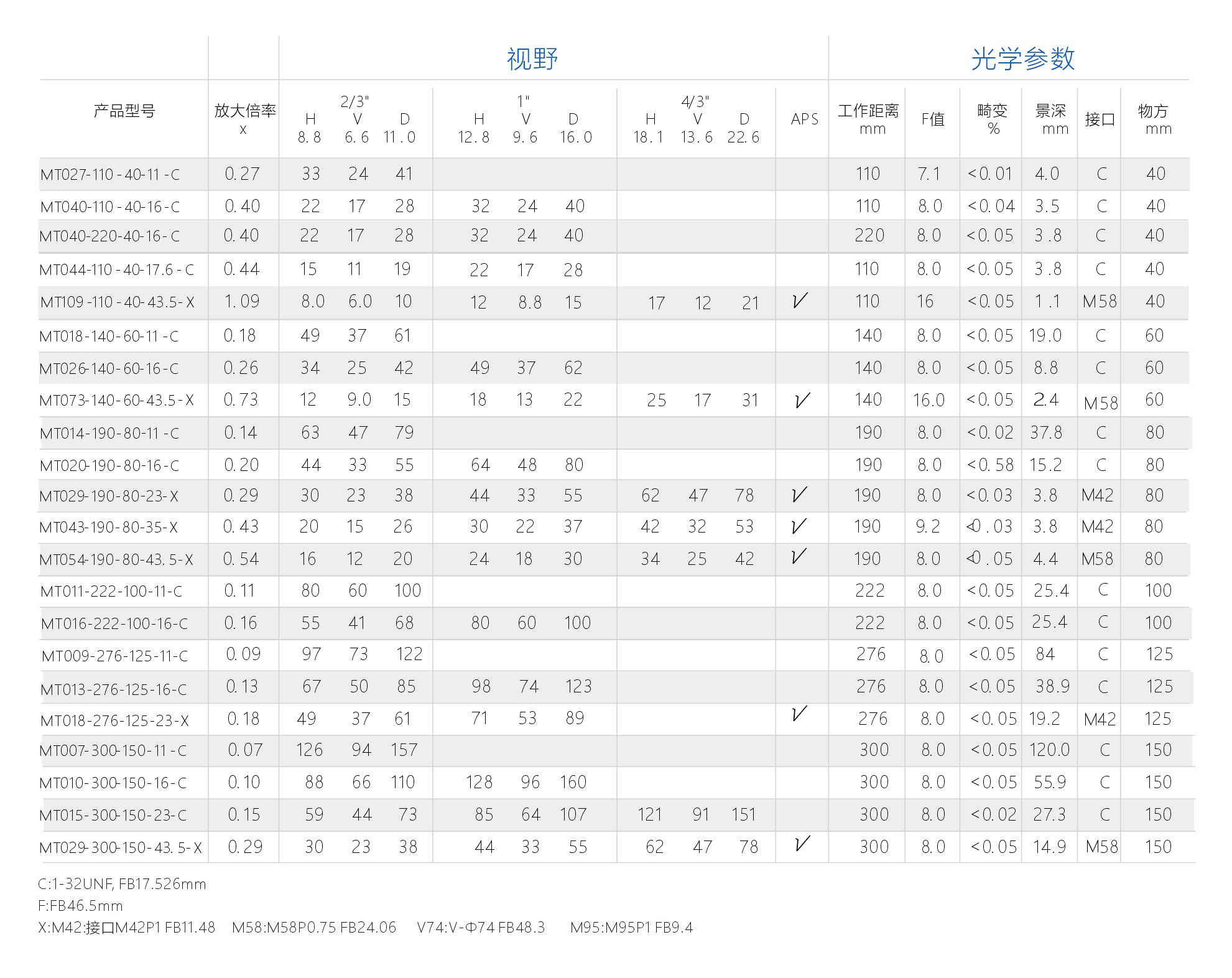

Specifications
| Parameter | Value |
|---|---|
| Magnification | 0.5X |
| Working Distance | 110mm |
| Image Side Field | 16mm |
| Object Side Field | 40mm |
| Lens Mount | C |
| Resolution | 8.0μm |
| Distortion | <0.04% |
| Depth of Field | 3.5mm |
| Object Side | 40° |
Applications
Key Features
Datasheet
