MPA-5/24S-4C Light Source Controller

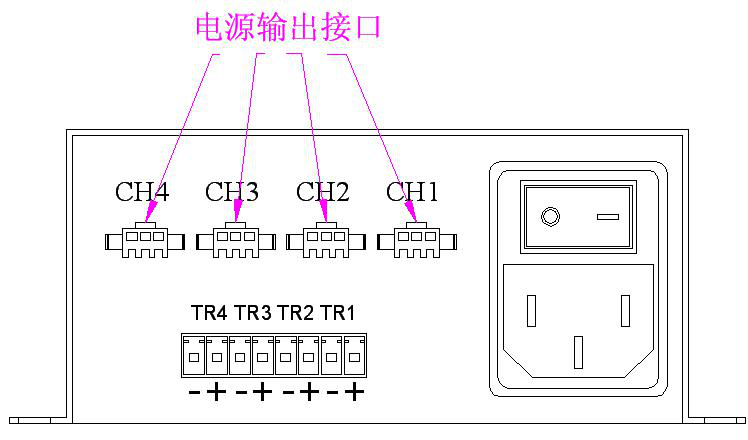

The MPA-5/24S-4C is a 400mA four-channel constant current controller designed for driving LED light sources. It features two point light source output channels and two 24V light source output channels, each of which can be independently adjusted for brightness using a rotary knob.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Voltage Range | 88~264VAC |
| Frequency Range | 47~63Hz |
| Output Type | Constant Current |
| Point Light Source Output Channels | 2 |
| 24V Light Source Output Channels | 2 |
| Adjustable Output Range | 0~400mA |
| Brightness Adjustment Knob Angle | 300° |

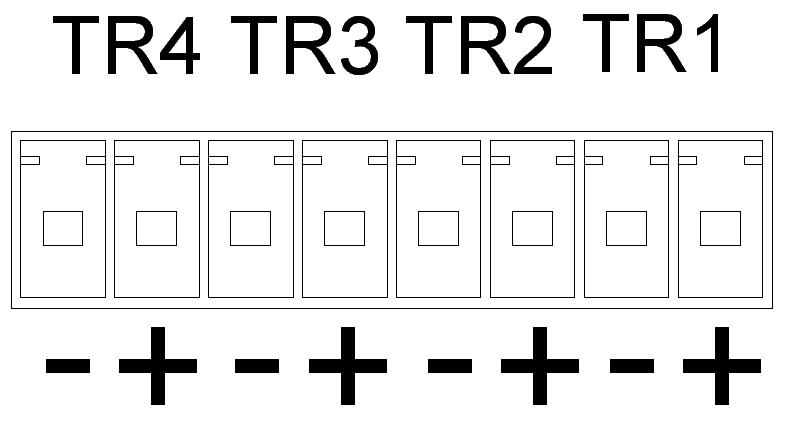

| Trigger Mode | Positive/Negative |
| Trigger Voltage Level | 5~24V |
| Overload Protection | Yes |
| Operating Temperature | 0~40°C |
| Storage Temperature | -10~50°C |

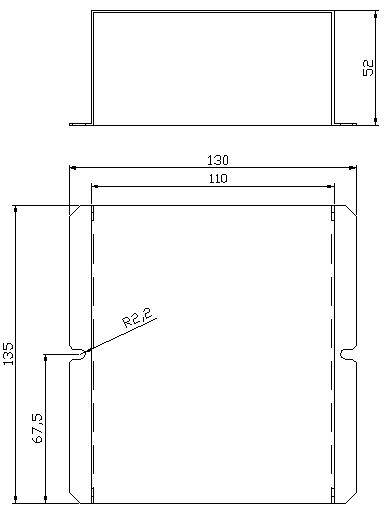

| Product Dimensions | 135×95×40mm |
| Surface Treatment | Spray Coating |
