MPA-5/24S-4C LED Light Source Controller
This product is designed to drive LED light sources, featuring a 400mA four-channel constant current controller. It includes two channels for point light source output and two channels for 24V light source output, each independently adjustable via brightness control knobs.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Voltage Range | 88~264VAC |
| Frequency Range | 47~63Hz |
| Output Type | Constant Current |
| Point Light Source Output Channels | 2 |
| 24V Light Source Output Channels | 2 |
| Adjustable Output Range | 0~400mA |
| Brightness Knob Adjustment Angle | 300° |
| Trigger Mode | Positive/Negative |
| Trigger Voltage Level | 5~24V |
| Protection Features | Overvoltage Protection; Overcurrent Protection; Overtemperature Protection |
| Operating Temperature | 0~40°C |
| Storage Temperature | -10~50°C |

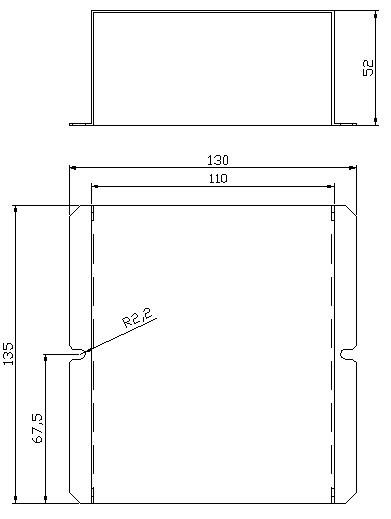

| Product Dimensions | 135×95×40mm |
| Surface Treatment | Spray Coating |
