BBO Crystal
BBO crystal is a nonlinear optical crystal with excellent electro-optic properties, high damage threshold, and wide transparency range, making it ideal for frequency conversion and laser applications.
Save to Favorites
Overview
Specifications

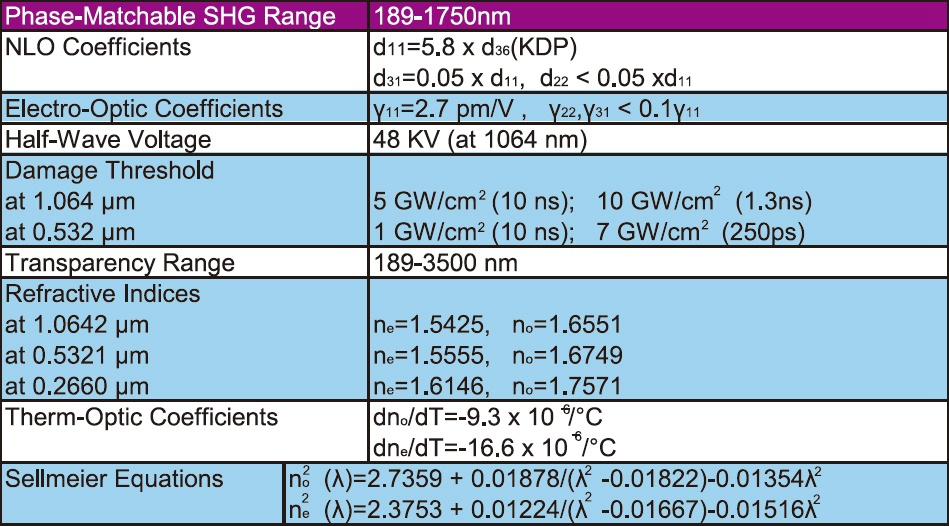

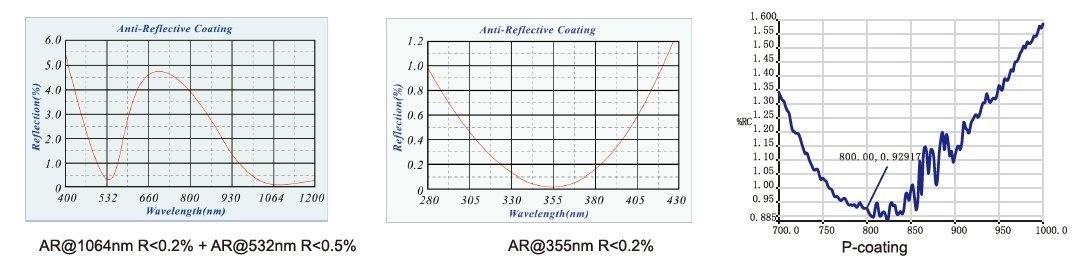

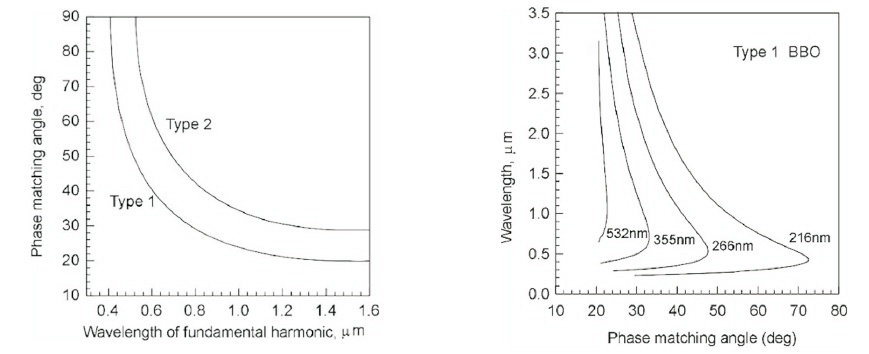

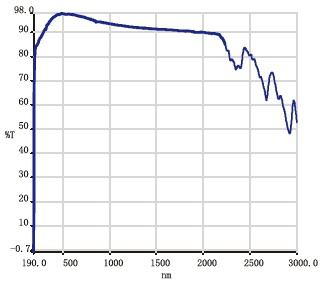

| Parameter | Value |
|---|---|
| Phase-Matchable SHG Range | 189-1750nm |
| NLO Coefficients | d11=5.8×d36(KDP), d31=0.05×d11, d22<0.05×d11 |
| Electro-Optic Coefficients | γ11=2.7pm/V, γ22, γ31<0.1γ11 |
| Half-Wave Voltage | 48KV(at1064nm) |
| Damage Threshold@1.064μm | 5GW/cm²(10ns); 10GW/cm²(1.3ns) |
| Damage Threshold@0.532μm | 1GW/cm²(10ns); 7GW/cm²(250ps) |
| Transparency Range | 189-3500nm |
| Refractive Indices@1.0642μm | ne=1.5425, no=1.6551 |
| Refractive Indices@0.5321μm | ne=1.5555, no=1.6749 |
| Refractive Indices@0.2660μm | ne=1.6146, no=1.7571 |
| Therm-Optic Coefficients dn/dT | -9.3×10⁻⁶/°C |
| Therm-Optic Coefficients dne/dT | -16.6×10⁻⁶/°C |
| Sellmeier Equations | nₒ²(λ)=2.7359+0.01878/(λ²-0.01822)-0.01354λ²; nₑ²(λ)=2.3753+0.01224/(λ²-0.01667)-0.01516λ² |
