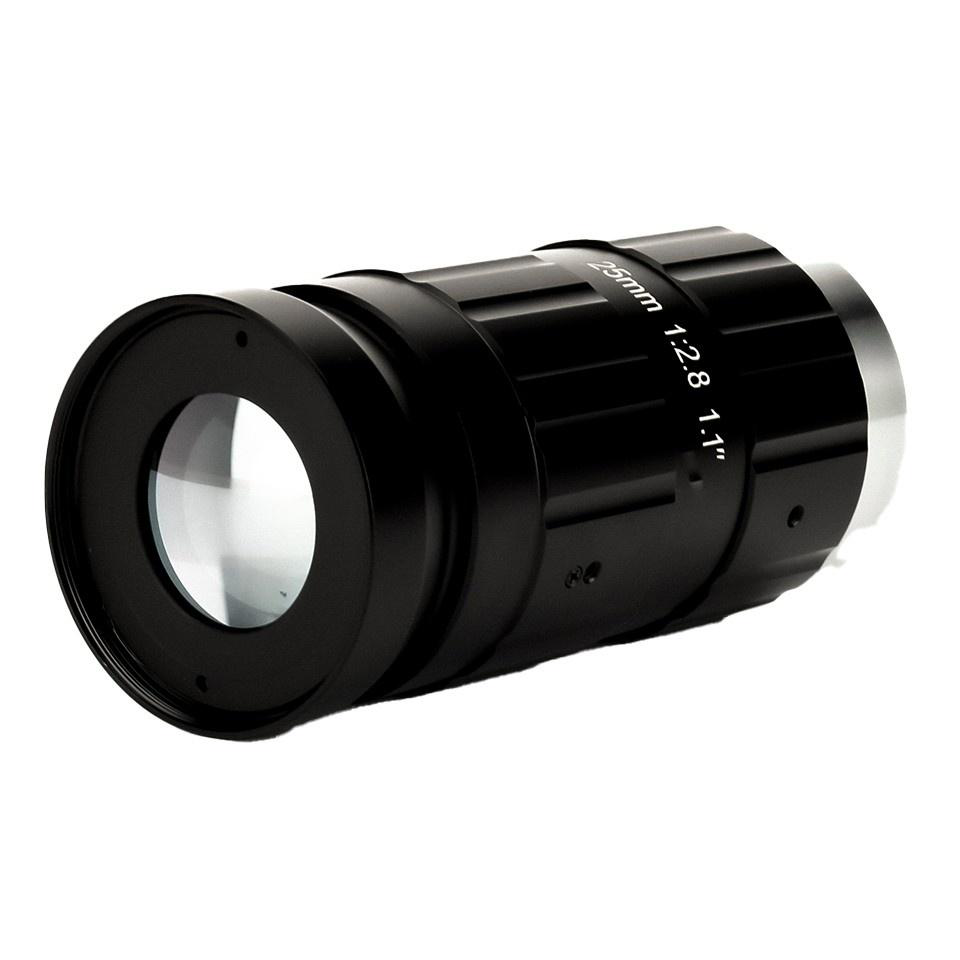

IR2516A
The IR2516A is a high-performance infrared lens designed for precise imaging applications. It features a focal length of 25mm and an aperture range of F2.8-22, making it suitable for various optical systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Focal Length | 25mm |
| Max Aperture (Ratio) | F2.8-22 |
| Picture Size | 1'(14.1×10.6mm), 1.1'(12.8×9.6mm), 2/3'(8.8×6.6mm) |
| Angle | H: 34°0', V: 23°, D: 40° |
| Object Dimension at 200mm | H: 119.4mm, V: 89.5mm, D: 135.6mm |
| Distortion (TV) | <0.1% |
| Focus Distance (min) | 0.1m |
| Flange Back | 17.526mm in air |
| Back Focus | 29.6mm (min) |
| Filter Screw Size | M35.5×P0.5 |
| Front/Rear Effective Diameter | Front: φ20mm, Rear: φ19.2mm |
| Mount | C-Mount |
| Temperature Range | -10°C~50°C |
| Storage Temperature Range | -20°C~60°C |
| Wavelength | 800nm-1700nm |
