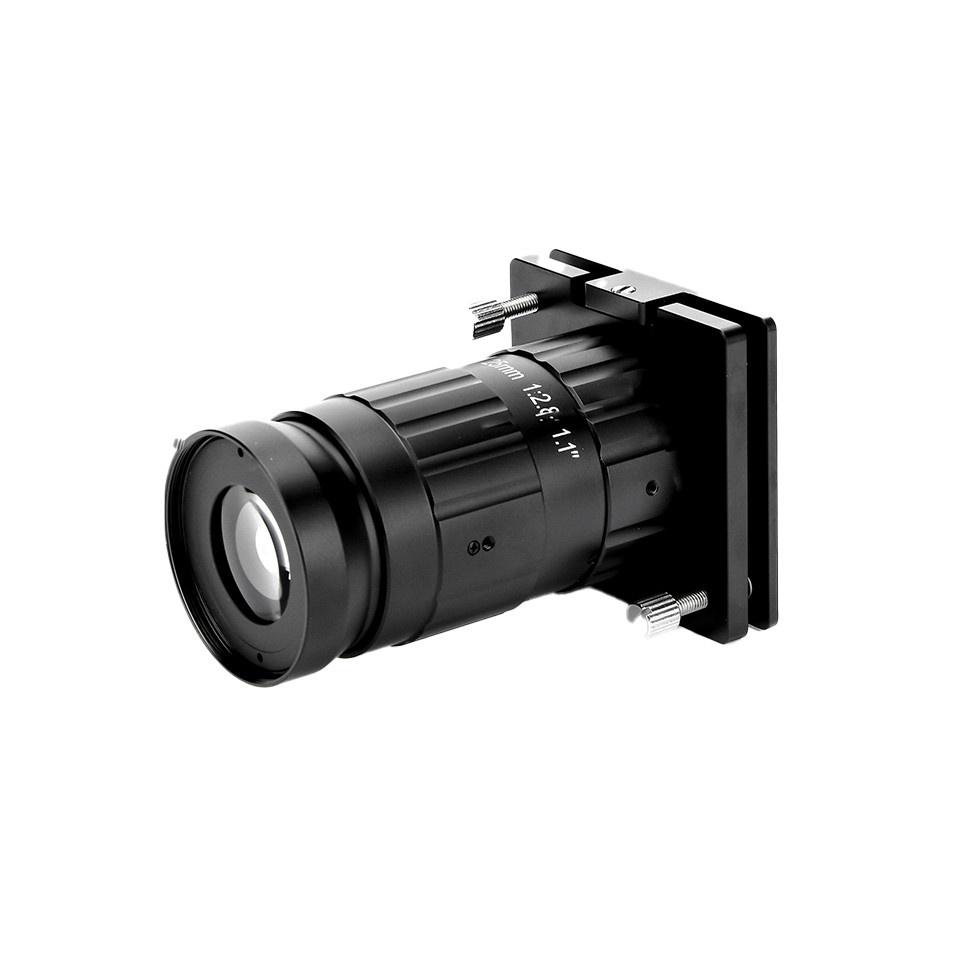

FA2516SM
The FA2516SM is a high-performance industrial lens designed for precision imaging applications. It features a 1.1-inch format, a focal length of 25mm, and an aperture range of f/1.8-22, making it suitable for capturing detailed images in various environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Focal Length | 25mm |
| Max Diameter (Ratio) | f=1.8-22 |
| Picture Size | 1.1'' (14.1x10.6mm), 1'' (12.8x9.6mm), 2/3'' (8.8x6.6mm) |
| Angle | H: 30.4°, V: 23°, D: 36.4° |
| Object Dimension at 200mm | H: 119.4mm, V: 89.9mm, D: 186.5mm |
| Distortion (TV) | <0.1% |
| Focus Distance (min) | 10mm |
| Flange Back | 17.526mm in air |
| Back Focus | 29.6mm |
| Filter Screw Size | M35.5xP0.5 |
| Front/Rear Effective Dia | Front Ø20mm, Rear Ø19.2mm |
| Mount | C-Mount |
| Temperature Range | -10°C~50°C |
| Storage Temperature Range | -20°C~60°C |
