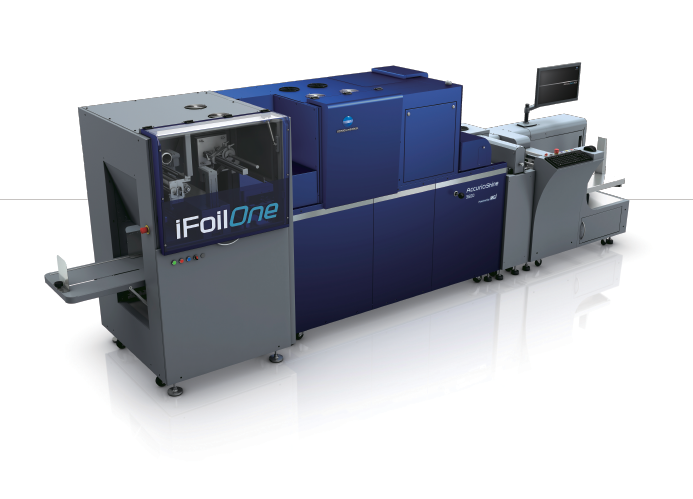

AccurioShine 3600 / iFoil One
The AccurioShine 3600 / iFoil One is a high-quality digital 3D UV and foil printing solution designed to enhance product value and competitiveness. It features advanced digital technology, an Artificial Intelligence SmartScanner, and an eco-friendly LED drying system, making it ideal for various applications such as business cards, packaging, and promotional materials.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Printing Technology | Drop-on-Demand (DoD) technology |
| Printing Head | Single-pass printing head |
| Coating Thickness | 21-116μm |
| Production Speed | 2077 A3 sheets/hour (21μm), 1260 A3 sheets/hour (116μm), 547 A3 sheets/hour (3D effect) |
| Minimum Format | 21×29.7cm |
| Maximum Format | 36.4×75cm |
| Maximum Thickness | 0.35cm |
| Supported Paper Weight | 135-450gsm |
| UV Lamp Life | 10,000 hours |
| Output Capacity | 1250 sheets (135gsm paper) |
| Dimensions (L×W×H) | 4.02×1.2×1.8m |
| Weight | 1068kg |
| Power Supply | 220-240V, 50/60Hz, 7.5kW |
| Operating Temperature | 18-30°C |
| Operating Humidity | 30-50% |
| Foil Width | 21-29.7cm |
| Foil Length | 36.4×75cm |
| Foil Thickness | 116μm |
| Foil Output Capacity | 1250 sheets (135gsm paper) |
| Foil Weight | 504kg |
| Foil Temperature Range | 80-130°C |
