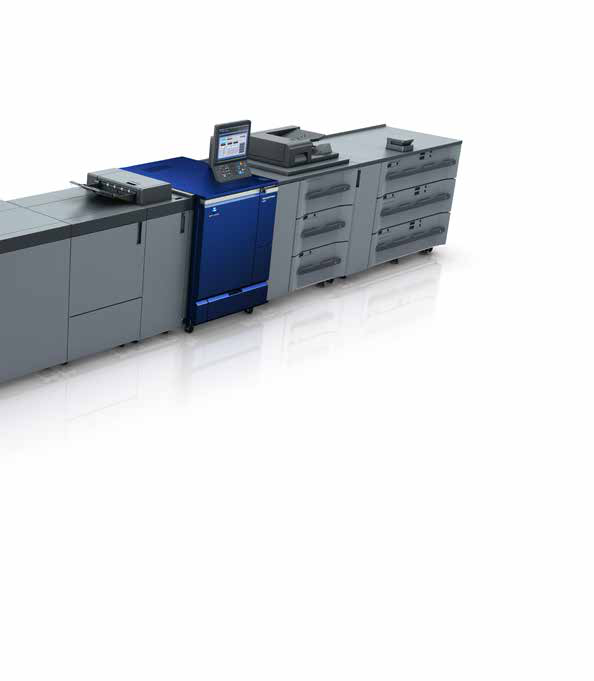

AccurioPress C7100/C7090
AccurioPress C7100/C7090 is a high-performance color production digital printing system designed to enhance productivity and deliver exceptional image quality. It supports a wide range of paper weights and sizes, making it suitable for various printing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Printing Resolution | 3600×2400dpi |
| Printing Speed (A4) C7100 | 100 pages/min |
| Printing Speed (A4) C7090 | 90 pages/min |
| Printing Speed (A3) C7100 | 57 pages/min |
| Printing Speed (A3) C7090 | 51 pages/min |
| Monthly Print Volume (A4) C7100 | 1.8 million pages |
| Monthly Print Volume (A4) C7090 | 1.62 million pages |
| Paper Weight | 52-450g/m² |
| Max Paper Size | 330.2×487.7mm |
| Min Paper Size | 100×139.7mm |
| Memory | 5GB (C7100), 8GB (C7090) |
| Hard Disk | 1TB |
| Dimensions | 1,100×1,138×1,041mm |
| Weight | 335kg |
| Image Processing Technology | S.E.A.D. X |
| Toner Technology | Simitri V |
| Supported Paper Size | A3, A4, SRA3, B4, B5, etc. |
| Duplex Printing | Yes |
| Long Paper Printing | Up to 1,300mm |
| Envelope Printing | Yes |
| Variable Data Printing | Yes |
| Image Quality Optimizer | IQ-501 |
| Print Controller Type | EFI |
| Print Controller Type | CREO |
| Print Controller Type | Konica Minolta |
| Supported File Formats | PDF, TIFF, PPML, etc. |
| Power Requirements | AC220-240V, 50Hz, 60Hz |
| Max Paper Capacity | 15,150 sheets |
| Number of Paper Trays | 11 trays |
| Vacuum Paper Feeding | Yes |
| Automatic Quality Recognition | Yes |
| Automatic Duplex Alignment | Yes |
| Automatic Characteristic File Generation | Yes |
| Real-time Adjustment | Yes |
| Cleaning Function | Yes |
| Image Density Control Technology | Yes |
| Durability | Enhanced durability with dual drive mechanism |
