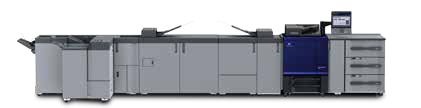

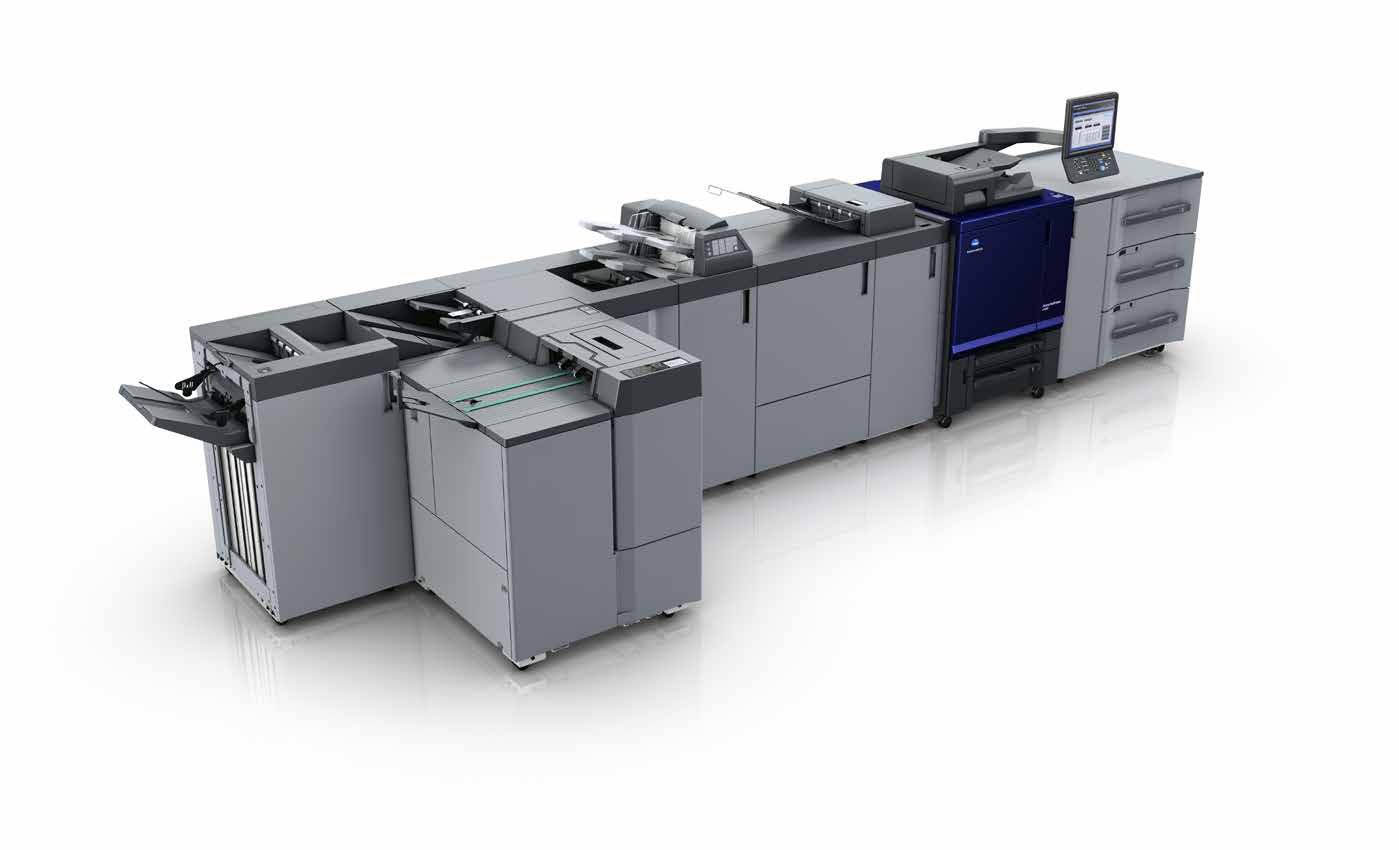

AccurioPress C4080/C4070
AccurioPress C4080/C4070 is a high-performance digital color production printing system designed for professional printing environments, offering exceptional image quality, versatility, and automation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Print Resolution | 3600×2400dpi |
| Print Speed C4080 | 81ppm (A4) |
| Print Speed C4070 | 71ppm (A4) |
| Paper Size | 100×139.7mm-330×487mm |
| Paper Weight | 62-360g/m² |
| Max Paper Size | 330×1300mm |
| Image Controller IC-609 CPU | Intel Core i5 6500 |
| Image Controller IC-609 Memory | 16GB |
| Image Controller IC-609 Storage | 1TB |
| Image Controller IC-317 CPU | Intel Core i5 6500 |
| Image Controller IC-317 Memory | 8GB |
| Image Controller IC-317 Storage | 1TB |
| Image Controller IC-419 CPU | Intel Pentium G4400 |
| Image Controller IC-419 Memory | 4GB |
| Image Controller IC-419 Storage | 500GB |
| Supported Operating Systems | Windows 8/10, Windows Server 2012/R2/2016/2019, Mac OS X 10.11-15 |
| Power Requirements | 220V, 25A, 50Hz/60Hz |
| Device Dimensions | 800×903×1076mm |
| Device Weight | 931kg |
