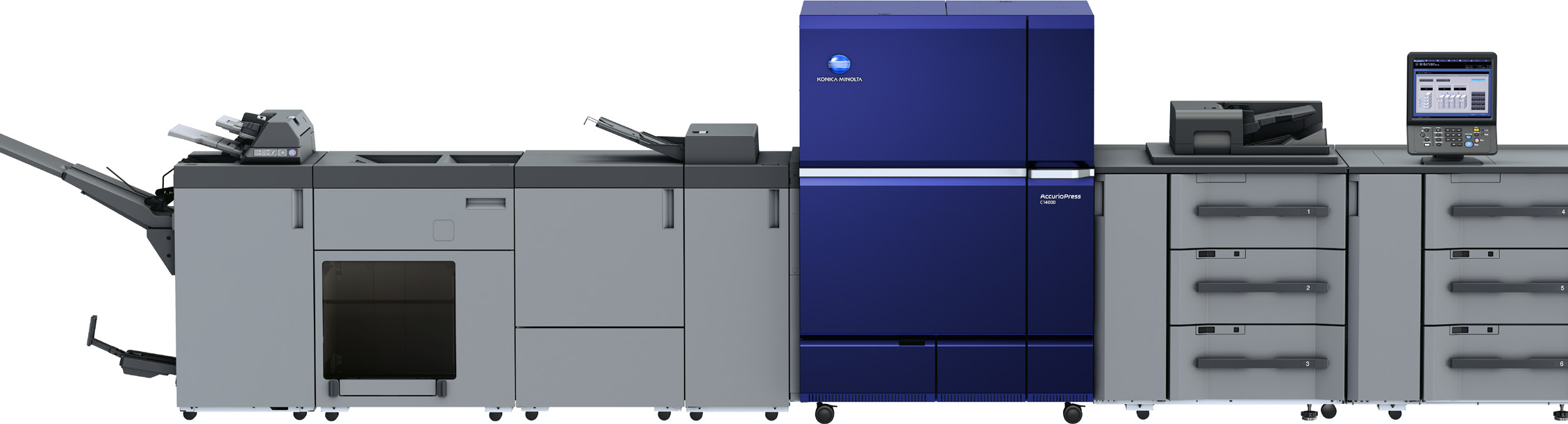

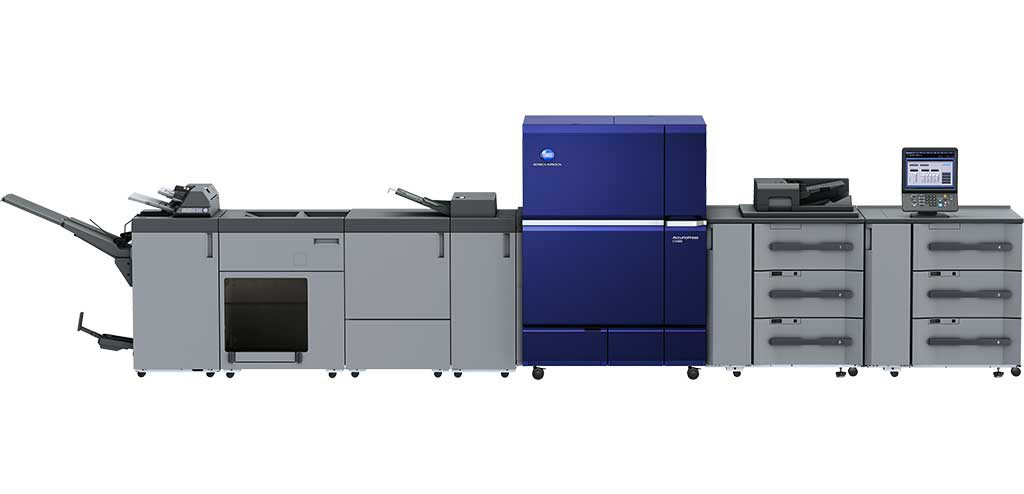

AccurioPress C14000/C12000
AccurioPress C14000/C12000 are high-performance digital production printing systems designed to enhance efficiency, reduce costs, and support business growth.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Type | AccurioPress C14000, AccurioPress C12000 |
| Resolution | 3600×2400dpi |
| Print Format | 52-450g/m², 330×487.7mm-100×139.7mm |
| Print Speed | 140 pages/min (C14000), 120 pages/min (C12000) |
| Monthly Print Volume | 250,000 pages (C14000), 220,000 pages (C12000) |
| Memory | 16GB |
| Hard Disk | 8TB |
| SSD | 128GB |
| Paper Size | 330×487.7mm, 330×1,300mm |
| Paper Weight | 52-450g/m² |
| Maximum Paper Capacity | 14,140 sheets |
| Device Weight | Approx. 650kg |
| Image Resolution | 3600dpi×2400dpi |
| Image Processing Technology | Simitri V, S.E.A.D.X |
| Controller Type | IC-610 Konica Minolta, IC-318 EFI Fiery, IC-319 EFI Fiery, IC-316 Creo |
