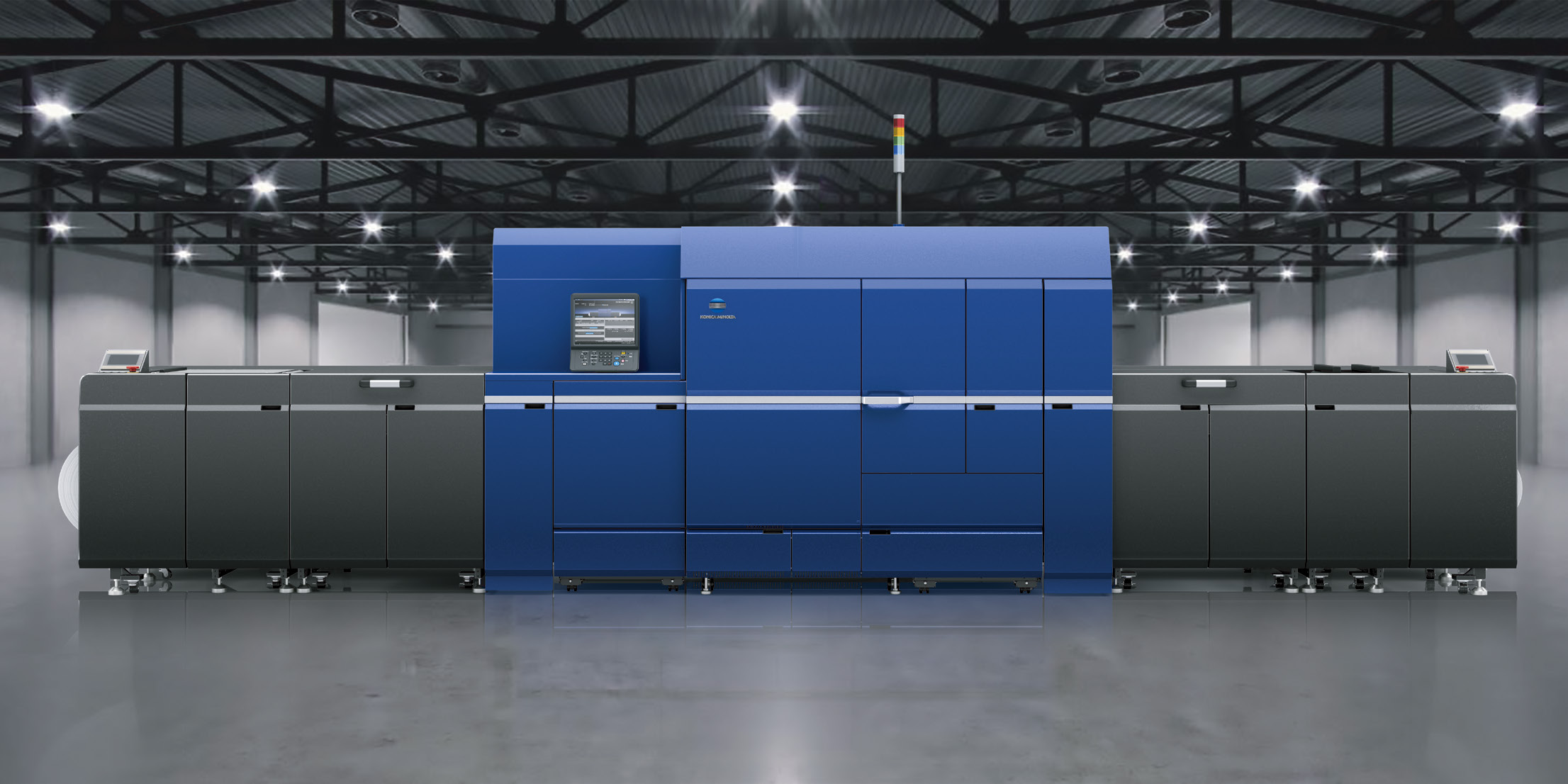

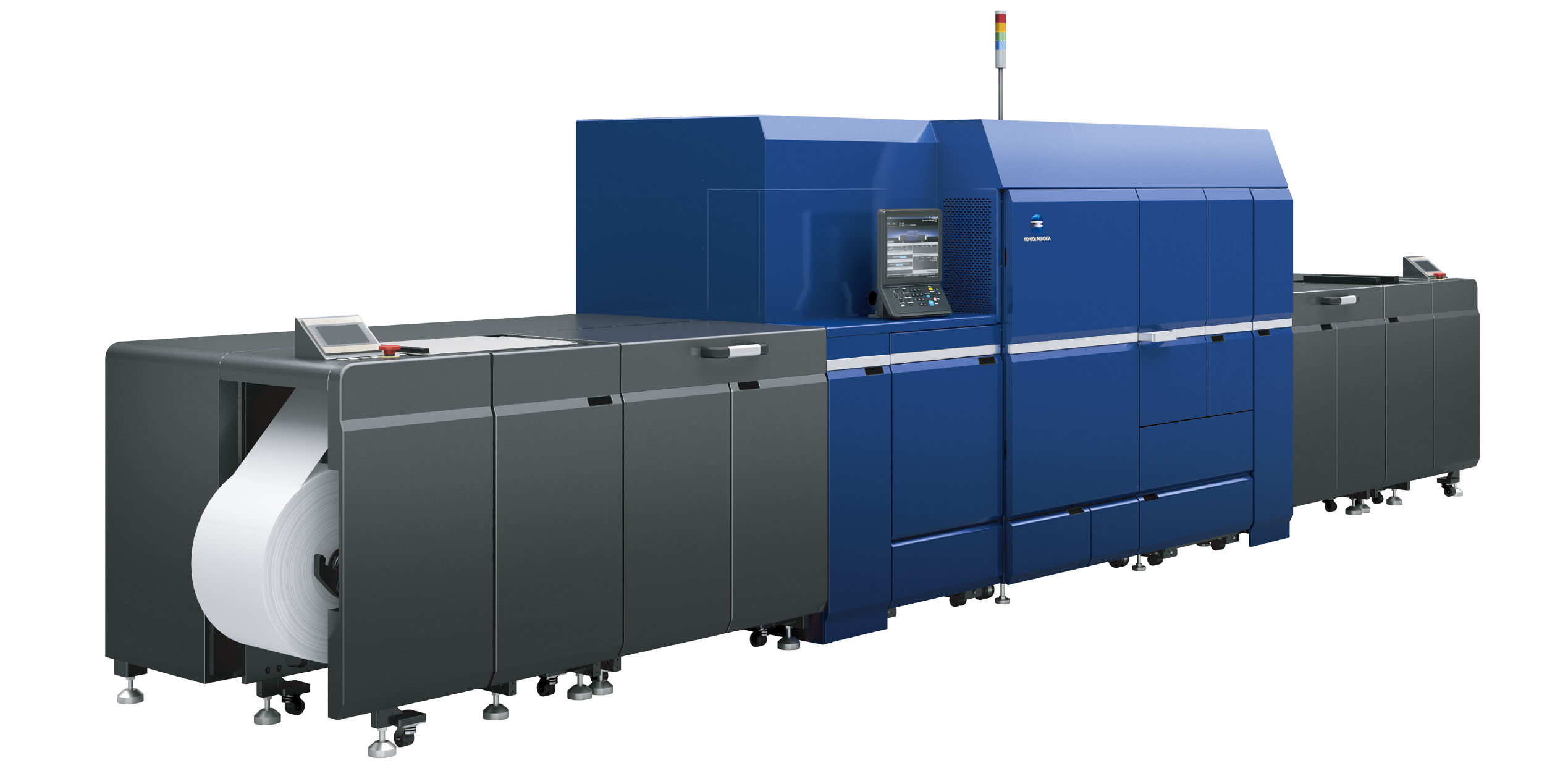

AccurioLabel 400
AccurioLabel 400 is a high-performance digital label printing system designed to meet the growing demand for short-run and diversified label printing. It offers exceptional productivity, image quality, and material compatibility.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Imaging Type | Dry toner electrophotography |
| Color Mode | CMYK |
| Color Mode | White |
| Resolution | Main scan: 3600dpi (8bit), Sub scan: 2400dpi (8bit) |
| Gradation | 256 levels (8bit) |
| Paper Width | 330mm (standard), 250 to 330mm (requires optional media expansion unit) |
| Max Print Image Width (Long Axis) | 320mm (12.95in) |
| Media Thickness Range | 96 to 270μm (81 to 256g/m²) |
| Applicable Materials | Paper, PP, PET (coated and uncoated), synthetic materials, thermal paper |
| Printing Speed | 39.9m/min (CMYK); 20m/min (CMYK+White); 34.2, 30 or 15m/min depending on media type |
| Device Dimensions (LxWxH) | 7,360 x 1,538 x 1,900mm |
| Device Footprint | (LxW) 9,700 x 3,200mm (including optional units) |
| Weight | 3.5t |
| Max Material Diameter for Unwinder/Rewinder | 1000mm |
| Core | 3in (76mm) |
| Controller | IC-611 |
| Controller (Creo Controller) | IC-320L |
| Power and Air Supply | 2 x 220V, 25A, 50-60Hz; 1 x 220V, 15A, 50-60Hz; 1 x 220V, 3A, 50-60Hz; 1 x 380V, 38A, 50-60Hz; 6bar, min. 20l/min, 8mm outer diameter |
