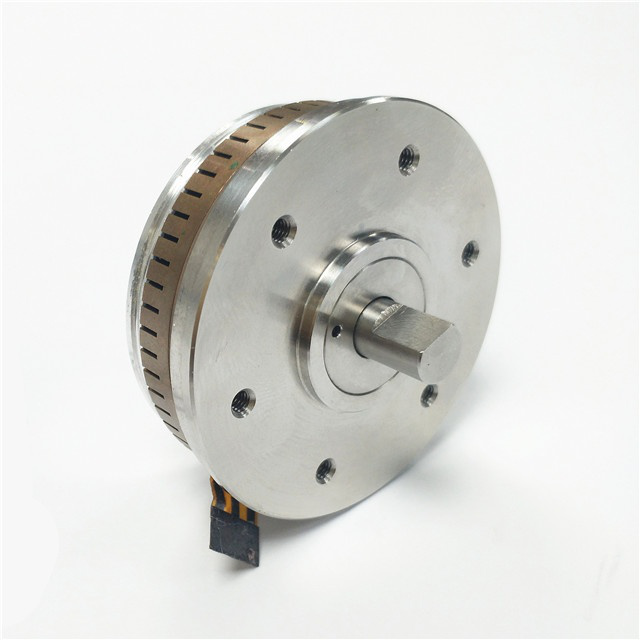

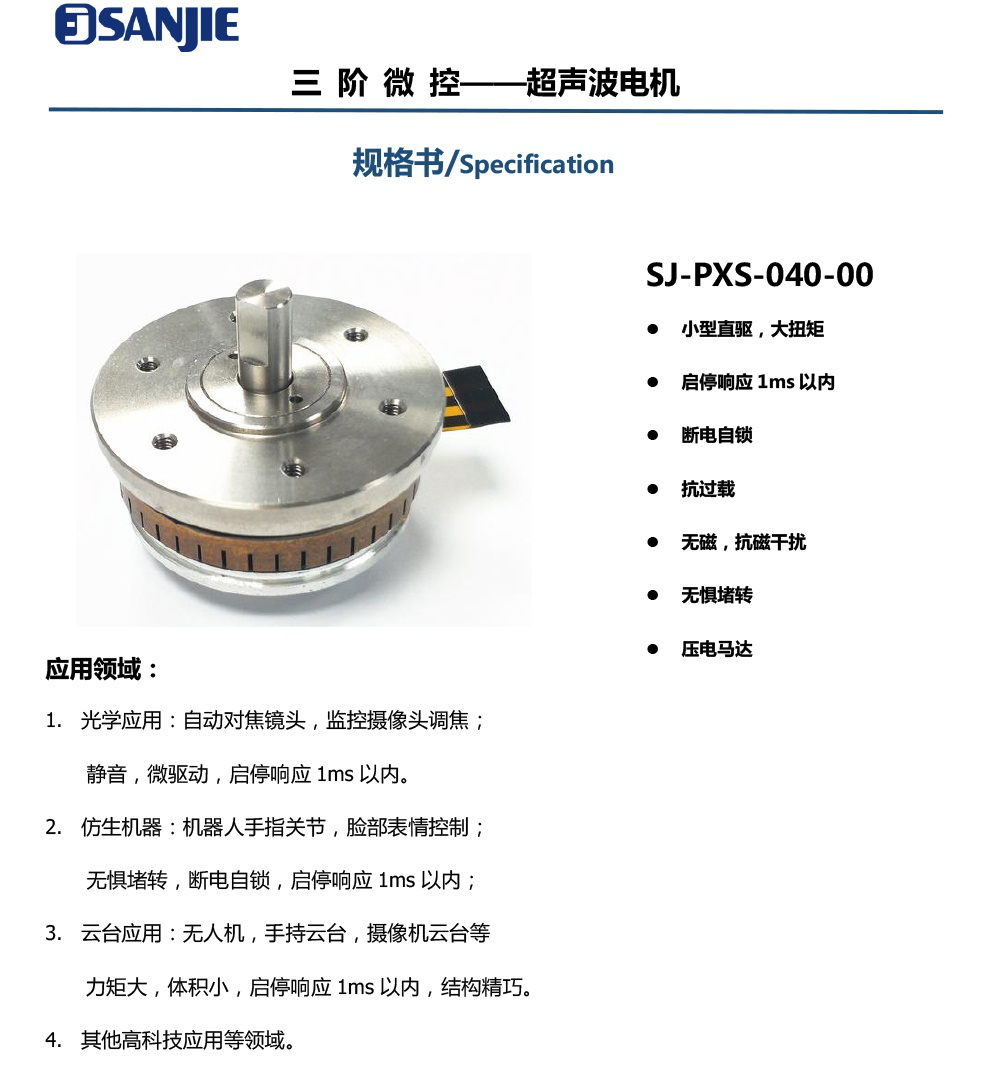

SJ-PXS-040-00
The SJ-PXS-040-00 is a compact ultrasonic motor designed for precise micro-control applications. It features a small size, large torque, and rapid response time, making it ideal for high-tech fields.
Save to Favorites
Overview

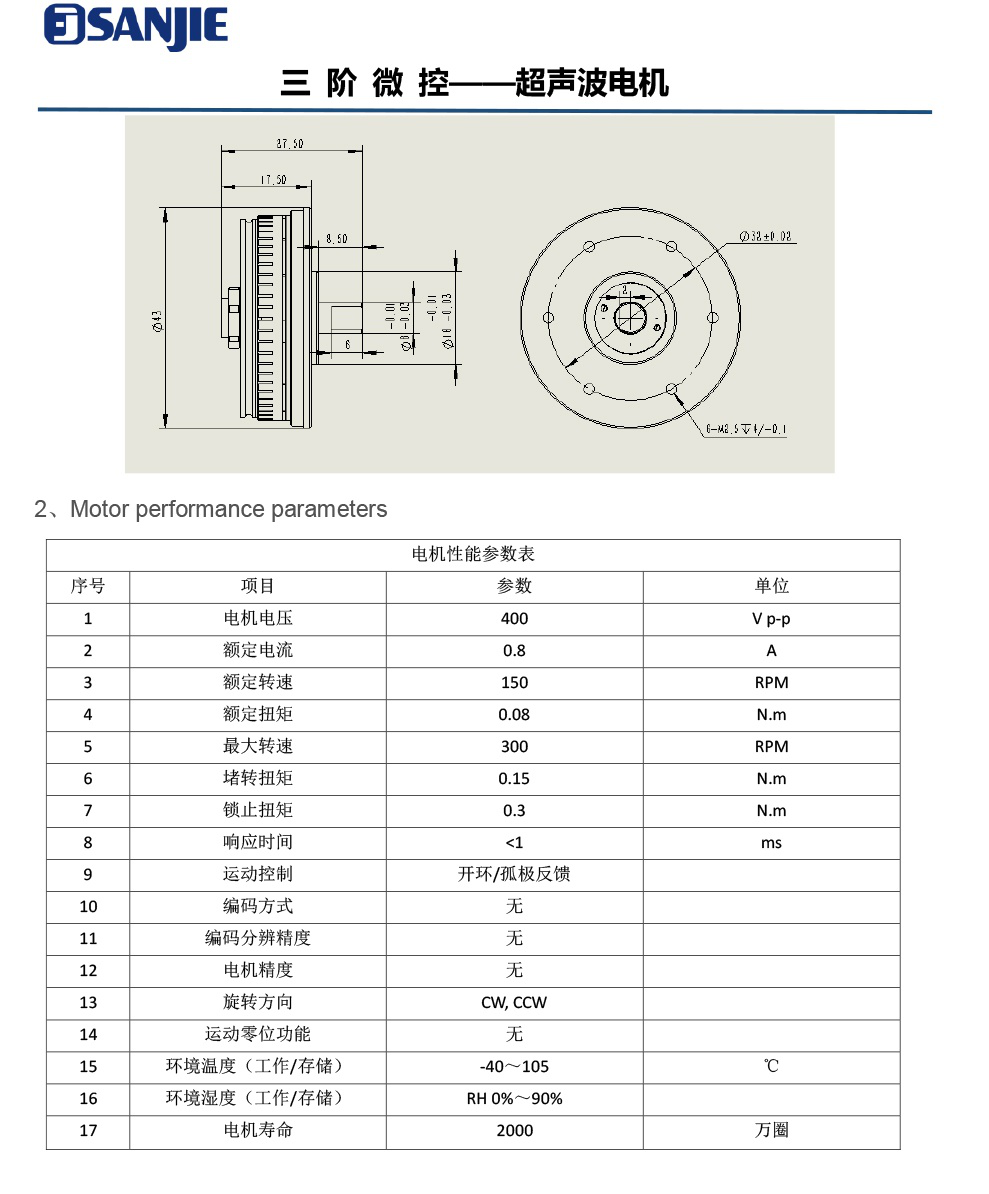

Specifications
| Parameter | Value |
|---|---|
| Motor Voltage | 400Vpp |
| Rated current | 0.8A |
| Rated Speed | 150RPM |
| Rated Torque | 0.08N·m |
| Maximum Speed | 300RPM |
| Stall Torque | 0.15N·m |
| Locking Torque | 0.3N·m |
| Response Time | <1ms |
| Motion Control | Open loop/feedback |
| Encoding Method | None |
| Encoding Resolution | None |
| Motor Precision | None |
| Rotation Direction | CW |
| Rotation Direction | CCW |
| Zero Position Function | None |
| Operating/Storage Temperature | -40~105°C |
| Operating/Storage Humidity | RH 0%~90% |
