Home All Products Motion Control Motors and Drives SJ-PXS-024-00

Motors and Drives

SJ-PXS-024-00

Supplier

Sjusm

Part Number

SJ-PXS-024-00

Overview

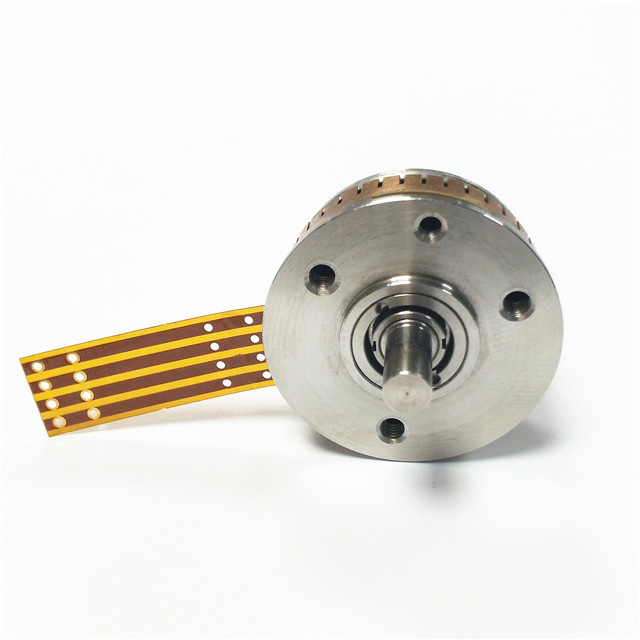

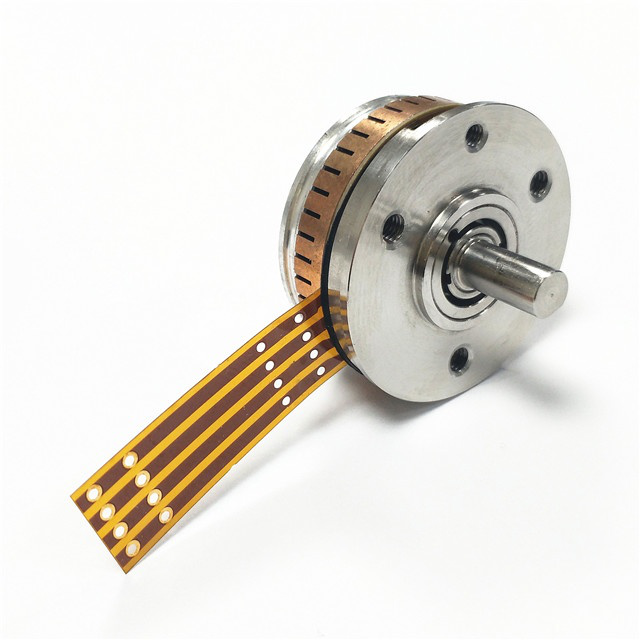

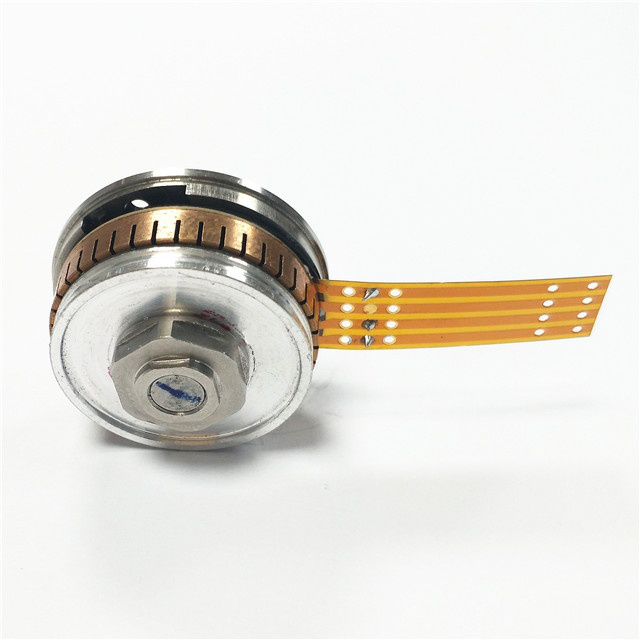

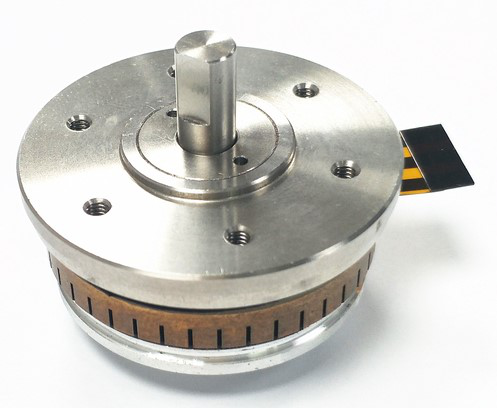

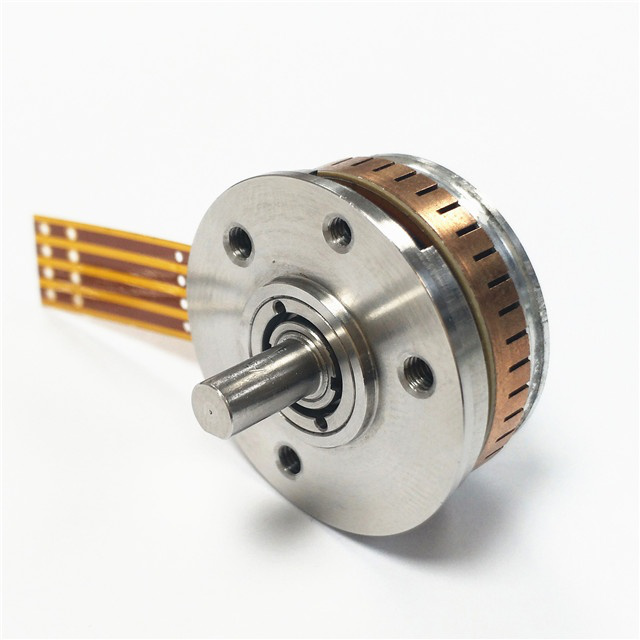

The SJ-PXS-024-00 is a compact ultrasonic motor with a large torque, designed for precise and efficient motion control in various applications.

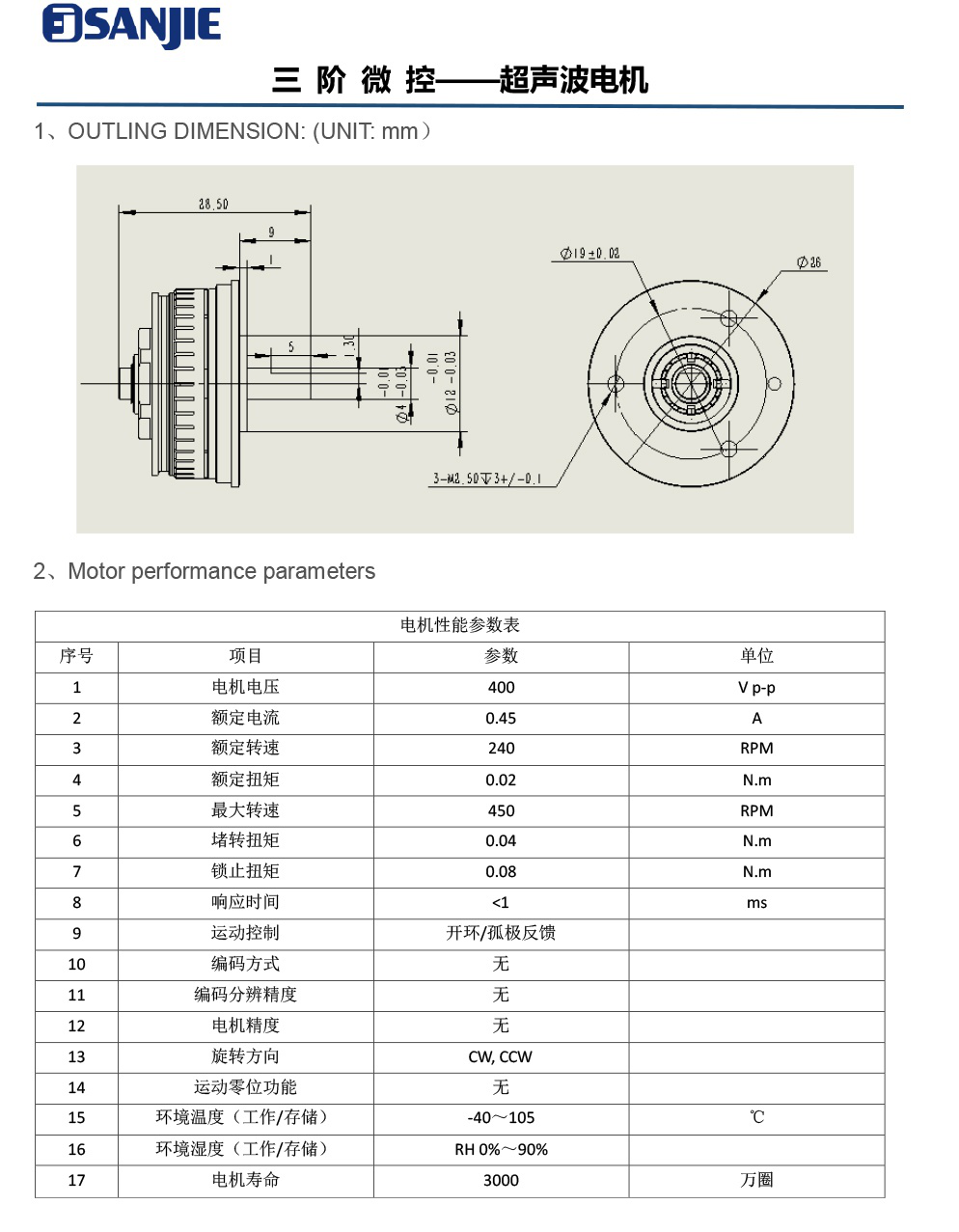

Specifications

Parameter	Value
Motor Voltage	400V-p-p
Rated current	0.45A
Rated Speed	240RPM
Rated Torque	0.02N.m
Maximum Speed	450RPM
Stall Torque	0.04N.m
Lock Torque	0.08N.m
Response Time	<1ms
Motion Control	Open loop/Polar feedback
Encoding Method	None
Encoding Resolution	None
Motor Precision	None
Rotation Direction	CW
Rotation Direction	CCW
Zero Position Function	None
Operating/Storage Temperature	-40~105°C
Operating/Storage Humidity	RH 0%~90%
Motor Lifetime	3000 million revolutions

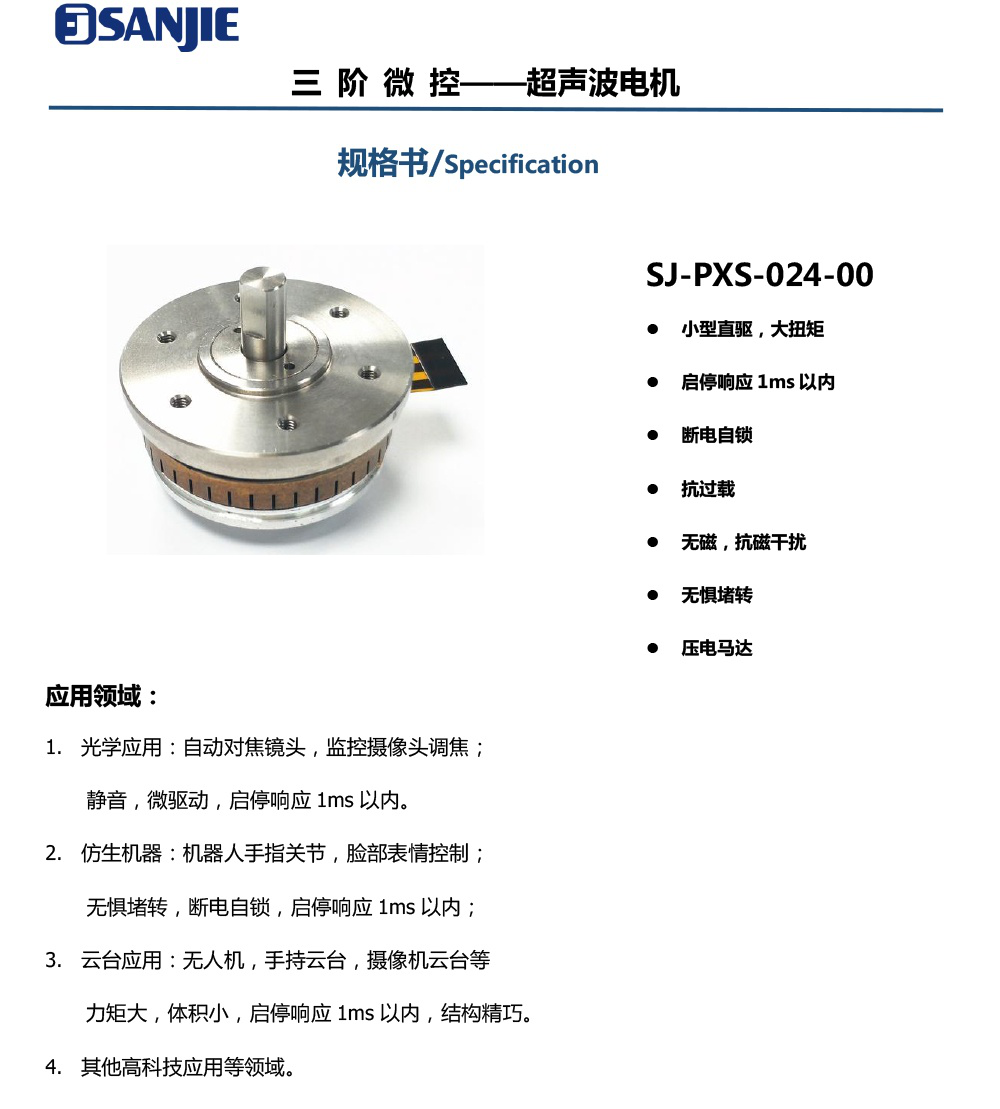

Applications

1. Optical applications: Automatic focusing for lenses and surveillance camera adjustments; silent operation, micro-driving, start-stop response within 1ms. 2. Bionic robots: Finger joints and facial expression control; no magnetic interference, self-locking when powered off, start-stop response within 1ms. 3. Cloud platforms: Drones, handheld platforms, and camera cloud platforms; high torque, small size, start-stop response within 1ms, and sophisticated structure. 4. Other high-tech applications.

Key Features

1. Compact design with large torque 2. Start-stop response within 1ms 3. Self-locking when powered off 4. Anti-overload 5. Non-magnetic, resistant to magnetic interference 6. Frictionless rotation 7. Piezoelectric drive

Datasheet

Product Datasheet

PDF

Download

Supplier Information

Sjusm

View Supplier →

<p>Founded in September 2015, Shenzhen Sanjie Micromotion Industry Co., Ltd. is located in Bao'an District, Shenzhen. The company's ultrasonic motor products are positioned for small high-precision drive and control component applications. Based on in-depth research on ultrasonic motors, it provides integrated services including motor structure, drive power, motion control, and product introduction. In 2019, it was recognized as a national high-tech enterprise and passed ISO9001 and intellectual property standards certification, holding 25 utility model patents, 15 invention patents, and 5 software copyrights. The company has mature technical solutions for micro ultrasonic motors, micro precision drives, micro high-precision encoder combinations, shaft output schemes, and hollow off-axis designs, with 12 different models of ultrasonic motors and matching precision drive power supplies. It has cooperative projects and actual application cases in optics, precision machinery, aerospace, robotics, biomedical, consumer electronics, and other fields.</p>
