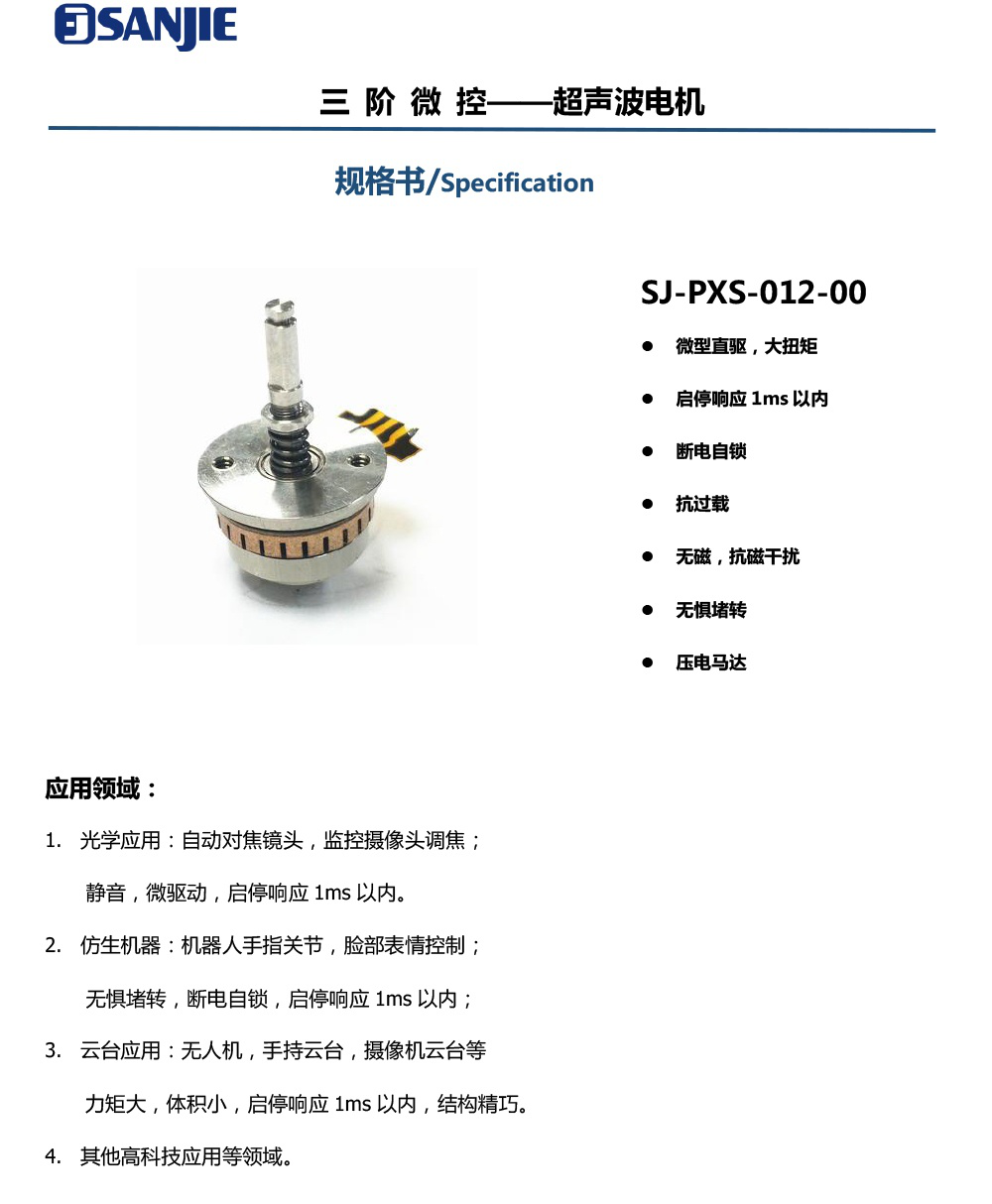

SJ-PXS-012-00

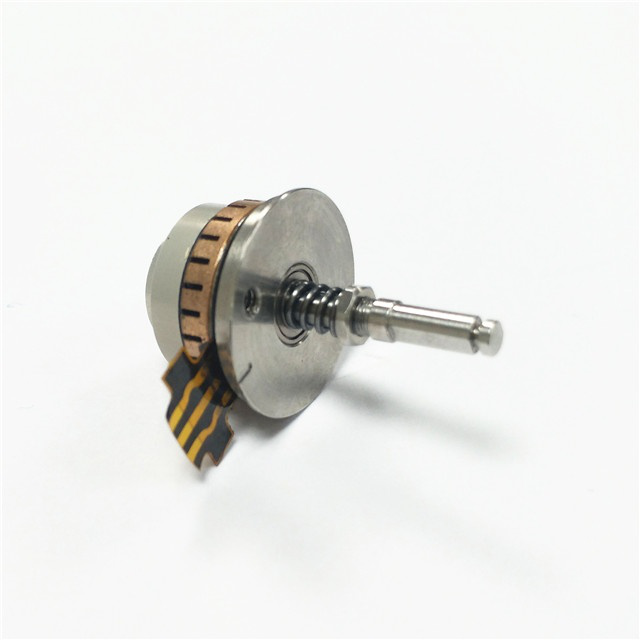

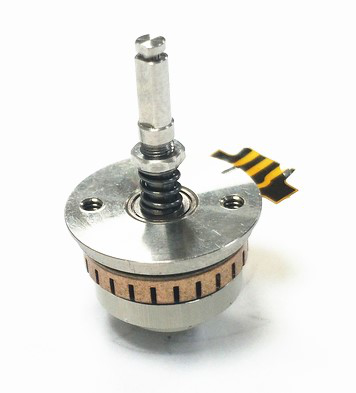

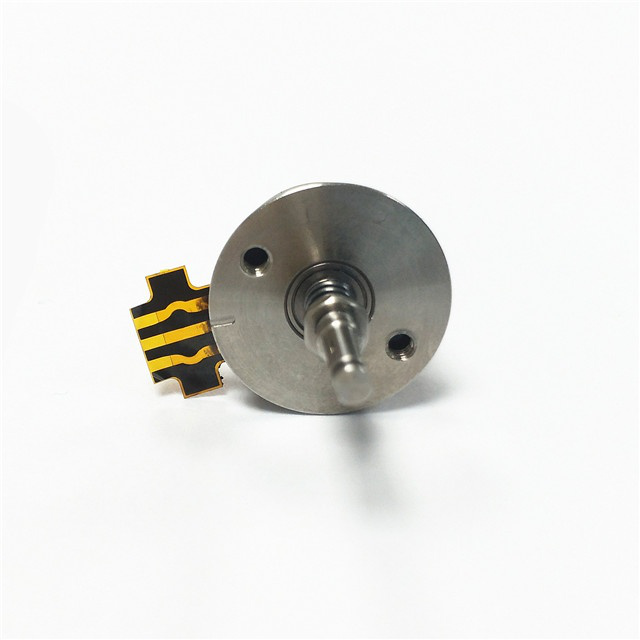

The SJ-PXS-012-00 is a micro ultrasonic motor with high torque and precision. It features a compact design, fast response time, and is suitable for various applications requiring precise control and quiet operation.
Save to Favorites
Overview

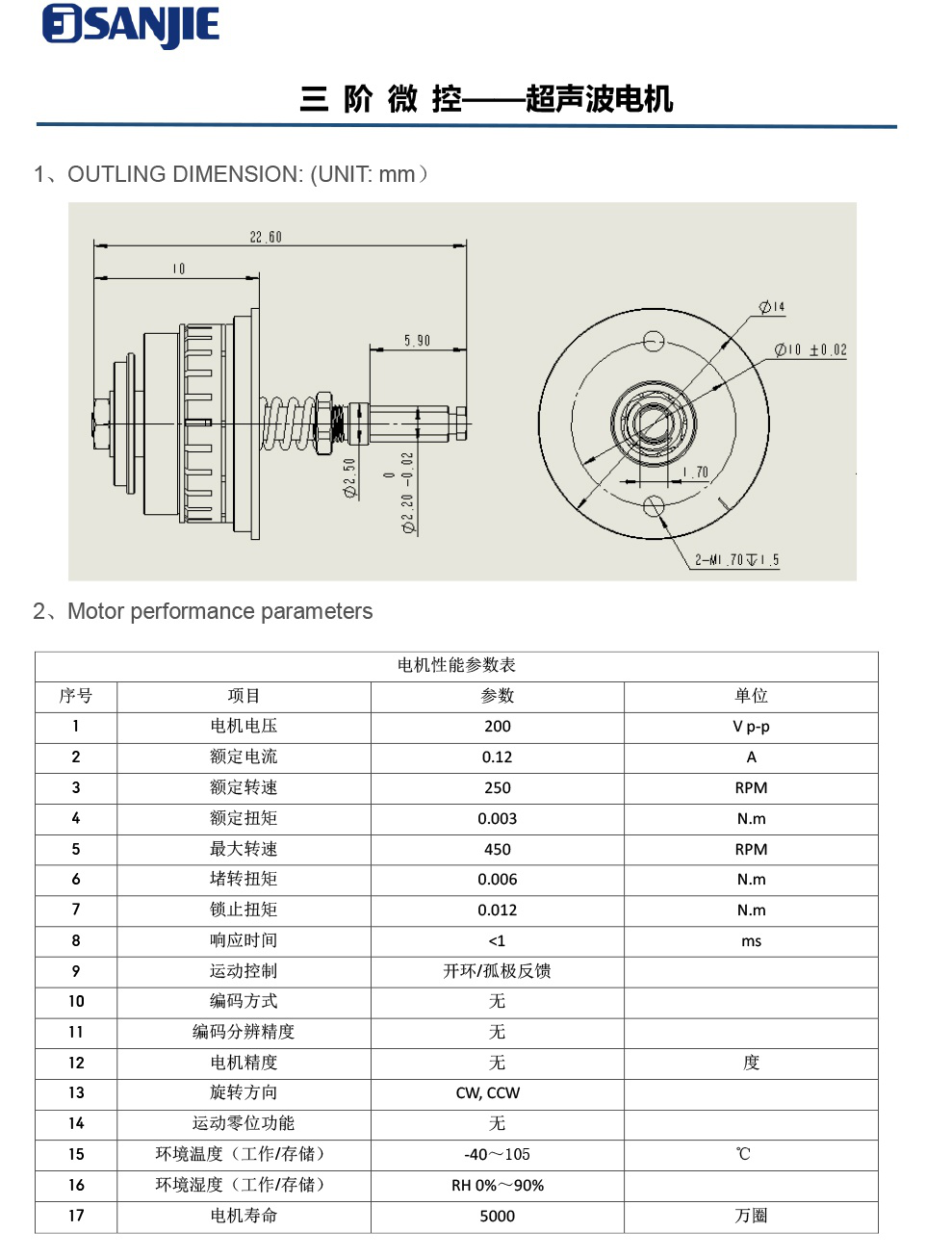

Specifications
| Parameter | Value |
|---|---|
| Motor Voltage | 200Vpp |
| Rated current | 0.12A |
| Rated Speed | 250RPM |
| Rated Torque | 0.003Nm |
| Maximum Speed | 450RPM |
| Stall Torque | 0.006Nm |
| Locking Torque | 0.012Nm |
| Response Time | <1ms |
| Motion Control | Open loop/pole feedback |
| Encoding Method | None |
| Encoding Resolution | None |
| Motor Precision | None |
| Rotation Direction | CW |
| Rotation Direction | CCW |
| Zero Position Function | None |
| Operating/Storage Temperature | -40~105°C |
| Operating/Storage Humidity | RH 0%~90% |
| Motor Life | 5000 million cycles |
