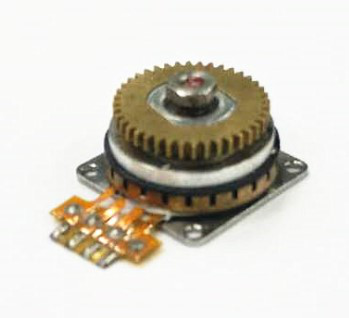

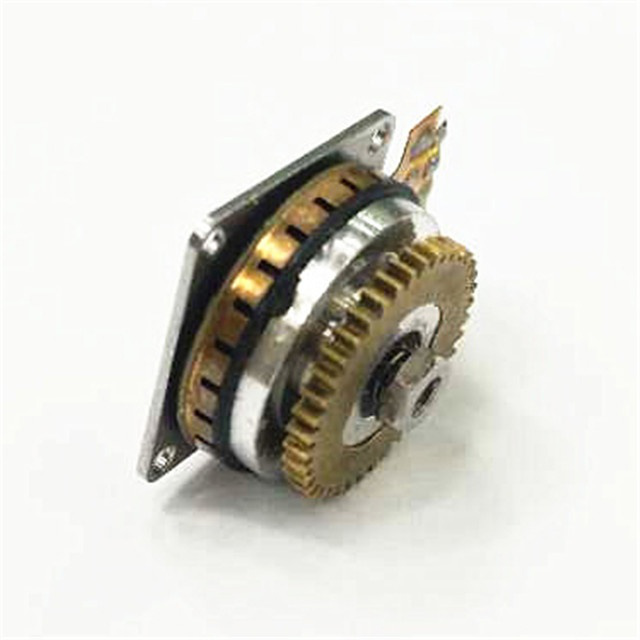

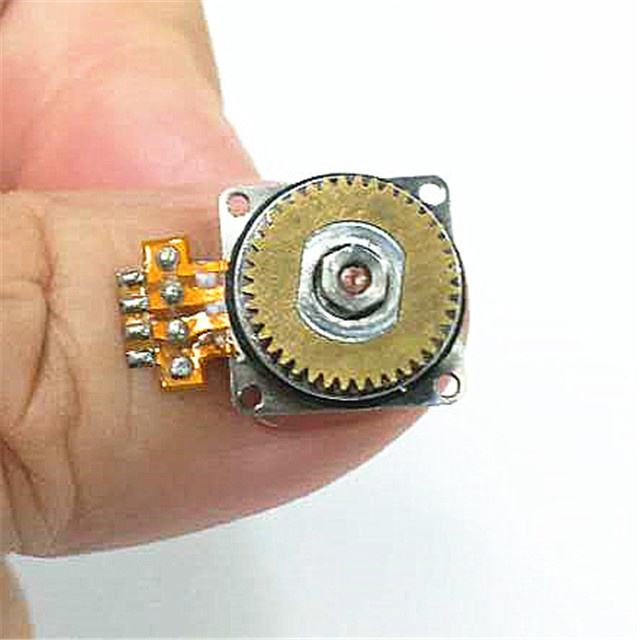

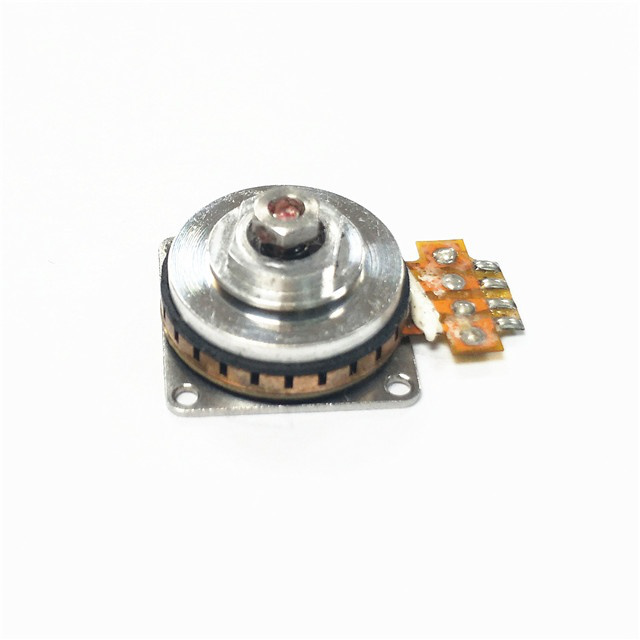

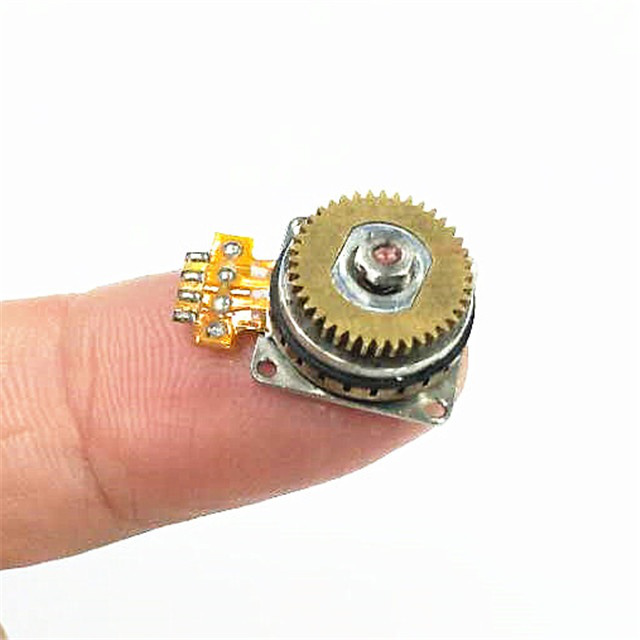

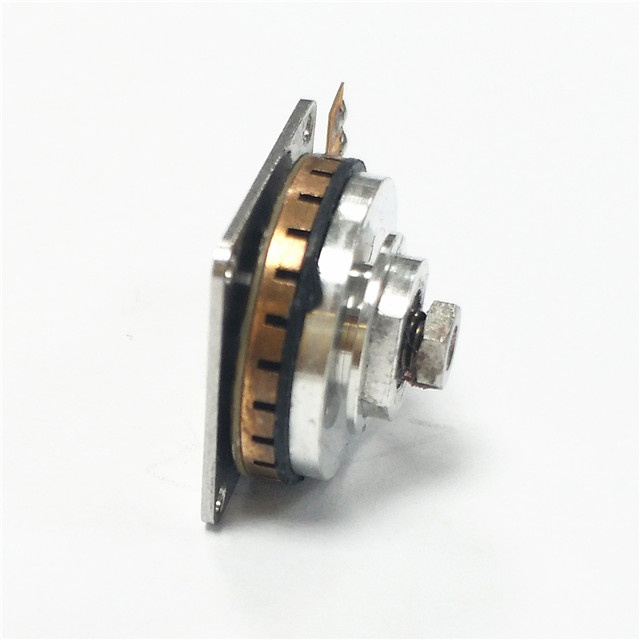

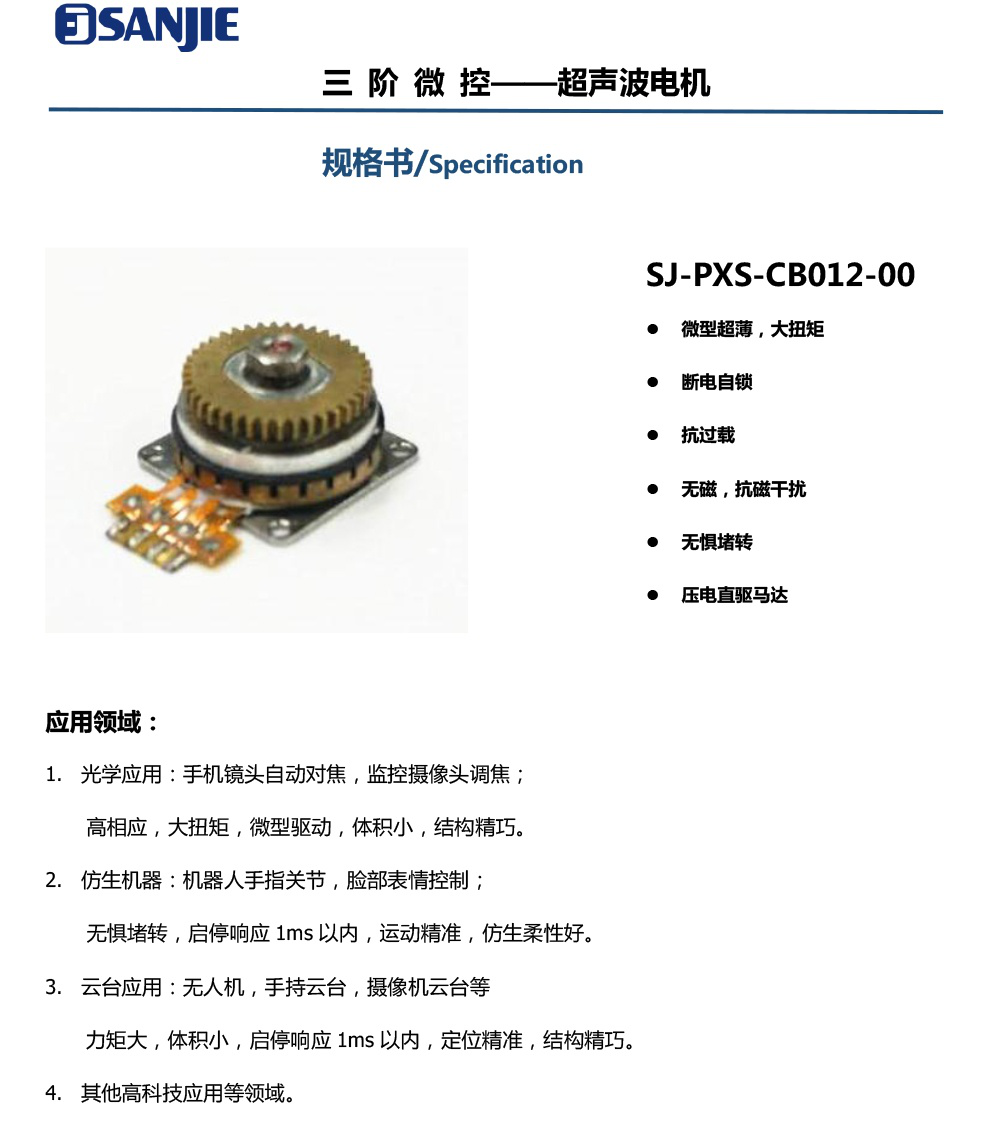

SJ-PXS-CB012-00
The SJ-PXS-CB012-00 is a miniature ultrasonic motor with a large torque, designed for precision applications requiring high responsiveness and compact size.
Save to Favorites
Overview

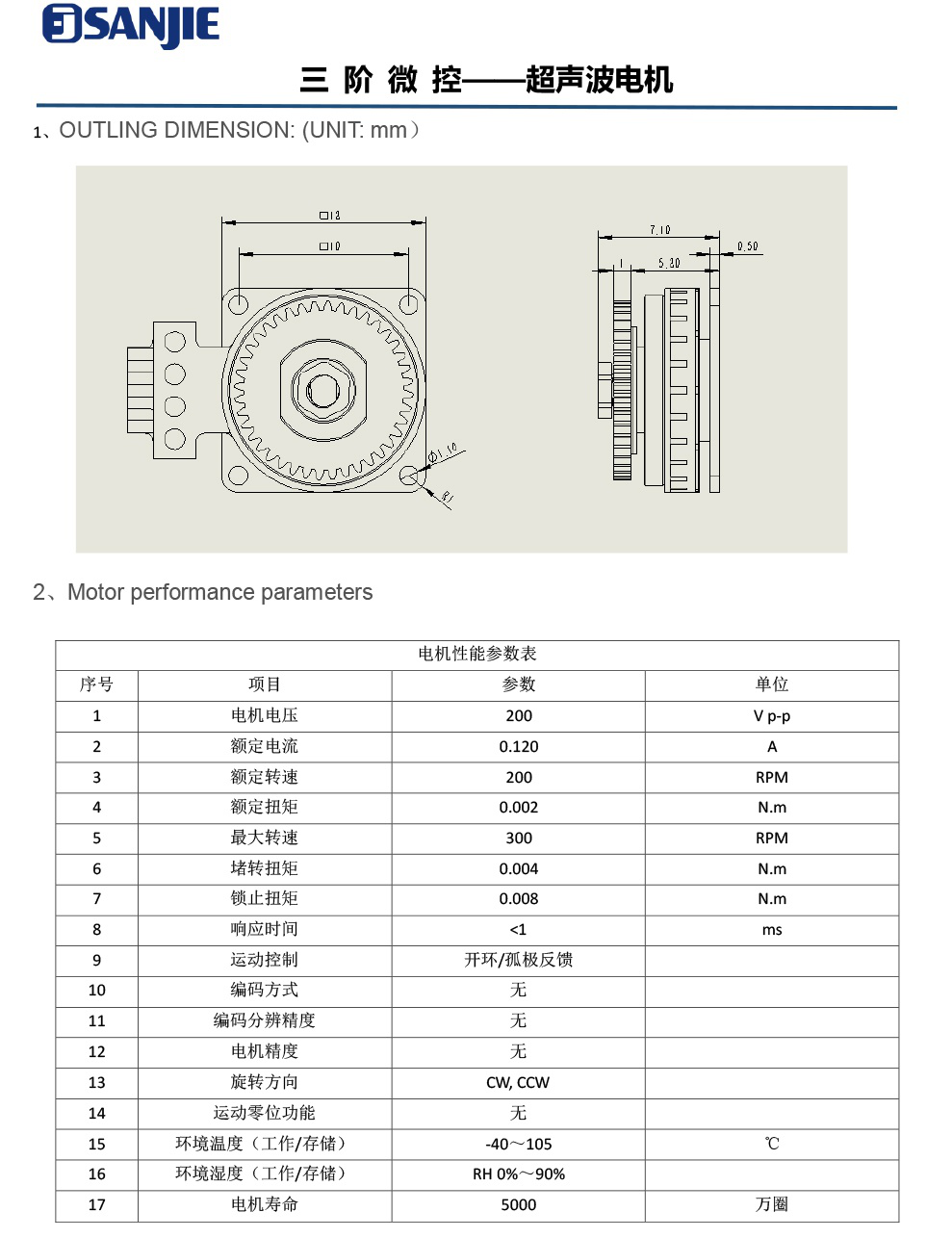

Specifications
| Parameter | Value |
|---|---|
| Motor Voltage | 200Vp-p |
| Rated current | 0.120A |
| Rated Speed | 200RPM |
| Rated Torque | 0.002Nm |
| Maximum Speed | 300RPM |
| Stall Torque | 0.004Nm |
| Lock Torque | 0.008Nm |
| Response Time | <1ms |
| Motion Control | Open loop/Closed loop feedback |
| Encoding Method | None |
| Encoding Resolution | None |
| Motor Accuracy | None |
| Rotation Direction | CW |
| Rotation Direction | CCW |
| Zero Position Function | None |
| Ambient Temperature (Operating/Storage) | -40~105°C |
| Ambient Humidity (Operating/Storage) | RH 0%-90% |
