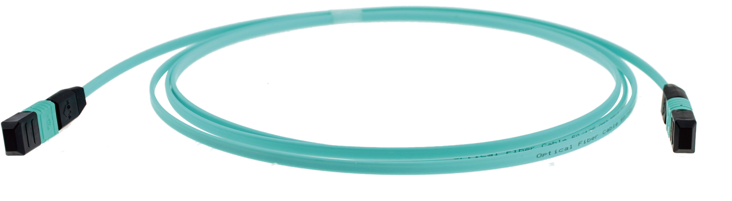

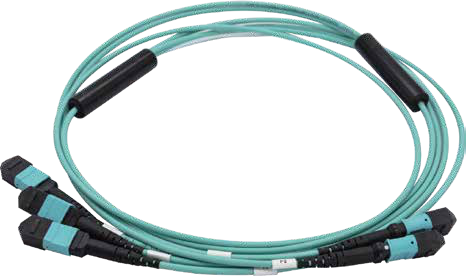

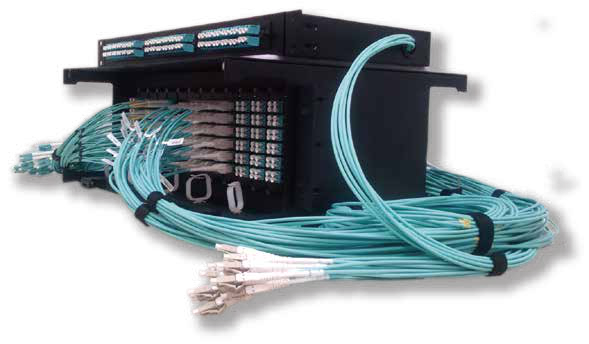

MTP Cabling System
Gigalight's MTP cabling system offers high-density fiber optic solutions for data centers, supporting efficient cabling management and high-speed data transmission.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Count | 8, 12, 16, 24 |
| Connector Type | MTP |
| Connector Type | LC |
| Connector Type | VSFF |
| Insertion Loss | ≤0.35dB |
| Return Loss | ≥60dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Fiber Type | MMF |
| Fiber Type | SMF |
| Length | Customized |
| Jacket Material | LSZH |
| Jacket Material | PVC |
| Transmission Rate | 10G, 40G, 100G |
Applications
Key Features
Datasheet
Supplier Information
