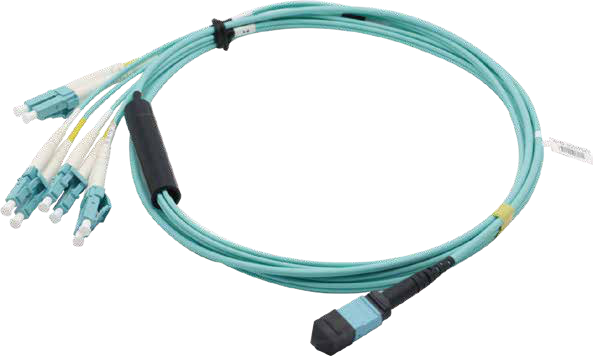

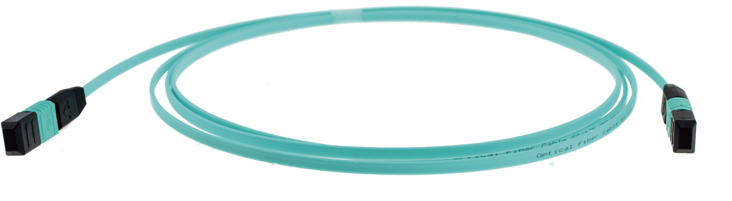

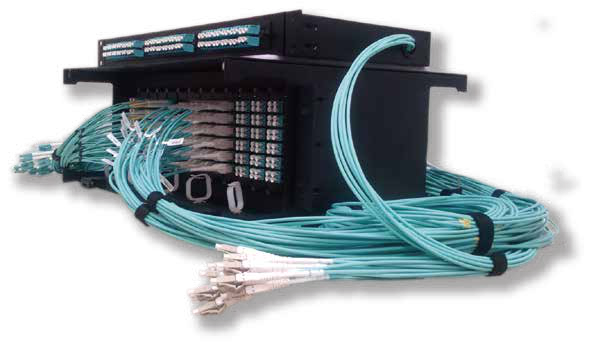

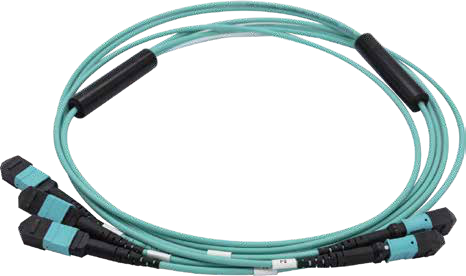

MTP Cabling System

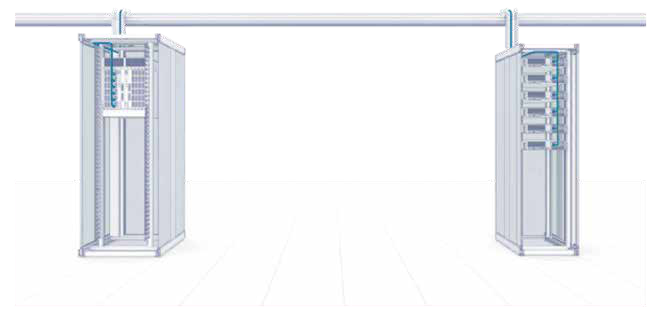

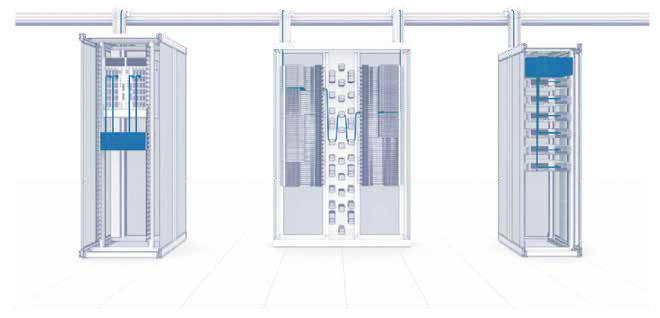

Gigalight's MTP cabling system provides high-density fiber optic solutions for data centers, offering efficient cabling management and reliable performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Count | 8, 12, 24 |
| Connector Type | MTP |
| Insertion Loss | ≤0.35dB |
| Return Loss | ≥60dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Fiber Type | MMF |
| Fiber Type | SMF |
| Length | 1m, 2m, 3m, 5m, 10m, customizable |
Applications
Key Features
Datasheet
